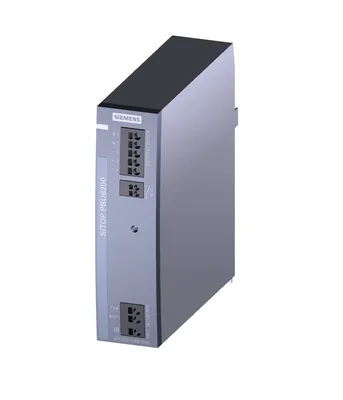

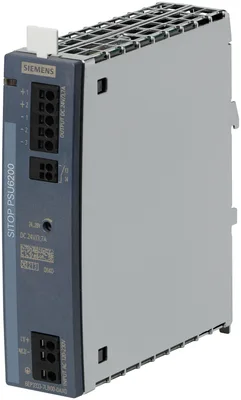

Siemens 6EP3333-7LB00-0AX0

SITOP PSU6200 3.7 A NEC class II stabilized power supply input: 120 - 240 V AC (120 - 240 V DC) output: 24 V DC/3.7 A

SiemensMFR # 6EP3333-7LB00-0AX0SKU # YLSHOO3MWANH3VJ

product brand nameSITOP

product type designationPSU6200

product designationPower supply SITOP PSU6200

type of current supply24 V/3.7 A

type of the power supply network1-phase AC or DC

phase number1

Have questions?Chat on WhatsApp

About This Product

SITOP PSU6200 3.7 A NEC class II stabilized power supply input: 120 - 240 V AC (120 - 240 V DC) output: 24 V DC/3.7 A

Siemens 6EP3333-7LB00-0AX0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU6200

product designationPower supply SITOP PSU6200

type of current supply24 V/3.7 A

input

type of the power supply network1-phase AC or DC

phase number1

voltage curve at inputAC/DC

minimum rated value120 V

maximum rated value240 V

initial value85 V

full-scale value264 V

supply voltage at DC120 ... 240 V

input voltage at DC99 ... 275 V

at 50 Hz240 V

at 60 Hz120 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputYes

overvoltage overload capability300 V AC for 30 s

buffering time for rated value of the output current in the event of power failure minimum90 ms

operating condition of the mains bufferingat Vin = 240 V

at rated input voltage 120 V1.5 A

at rated input voltage 240 V0.8 A

current limitation of inrush current at 25 °C maximum29 A

fuse protection type3.15 A

fuse protection type in the feederCircuit breaker 4 A characteristic C or 6 A characteristic B/C or circuit breaker 3RV2011-1EA10 (setting 4 A) or 3RV2711-1ED10 (UL 489)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

number of outputs1

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableYes; via potentiometer

adjustable output voltage24 ... 28 V; max. 89 W

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0.2 %

on slow fluctuation of ohm loading0.3 %

maximum30 mV

typical20 mV

maximum100 mV

typical60 mV

display version for normal operationGreen LED for 24 V OK

type of signal at outputElectronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K.

behavior of the output voltage when switching onOvershoot of Vout < 2 %

response delay maximum0.5 s

typical100 ms

rated value3.7 A

rated range0 ... 3.7 A; +60 ... +70 °C: Derating 3%/K

supplied active power typical89 W

on short-circuiting during the start-up typical3.7 A

at short-circuit during operation typical3.7 A

bridging of equipmentNo

efficiency

efficiency in percent89.3 %

at rated output voltage for rated value of the output current typical11 W

during no-load operation maximum2.2 W

closed-loop control

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical2 %

load step 10 to 90% typical2 ms

load step 90 to 10% typical2 ms

maximum3 ms

protection and monitoring

design of the overvoltage protection< 32 V

property of the output short-circuit proofYes

design of short-circuit protectionShutdown and periodic restart attempts

typical3.7 A

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3.5 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

UKCA markingYes

EAC approvalYes

Regulatory Compliance Mark (RCM)Yes

NEC Class 2Yes; according to UL1310, File E151273

SEMI F47Yes

BISYes; R-41188271

CB-certificateYes

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)No

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total296.7 kg

during manufacturing18 kg

during operation278.2 kg

after end of life0.3 kg

ambient conditions

during operation-30 ... +70 °C; with natural convection a monotonically increasing start-up from -25 °C, safe start-up from -40 °C

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

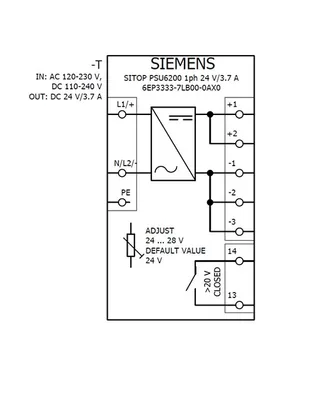

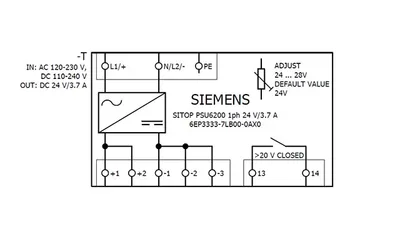

type of electrical connectionpush-in terminals

at inputL1/+, L2/N/-, PE: push-in for 0.5 ... 4 mm² single-core/finely stranded

at output+1, +2, -1, -2, -3: push-in for 0.5 ... 2.5 mm²

for auxiliary contacts13, 14 (alarm signal): 1 push-in terminal each for 0.2 ... 1.5 mm²

mechanical data

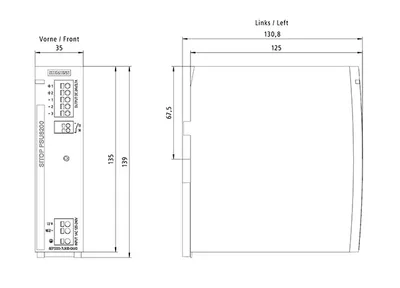

width × height × depth of the enclosure35 × 135 × 125 mm

installation width × mounting height35 mm × 225 mm

top45 mm

bottom45 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight0.7 kg

accessories

electrical accessoriesBuffer module, redundancy module

mechanical accessoriesIdentification labels SIMATIC ET 200SP 6ES7193-6LF30-0AW0

further information internet links

identification linkYes; acc. to IEC 61406-1:2022

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing18 kg

global warming potential [CO2 eq] / during operation278.2 kg

global warming potential [CO2 eq] / after end of life0.3 kg

global warming potential [CO2 eq] / total296.7 kg
