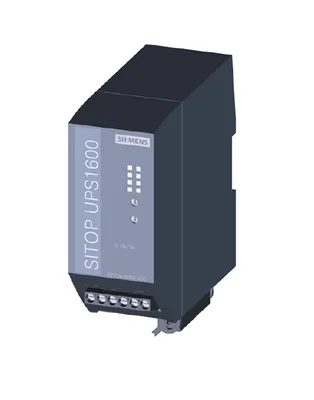

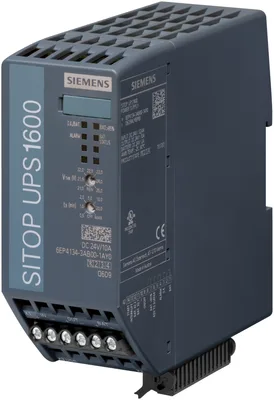

Siemens 6EP4134-3AB00-1AY0

SITOP UPS1600 10 A USB uninterruptible power supply with USB interface input: 24 V DC output: 24 V DC/10 A

SiemensMFR # 6EP4134-3AB00-1AY0SKU # CEY-8EF3B02C8B4E

product brand nameSITOP

product type designationUPS1600

type of current supplyDC UPS 24 V/10 A

voltage curve at inputDC

supply voltage at DC rated value24 V

input voltage at DC21 ... 29 V

Have questions?Chat on WhatsApp

About This Product

SITOP UPS1600 10 A USB uninterruptible power supply with USB interface input: 24 V DC output: 24 V DC/10 A

Siemens 6EP4134-3AB00-1AY0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationUPS1600

type of current supplyDC UPS 24 V/10 A

input

voltage curve at inputDC

supply voltage at DC rated value24 V

input voltage at DC21 ... 29 V

adjustable response value voltage for buffer connection preset21.5 V

adjustable response value voltage for buffer connection21 ... 25 V; Adjustable: 21 V, 21.5 V, 22 V, 22.5 V, 23 V, 24 V, 25 V DC or via software

input current at rated input voltage 24 V rated value14 A; for max. charging current (3 A)

memory

type of energy storagewith batteries

product function DC-UPS modularly expandableYes

design of the mains power cut bridging-connectionAdjustable range using rotary coding switch: 0.5 min, 1 min, 2 min, 5 min, 10 min, 20 min, max. buffering time or via software

output

in normal operation at DC rated value24 V

in buffering mode at DC rated value24 V

formula for output voltageVin - approx. 0.2 V

startup delay time typical60 ms

voltage increase time of the output voltage typical60 ms

output voltage in buffering mode at DC18.5 ... 27 V

rated value10 A

in normal operation0 ... 30 A

in buffering mode0 ... 30 A

peak current30 A

property of the output short-circuit proofYes

design of short-circuit protectionLimitation to 3 x I rated for 30 ms/min; through-conductivity for 1.5 x I rated for 5 sec/min

charging current0.1 A, 3 A

efficiency

at rated output voltage for rated value of the output current typical97.5 %

in case of operation on rechargeable battery typical97.5 %

at rated output voltage for rated value of the output current typical6 W

in case of operation on rechargeable battery typical6 W

supplied active power typical240 W

protection and monitoring

reverse polarity protection against energy storage unit polarity reversalYes

reverse polarity protection against input voltage polarity reversalYes

for normal operationNormal operation: LED green (OK), floating changeover contact "Bat/OK" to setting "OK" ("OK" means: Voltage of the supplying power supply unit is greater than cut-in threshold set at the DC UPS module); Lack of buffer standby: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Battery replacement required: LED red (alarm) flashing with approx. 0.25 Hz, floating changeover contact "Alarm/Bat" switching with approx. 0.25 Hz; Energy storage > 85%: LED green (Bat > 85%), floating NOcontact "Bat > 85" closed; Permissible contact current capacity: DC 60 V/1 A or AC 30 V /1 A

in buffering modeBuffered mode: LED yellow (Bat), floating changeover contact "OK/Bat" to setting "Bat"; Prewarning battery voltage < 20.4 VDC: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Energy storage > 85%: LED green (Bat > 85%), floating NO contact "Bat > 85" closed

interfaces

product component PC interfaceYes

product function communication functionYes

design of the interfaceUSB

safety

galvanic isolation between input and outputNo

operating resource protection classClass III

protection class IPIP20

for emitted interferenceEN 55022 Class B

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

UKCA markingYes

EAC approvalYes

type of certification CB-certificateYes

MTBF at 40 °C364 153 h

standards, specifications, approvals hazardous environments

ATEXNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

Det Norske Veritas (DNV)Yes

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total169 kg

during manufacturing16.4 kg

during operation152.1 kg

after end of life0.3 kg

ambient conditions

during operation-25 ... +70 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionscrew terminal

at input24 V DC: 2 screw terminals for 0.2 ... 6 mm²/24 ... 13 AWG

at output24 V DC: 2 screw terminals for 0.2 ... 6 mm²/24 ... 13 AWG

for rechargeable battery module24 V DC: 2 screw terminals for 0.2 ... 6 mm²/24 ... 13 AWG

for control circuit and status message14 screw terminals for 0.2 ... 1.5 mm²/24 ... 16 AWG

mechanical data

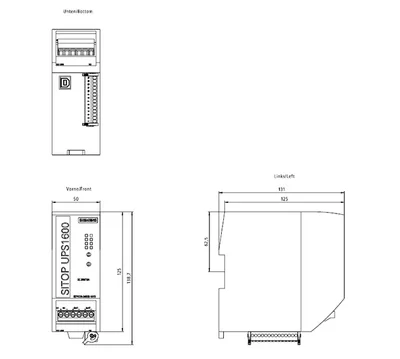

width × height × depth of the enclosure50 × 139 × 125 mm

installation width × mounting height50 mm × 239 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight0.4 kg

accessories

electrical accessoriesBattery module

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Accessories 12

Genuine accessories that can be used with the Siemens 6EP4134-3AB00-1AY0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6EP4132-0JA00-0AY0	Aksesuar · Battery module
6EP4133-0GA00-0AY0	Aksesuar · Battery module
6EP4134-0JA00-0AY0	Aksesuar · Battery module
6EP4135-0GE00-0AY0	Aksesuar · Battery module
6EP4137-0GE00-0AY0	Aksesuar · Battery module
6EP4134-0HA00-0AY0	Aksesuar · Capacitor module · #NO_DATA#
6EP4135-0HA00-0AY0	Aksesuar · Capacitor module · #NO_DATA#
6EP4136-0HA00-0AY0	Aksesuar · Capacitor module · #NO_DATA#
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
6EP4132-0JA00-0AY0-Z	Aksesuar
6EP4134-0JA00-0AY0-Z	Aksesuar
6EP4134-0GB00-0AY0	Aksesuar · Battery module
