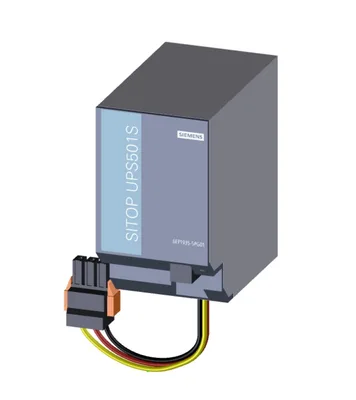

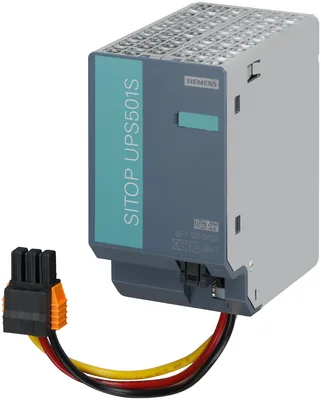

Siemens 6EP1935-5PG01
SITOP UPS501S expansion module 5 kWs for UPS500S (2.5 kWs, 5 kWs) degree of protection IP20
product brand nameSITOP
product type designationUPS501
type of current supplyExtension module
voltage curve at inputDC
type of energy storagewith capacitors
energy content of energy storage5 kW.s
About This Product
SITOP UPS501S expansion module 5 kWs for UPS500S (2.5 kWs, 5 kWs) degree of protection IP20
Siemens 6EP1935-5PG01
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
product brand nameSITOP
product type designationUPS501
type of current supplyExtension module
input
voltage curve at inputDC
memory
type of energy storagewith capacitors
product function DC-UPS modularly expandableNo
energy content of energy storage5 kW.s
protection and monitoring
for normal operation-
interfaces
product component PC interfaceNo
product function communication functionNo
design of the interfacewithout
safety
operating resource protection classClass III
protection class IPIP20
standards, specifications, approvals
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
EAC approvalYes
MTBF at 40 °C350 000 h
standards, specifications, approvals marine classification
shipbuilding approvalYes
American Bureau of Shipping Europe Ltd. (ABS)Yes
Det Norske Veritas (DNV)Yes
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationYes
total20.2 kg
during manufacturing11.1 kg
during operation8.7 kg
after end of life0.21 kg
ambient conditions
during operation0 ... 60 °C; with natural convection
during transport-40 ... +70 °C
during storage-40 ... +70 °C
environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation
connection method
type of electrical connectionscrew terminal
at outputcan be connected to SITOP UPS500S via a plug-in system
mechanical data

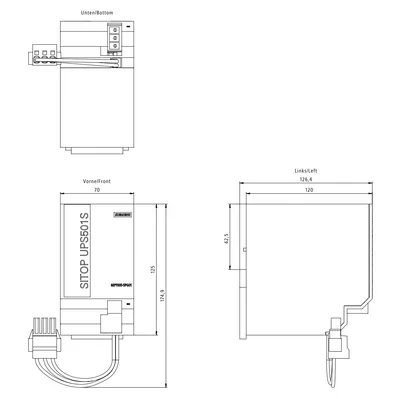

width × height × depth of the enclosure70 × 125 × 125 mm
installation width × mounting height70 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingYes
S7 rail mountingNo
wall mountingNo
housing can be lined upYes
net weight0.7 kg
additional information
other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
