How can I get a price quote for Siemens 6EP1961-2BA51?

You can request a fast quote for Siemens 6EP1961-2BA51 from Yılsa Engineering. Reference part number YLSQ0K7PANZUMY8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6EP1961-2BA51 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6EP1961-2BA51 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6EP1961-2BA51?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

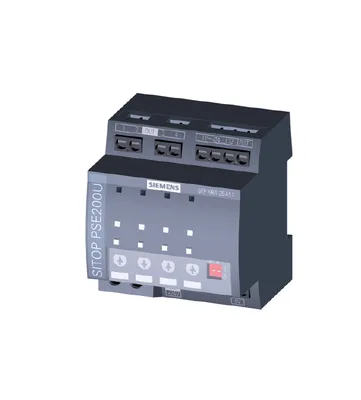

Siemens 6EP1961-2BA51

SITOP PSE200U 3 A NEC CLASS 2 selectivity module 4-channel input: 24 V DC/12 A output: 24 V/4x 3 A NEC class 2 threshold value adjustable 0.5-3 A with common signaling contact

SiemensMFR # 6EP1961-2BA51SKU # YLSQ0K7PANZUMY8

product brand nameSITOP

product type designationPSE200U

product designationSITOP Selectivity module

type of the power supply networkControlled DC voltage

supply voltage at DC rated value24 V

input voltage at DC22 ... 30 V

Have questions?Chat on WhatsApp

About This Product

SITOP PSE200U 3 A NEC CLASS 2 selectivity module 4-channel input: 24 V DC/12 A output: 24 V/4x 3 A NEC class 2 threshold value adjustable 0.5-3 A with common signaling contact

Siemens 6EP1961-2BA51

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSE200U

product designationSITOP Selectivity module

type of current supplySelectivity module, 4 x 3 A NEC Class 2, Common signal contact

input

type of the power supply networkControlled DC voltage

supply voltage at DC rated value24 V

input voltage at DC22 ... 30 V

overvoltage overload capability35 V

input current at rated input voltage 24 V rated value12 A

output

voltage curve at outputcontrolled DC voltage

formula for output voltageVin - approx. 0.2 V

relative overall tolerance of the voltage noteIn accordance with the supplying input voltage

number of outputs4

output current up to 60 °C per output rated value3 A

adjustable current response value current of the current-dependent overload release0.5 ... 3 A

type of response value settingvia potentiometer

response delay maximum5 s

product feature parallel switching of outputsNo

type of outputs connectionsimultaneous switch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 100 ms, or "load-optimized" via DIP switch configurable for sequential switch-on

efficiency

efficiency in percent97 %

power loss [W] at rated output voltage for rated value of the output current typical9 W

switch-off characteristic

of the excess currentIout = 1.0 ...1.1 x set value, switch-off after approx. 5 s

of the current limitationIout = 1.1 x set value, switch-off after typ. 100 ms

of the immediate switch-offIout > set value and Vin < 20 V, switch-off after approx. 0.5 ms

residual current at switch-off typical1 mA

design of the reset device/resetting mechanismvia sensor per output

remote reset functionnon-isolated 24 V input (signal level "high" at > 15 V)

protection and monitoring

fuse protection type at input5 A per output (not accessible)

display version for normal operationThree-color LED per output: green LED for "Output switched through"; yellow LED for "Output switched off manually"; red LED for "Output switched off due to overcurrent"

design of the switching contact for signaling functionCommon signal contact (changeover contact, rating 0.1 A/24 V DC)

safety

galvanic isolation between input and output at switch-offNo

standard for safetyaccording to EN 62368-1

operating resource protection classClass III

protection class IPIP20

for emitted interferenceEN 55022 Class B

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 No. 107.1) File E197259

UKCA markingYes

EAC approvalYes

NEC Class 2Yes; according to UL1310

CB-certificateYes

MTBF at 40 °C755 915 h

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

Det Norske Veritas (DNV)Yes

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total255.6 kg

during manufacturing8.7 kg

during operation246.6 kg

after end of life0.2 kg

Siemens eco profile (SEP)Siemens EcoTech

ambient conditions

during operation-25 ... +60 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionscrew terminal

at input+24 V: 2 screw terminals for 0.5 ... 16 mm²; 0 V: 2 screw terminals for 0.5 ... 4 mm²

at outputOutput 1 ... 4: 1 screw terminal each for 0.5 ... 4 mm²

for auxiliary contactsRemote reset: 1 screw terminal for 0.5 ... 4 mm²

for signaling contact3 screw terminals for 0.5 ... 4 mm²

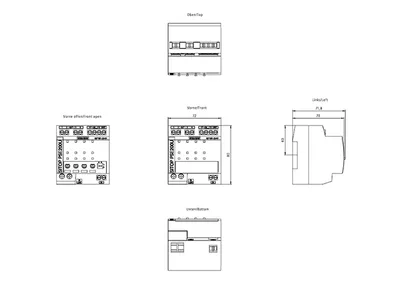

mechanical data

width × height × depth of the enclosure72 × 80 × 72 mm

installation width × mounting height72 mm × 180 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight0.2 kg

accessories

mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

further information internet links

identification linkYes; acc. to IEC 61406-1:2022

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
