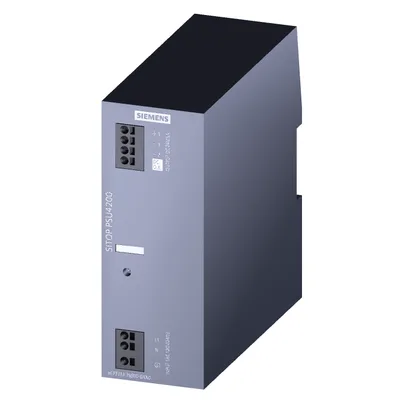

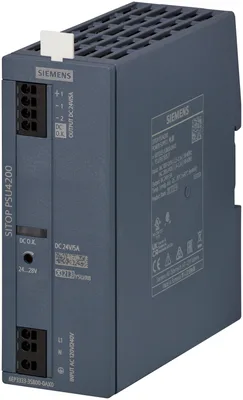

Siemens 6EP3333-3SB00-0AX0

SITOP PSU4200 1AC 24 V/5 A stabilized power supply PSU4200 input: 120/240 V AC output: 24 V DC/5 A

SiemensMFR # 6EP3333-3SB00-0AX0SKU # YLSHETPICORQPMU

product brand nameSITOP

product type designationPSU4200

product designationPower supply SITOP PSU4200

type of current supply24 V/5 A

type of the power supply network1-phase AC

phase number1

Have questions?Chat on WhatsApp

About This Product

SITOP PSU4200 1AC 24 V/5 A stabilized power supply PSU4200 input: 120/240 V AC output: 24 V DC/5 A

Siemens 6EP3333-3SB00-0AX0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU4200

product designationPower supply SITOP PSU4200

type of current supply24 V/5 A

input

type of the power supply network1-phase AC

phase number1

voltage curve at inputAC

supply voltage at ACAutomatic range selection

supply voltage 1 at AC100 ... 120 V

supply voltage 2 at AC200 ... 240 V

input voltage 1 at AC85 ... 132 V

input voltage 2 at AC187 ... 264 V

at 50 Hz240 V

at 60 Hz120 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputNo

buffering time for rated value of the output current in the event of power failure minimum15 ms

operating condition of the mains bufferingat Vin = 120/240 V

at rated input voltage 100 V2.5 A

at rated input voltage 120 V2.1 A

at rated input voltage 200 V1.4 A

at rated input voltage 230 V1.25 A

at rated input voltage 240 V1.2 A

current limitation of inrush current at 25 °C maximum45 A

typical20 ms

I2t value maximum1.6 A²·s

fuse protection type3.15 A

fuse protection type in the feederRecommended miniature circuit breaker: from 6 A characteristic C to from 16 A characteristic C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableYes; via potentiometer

adjustable output voltage24 ... 28 V

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0.2 %

on slow fluctuation of ohm loading0.3 %

maximum150 mV

typical35 mV

maximum240 mV

typical30 mV

display version for normal operationGreen LED for 24 V OK

type of signal at outputSignal contact (signal load capacity: 5 mA) for DC OK

behavior of the output voltage when switching onNo overshoot of Vout (soft start)

response delay maximum1.5 s

typical210 ms

maximum500 ms

rated value5 A

rated range0 ... 5 A; +60 ... +70 °C: Derating 4%/K

supplied active power typical120 W

bridging of equipmentYes

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent87 %

at rated output voltage for rated value of the output current typical18 W

during no-load operation maximum2.2 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0.2 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical1 %

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical1 %

load step 10 to 90% typical1 ms

load step 90 to 10% typical1 ms

protection and monitoring

design of the overvoltage protection< 32 V

property of the output short-circuit proofYes

design of short-circuit protectionConstant current characteristic

typical6 A

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum1.4 mA

typical0.7 mA

protection class IPIP20

EMC

for emitted interferenceEN 55032 Class A

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

UKCA markingYes

EAC approvalYes

Regulatory Compliance Mark (RCM)Yes

NEC Class 2No

BISYes; R-41183539

CB-certificateYes

MTBF at 40 °C1 580 000 h

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalNo

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total502.5 kg

during manufacturing13.9 kg

during operation488 kg

after end of life0.41 kg

Siemens eco profile (SEP)Siemens EcoTech

ambient conditions

during operation-25 ... +70 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionpush-in terminals

at inputL, N, PE: push-in for 0.5 ... 4 mm²

at output+, -: push-in for 0.5 ... 2.5 mm²

for signaling contact13, 14: push-in for 0.2 ... 1.5 mm²

mechanical data

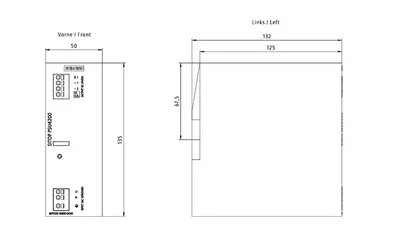

width × height × depth of the enclosure50 × 135 × 125 mm

installation width × mounting height50 mm × 225 mm

top45 mm

bottom45 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingYes

housing can be lined upYes

net weight0.44 kg

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing13.9 kg

global warming potential [CO2 eq] / during operation488 kg

global warming potential [CO2 eq] / after end of life0.41 kg

global warming potential [CO2 eq] / total502.5 kg
