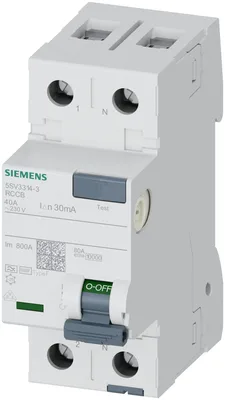

Siemens 5SV3314-3

Residual current operated circuit breaker, 2-pole, type F, short-time delayed, In: 40 A, 30 mA, Un AC: 230 V

SiemensMFR # 5SV3314-3SKU # YLSG9OTCQKWVB

product brand nameSENTRON

design of the productShort-time delayed

product type designation5SV3

number of poles2

short-circuit current rating10 kA

switching function short-term delayedYes

Have questions?Chat on WhatsApp

About This Product

Residual current operated circuit breaker, 2-pole, type F, short-time delayed, In: 40 A, 30 mA, Un AC: 230 V

Siemens 5SV3314-3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationResidual current operated circuit breaker

design of the productShort-time delayed

product type designation5SV3

General technical data

number of poles2

size of installation devices according to DIN 438801

mechanical service life (operating cycles) typical10 000

short-circuit current of series fuse maximum permissible80 A

short-circuit current rating10 kA

switching function short-term delayedYes

degree of pollution2

insulation voltage (Ui) rated value2 000 V

tripping fault current rated value30 mA

let-through current permissible5 700 A

I2t value permissible58 000 A²·s

Supply voltage

supply voltage for testing equipment minimum195 V

value range of the supply voltage frequency50 Hz

value range of the operating frequency50/60 Hz

value range of the supply voltage at AC230 V

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

according to IEC 61008-1 rated value0.5 kA

grid spacing60 mm

Dissipation

for rated value of the current at AC in hot operating state per pole1.5 W

maximum3 W

Appearance

RAL color number7 035

RAL color number (similar)7 035

Product details

product feature silicon-freeYes

product extension installable supplementary devicesYes

Connections

minimum0.75 mm²

maximum35 mm²

minimum0.75 mm²

maximum35 mm²

minimum2.5 N·m

maximum3 N·m

position of power supply cordtop or bottom

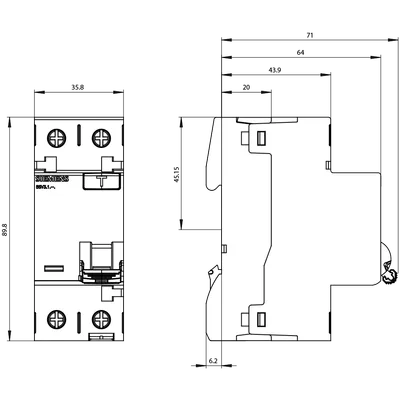

Mechanical Design

height90 mm

width36 mm

depth70 mm

installation depth70 mm

number of modular width units2

fastening methodDIN rail

mounting positionany

Net Weight214 g

Environmental conditions

minimum-25 °C

maximum45 °C

ambient temperature during storage minimum-40 °C

number of test cycles for environmental testing according to IEC 60068-2-3028

Accessories 62

Genuine accessories that can be used with the Siemens 5SV3314-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3010	Aksesuar
5ST3020	Aksesuar
5ST3062-0MC	Aksesuar
5ST3062	Aksesuar
5ST3030	Aksesuar
5ST3040	Aksesuar
5ST3071	Aksesuar
5TG8240	Aksesuar
8WH8210-0AA35	Aksesuar
8WH8210-0AA36	Aksesuar
5SW3010	Aksesuar
5SW3004	Aksesuar
5SW3005	Aksesuar
5SW3007	Aksesuar
5SW3006	Aksesuar
5ST2134	Aksesuar
7LF9006	Aksesuar
8GB4561	Aksesuar
8GB4562	Aksesuar
8GB4564	Aksesuar
8GB4563	Aksesuar
5ST2136	Aksesuar
5ST2135	Aksesuar
5ST3820-6	Aksesuar
5ST3752	Seçmeli zorunlu ürün
5ST3751	Seçmeli zorunlu ürün
5ST3746-1	Seçmeli zorunlu ürün
5ST3726	Seçmeli zorunlu ürün
5ST3724	Seçmeli zorunlu ürün
5ST3735-1	Seçmeli zorunlu ürün
5ST3784-0	Seçmeli zorunlu ürün
5ST3785-0	Seçmeli zorunlu ürün
5ST3623-4	Seçmeli zorunlu ürün
5ST3637	Seçmeli zorunlu ürün
5ST3611	Seçmeli zorunlu ürün
5ST3607	Seçmeli zorunlu ürün
5ST3705	Seçmeli zorunlu ürün
5ST3638	Seçmeli zorunlu ürün
5ST3770-3	Seçmeli zorunlu ürün
5ST3770-2	Seçmeli zorunlu ürün
5ST3653	Seçmeli zorunlu ürün
5ST3623	Seçmeli zorunlu ürün
5ST3734	Seçmeli zorunlu ürün
5ST3608	Seçmeli zorunlu ürün
5ST3735	Seçmeli zorunlu ürün
5ST3642	Seçmeli zorunlu ürün
5ST3746-2	Seçmeli zorunlu ürün
5ST3606	Seçmeli zorunlu ürün
5ST3737	Seçmeli zorunlu ürün
5ST3736	Seçmeli zorunlu ürün
5ST3707	Seçmeli zorunlu ürün
5ST3706	Seçmeli zorunlu ürün
5ST3641	Seçmeli zorunlu ürün
5ST3640	Seçmeli zorunlu ürün
5ST3612	Seçmeli zorunlu ürün
5ST3610	Seçmeli zorunlu ürün
5ST3735-2	Seçmeli zorunlu ürün
5ST3772	Seçmeli zorunlu ürün
5ST3786-0	Seçmeli zorunlu ürün
5ST3685-0	Seçmeli zorunlu ürün
5ST3704	Seçmeli zorunlu ürün
5ST3636	Seçmeli zorunlu ürün
