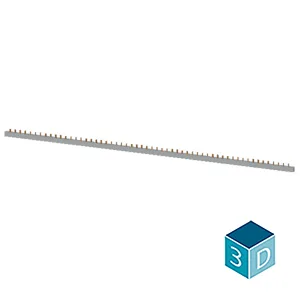

Siemens 5ST3735

Pin busbar touch-safe, 10 mm2 2-phase, 1016 mm long can be cut, without end caps

SiemensMFR # 5ST3735SKU # YLSWFSRNWY0Z

product brand nameSENTRON

product designationPin busbar

design of the product28x (1PH+N)

design of the phase tapL1/L2 oder L1/N

compatibilityfor 2 MW devices (2P/1P+N)

design of pole2P / 1P+N

Have questions?Chat on WhatsApp

About This Product

Pin busbar touch-safe, 10 mm2 2-phase, 1016 mm long can be cut, without end caps

Siemens 5ST3735

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product28x (1PH+N)

design of the phase tapL1/L2 oder L1/N

General technical data

compatibilityfor 2 MW devices (2P/1P+N)

design of pole2P / 1P+N

phase number2

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

suitability for useRCCB 2P N right

colorlight grey

Product details

product component with end capNo

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting28

type of electrical connectionPin

Mechanical Design

module width18 mm

height15 mm

width18 mm

length1 016 mm

number of modular width units56

cross-section10 mm²

angle of the pin of busbar0°

Net Weight343 g
