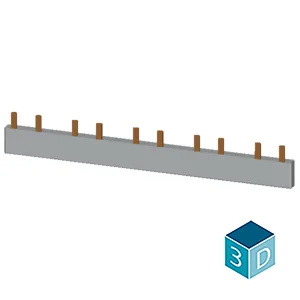

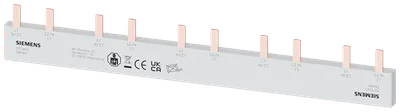

Siemens 5ST3642

Pin busbar, 16 mm2 connection: 5x (2-phase+AUX/FS) touch-safe

SiemensMFR # 5ST3642SKU # YLSU094FFSO7YOV

product brand nameSENTRON

product designationPin busbar

design of the product5x (1PH+N+HS)

design of the phase tapL1/L2 oder L1/N

compatibilityfor 5 MCBs (2P/1P+N)

design of pole2P / 1P+N

Have questions?Chat on WhatsApp

About This Product

Pin busbar, 16 mm2 connection: 5x (2-phase+AUX/FS) touch-safe

Siemens 5ST3642

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product5x (1PH+N+HS)

design of the phase tapL1/L2 oder L1/N

General technical data

compatibilityfor 5 MCBs (2P/1P+N)

design of pole2P / 1P+N

phase number2

operational current rated value80 A

suitability for interaction devices with auxiliary switchYes

suitability for interaction devices with N conductorYes

suitability for useRCCB 2P N right

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting5

type of electrical connectionPin

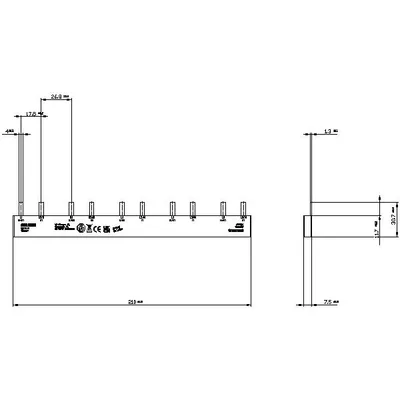

Mechanical Design

module width18 mm

height19 mm

width7 mm

length210 mm

number of modular width units12

cross-section16 mm²

angle of the pin of busbar0°

Net Weight86 g

Accessories 36

Genuine accessories that can be used with the Siemens 5ST3642 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3655	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5ST3015	Uyumlu ürün
5ST3015-2	Uyumlu ürün
5ST3016	Uyumlu ürün
5ST3020-0HG	Uyumlu ürün
5ST3021-0HG	Uyumlu ürün
5ST3022-0HG	Uyumlu ürün
5ST3020	Uyumlu ürün
5ST3062	Uyumlu ürün
5ST3020-2	Uyumlu ürün
5ST3014-2	Uyumlu ürün
5ST3021	Uyumlu ürün
5ST3021-2	Uyumlu ürün
5ST3022	Uyumlu ürün
5ST3022-2	Uyumlu ürün
5ST3010-Z	Uyumlu ürün
5ST3010-0HG-Z	Uyumlu ürün
5ST3062-0MC	Uyumlu ürün
5ST3014	Uyumlu ürün
5ST3013	Uyumlu ürün
5ST3018-0KC	Uyumlu ürün
5ST3013-2	Uyumlu ürün
5ST3010	Uyumlu ürün
5ST3010-2	Uyumlu ürün
5ST3011	Uyumlu ürün
5ST3011-0HG	Uyumlu ürün
5ST3011-2	Uyumlu ürün
5ST3012	Uyumlu ürün
5ST3012-0HG	Uyumlu ürün
5ST3012-2	Uyumlu ürün
5ST3010-0HG	Uyumlu ürün
5ST3028-0KC	Uyumlu ürün
