How can I get a price quote for Siemens 5ST3751?

You can request a fast quote for Siemens 5ST3751 from Yılsa Engineering. Reference part number YLS2F22XFY5VOOU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3751 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3751 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3751?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

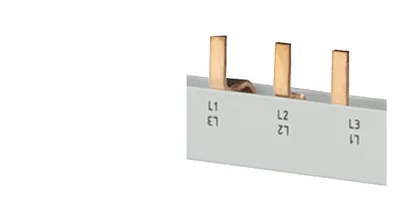

Siemens 5ST3751

Pin busbar safe to touch 16 mm2 2-phase for 5 RCBO 2-pole/3 MW 15 MW fully insulated

SiemensMFR # 5ST3751SKU # YLS2F22XFY5VOOU

product brand nameSENTRON

product designationPin busbar

design of the product5x (2PH / 1PH+N)

design of the phase tapL1/L2 oder L1/N

compatibilityfor RCBO 2P (3 MW)

design of pole2P / 1P+N

Have questions?Chat on WhatsApp

About This Product

Pin busbar safe to touch 16 mm2 2-phase for 5 RCBO 2-pole/3 MW 15 MW fully insulated

Siemens 5ST3751

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product5x (2PH / 1PH+N)

design of the phase tapL1/L2 oder L1/N

General technical data

compatibilityfor RCBO 2P (3 MW)

design of pole2P / 1P+N

phase number2

operational current rated value80 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

colorlight grey

Product details

product component with end capYes

product feature attachable arc fault detection deviceYes

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting5

type of electrical connectionPin

Mechanical Design

module width18 mm

height18 mm

width18 mm

length270 mm

number of modular width units15

cross-section16 mm²

angle of the pin of busbar0°

Net Weight113 g

Accessories 6

Genuine accessories that can be used with the Siemens 5ST3751 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
