How can I get a price quote for Siemens 5ST3786-0?

You can request a fast quote for Siemens 5ST3786-0 from Yılsa Engineering. Reference part number YLSJOLN4T4RIPNF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3786-0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3786-0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3786-0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

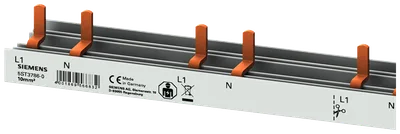

Siemens 5ST3786-0

compact pin busbar, 10 mm2, connection 1-pole/ N AFDD 5SM6 + RCBO 2-pole + auxiliary switch 0.5 MW safe to touch 1m can be cut

SiemensMFR # 5ST3786-0SKU # YLSJOLN4T4RIPNF

product brand nameSENTRON

product designationPin busbar

design of the product16x (1PH+N)

design of the phase tapL1/N

design of pole1P+N

phase number2

Have questions?Chat on WhatsApp

About This Product

compact pin busbar, 10 mm2, connection 1-pole/ N AFDD 5SM6 + RCBO 2-pole + auxiliary switch 0.5 MW safe to touch 1m can be cut

Siemens 5ST3786-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product16x (1PH+N)

design of the phase tapL1/N

General technical data

compatibilityfor 2 MW devices (MCBs or RCBOs) equipped with 5SM6 arc fault detection unit and auxiliary switch

design of pole1P+N

phase number2

operational current rated value63 A

suitability for interaction devices with auxiliary switchYes

suitability for interaction devices with N conductorYes

suitability for useRCCB 2P N right

colorlight grey

Product details

product component with end capNo

product feature attachable arc fault detection deviceYes

product feature insulatedYes

suitable for compact devicesNo

can be cutYes

number of devices suitable for fitting16

type of electrical connectionPin

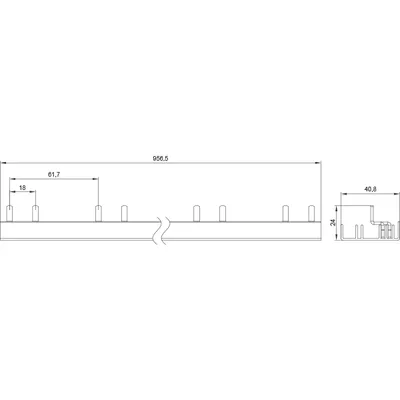

Mechanical Design

module width18 mm

height13 mm

width41 mm

length956 mm

number of modular width units53

cross-section10 mm²

angle of the pin of busbar0°

Net Weight373 g

Accessories 10

Genuine accessories that can be used with the Siemens 5ST3786-0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3750	Aksesuar
5ST3655	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5SM6021-2	Uyumlu ürün
5SM6024-2	Uyumlu ürün
5SM6021-1XX03	Uyumlu ürün
5SM6021-1	Uyumlu ürün
