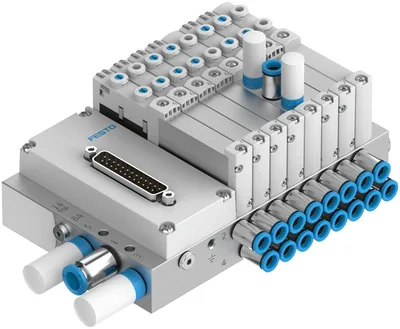

Festo VTUG-F1A

Valve terminal. Recommended for production plants for the manufacture of Li‑ion manifolds (F1A). Low-cost fixed grid. Extremely easy assembly. Exchangeable electrical control. IO-Link® capable. Part of the VG series. Energy-efficient thanks to reverse operation and targeted pressure reduction

FestoMFR # VTUG-F1ASKU # YLSFU9ISKZN3Y1

Electrical I/O systemNo

Media temperature-5, 60

Ambient temperature-5, 60

Storage temperature-10, 60

Degree of protectionIP40

Corrosion resistance class CRC2 - Moderate corrosion stress

Have questions?Chat on WhatsApp

About This Product

Festo VTUG-F1A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Electrical controlAP interface, I-Port, IO-Link®, Multi-pin

Electrical I/O systemNo

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Media temperature-5, 60

Ambient temperature-5, 60

Storage temperature-10, 60

Degree of protectionIP40

Corrosion resistance class CRC2 - Moderate corrosion stress

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Pilot pressure0.15, 0.8

Pilot pressure1.5, 8

Operating pressure for valve terminal with internal pilot air supply0.15, 0.8

Operating pressure for valve terminal with internal pilot air supply1.5, 8

Operating pressure for valve terminal with internal pilot air supply21.75, 116

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

ApprovalRCM, c UL us - Recognised (Oil)

Certificate issuing authorityUL MH19482

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Valve terminal structureFixed grid

Max. number of valve positions24

Max. number of pressure zones13

Type of actuationElectrical

Valve function2x3/2 closed monostable, 2x3/2 open monostable, 2x3/2-way, open/closed, monostable, 3/2-way, single solenoid, closed, 3/2-way, single solenoid, open, 5/2-way, double solenoid, 5/2-way, single solenoid

DesignPiston gate valve

Sealing principleSoft

Type of pilotingPiloted

Valve size10

Pilot air supplyExternal, Internal

Max. standard nominal flow rate330 l/min at 10 mm, 630 l/min at 14 mm

Standard nominal flow rate (standardised to DIN 1343)130, 630

Suitability for vacuumYes

Exhaust-air functionCan be throttled

pneumatic working portM5, M7, G1/8, QS-4, QS-6, QS-8

Pneumatic connection, port 1G1/8, G1/4, QS-6, QS-8, QS-10, QS-12

Pilot air port 12/14M5

Signal status displayLED

Nominal operating voltage DC24

Permissible voltage fluctuations+/-10%, +/-25%

Nominal pick-up current per solenoid coil47 mA to 20 ms

Nominal current with current reduction15.5 mA after 20 ms

Accessories 17

Genuine accessories that can be used with the Festo VTUG-F1A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CTEU-CO	Bus node · Bus interface
CTEU-CP	Bus node · Bus interface
CTEU-PN	Bus node · Bus interface
CTEU-CC	Bus node · Bus interface
CTEU-EP	Bus node · Bus interface
CTEU-DN	Bus node · Bus interface
CTEU-PB	Bus node · Bus interface
CTEU-EC	Bus node · Bus interface
CTEU-VN	Bus node · Bus interface
CTEU-AS	Bus node · Bus interface
CTEU-PN-EX1C	Bus node · Bus interface
CTEU-PB-EX1C	Bus node · Bus interface
B-M5-F1A	Blanking plug · Other connectors
B-1/8-F1A	Blanking plug · Other connectors
B-1/4-F1A	Blanking plug · Other connectors
B-M7-F1A	Blanking plug · Other connectors
VAME-L1-Q	Mounting bracket · Mounting accessories
