How can I get a price quote for Festo VTOC?

You can request a fast quote for Festo VTOC from Yılsa Engineering. Reference part number YLSXUWZAOUGJIU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VTOC in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VTOC genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VTOC?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

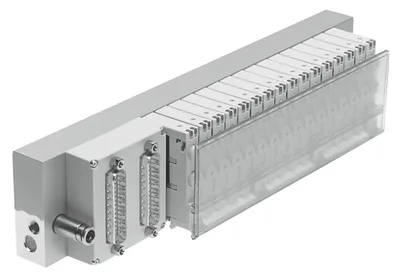

Festo VTOC

Valve terminal. Compact pilot valves. Compact assembly. Greater safety thanks to interlock function. Multi-pin or fieldbus control. IO-Link® capable

FestoMFR # VTOCSKU # YLSXUWZAOUGJIU

Valve function2x3/2 closed monostable

Valve size10

Max. standard nominal flow rate10 l/min at 10 mm

pneumatic working portSub-base

Operating pressure0, 0.8

Operating pressure0, 8

Have questions?Chat on WhatsApp

About This Product

Valve terminal. Compact pilot valves. Compact assembly. Greater safety thanks to interlock function. Multi-pin or fieldbus control. IO-Link® capable

Festo VTOC

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function2x3/2 closed monostable

Valve size10

Max. standard nominal flow rate10 l/min at 10 mm

pneumatic working portSub-base

Operating pressure0, 0.8

Operating pressure0, 8

Operating pressure0, 116

Approvalc UL us - Recognised (Oil)

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive

Signal status displayLED

Suitability for vacuumNo

Inrush time100

Nominal pick-up current per solenoid coil55 mA to 100 ms

Nominal current with current reduction13 mA after 100 ms

Nominal operating voltage DC24

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Media temperature-5, 50

Degree of protectionIP40

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Electrical controlI-Port, IO-Link®, Multi-pin

Note on materialsRoHS compliant

Type of actuationElectrical

Electrical I/O systemYes

Terminal type84

Max. number of valve positions24

Valve terminal structureFixed grid

Accessories 34

Genuine accessories that can be used with the Festo VTOC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CTEU-AS	Bus node · Bus interface
CTEU-EC	Bus node · Bus interface
CTEU-CC	Bus node · Bus interface
CTEU-CP	Bus node · Bus interface
CTEU-PN	Bus node · Bus interface
CTEU-EP	Bus node · Bus interface
CTEU-CO	Bus node · Bus interface
CTEU-DN	Bus node · Bus interface
CTEU-PB	Bus node · Bus interface
CTEU-VN	Bus node · Bus interface
CTEU-PN-EX1C	Bus node · Bus interface
CTEU-PB-EX1C	Bus node · Bus interface
B-1/8	Blanking plug · Other connectors
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QS-1/8-8-I	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
QSM-M7-6-I	Push-in fitting · Push-in fittings
UC-M7	Silencer · Silencer
B-M7	Blanking plug · Other connectors
QSM-M7-1/4-I-U-M	Push-in fitting · Push-in fittings
QS-1/8-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
KMP6-25P-20-2,5	Connecting cable · Electrical accessories
KMP6-25P-20-5	Connecting cable · Electrical accessories
KMP6-25P-20-10	Connecting cable · Electrical accessories
KMP6-25P-12-2,5	Connecting cable · Electrical accessories
KMP6-25P-12-5	Connecting cable · Electrical accessories
KMP6-25P-12-10	Connecting cable · Electrical accessories
CAPC-F1-E-M12	Electrical sub-base · Electrical accessories
CTEU-EP-EX1C	Bus node · Electrical accessories
