How can I get a price quote for Festo MPAC-VI?

You can request a fast quote for Festo MPAC-VI from Yılsa Engineering. Reference part number YLSRTVP1HGKRX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MPAC-VI in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MPAC-VI genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MPAC-VI?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

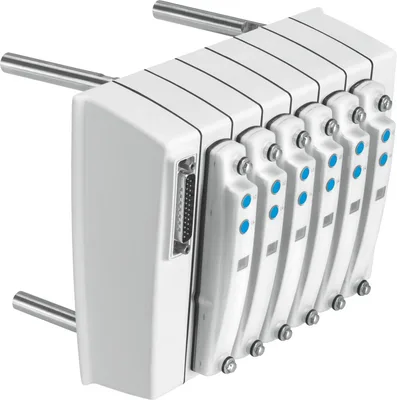

Festo MPAC-VI

Valve terminal. Valve terminal in clean design. Easy-to-clean design. High corrosion resistance. Degree of protection IP69K. FDA-compliant materials. Redundant sealing system. Sustainable in production thanks to the use of alternative materials

FestoMFR # MPAC-VISKU # YLSRTVP1HGKRX

Electrical controlI-Port, IO-Link®, Multi-pin

Electrical I/O systemNo

Terminal type35

Grid dimension26.8

Media temperature-5, 50

Ambient temperature-5, 60

Have questions?Chat on WhatsApp

About This Product

Festo MPAC-VI

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Electrical controlI-Port, IO-Link®, Multi-pin

Electrical I/O systemNo

Terminal type35

Grid dimension26.8

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Media temperature-5, 50

Ambient temperature-5, 60

Storage temperature-20, 40

Degree of protectionIP65, IP67, IP69K

Corrosion resistance class CRC4 - Very high corrosion stress

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Operating pressure for valve terminal with internal pilot air supply0.3, 0.8

Operating pressure for valve terminal with internal pilot air supply3, 8

Operating pressure for valve terminal with internal pilot air supply43.5, 116

LABS (PWIS) conformityVDMA24364-B2-L

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, UL – Recognized (OL)

Suitable for use with foodSee supplementary material information

Note on materialsRoHS compliant

Material sealsEPDM

Valve terminal structureModular and expandable

Max. number of valve positions32

Max. number of pressure zones32

Type of actuationElectrical

Valve function2/2-way, single solenoid, closed, 2x3/2 closed monostable, 2x3/2 open monostable, 2x3/2-way, open/closed, monostable, 3/2-way, single solenoid, closed, 3/2-way, single solenoid, open, 5/2-way, double

DesignPiston gate valve

Type of pilotingElectrical

Valve size14

Pilot air supplyExternal, Internal

Max. standard nominal flow rate780 l/min at 14 mm

Suitability for vacuumYes

Pneumatic connection, port 1G1/4, G3/8

Pneumatic connection, port 2G1/4

Pneumatic connection, port 3G1/4, G3/8

Pneumatic connection, port 4G1/4

Pilot air port 12/14G1/8

Pilot exhaust port 82/84G1/8

Signal status displayLED

Nominal operating voltage DC24

Permissible voltage fluctuations+/-25%

Nominal pick-up current per solenoid coil50 mA to 20 ms

Nominal current with current reduction10 mA after 20 ms

Accessories 89

Genuine accessories that can be used with the Festo MPAC-VI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CTEU-EC	Bus node · Bus interface
CTEU-CC	Bus node · Bus interface
CTEU-CP	Bus node · Bus interface
CTEU-PN	Bus node · Bus interface
CTEU-EP	Bus node · Bus interface
CTEU-CO	Bus node · Bus interface
CTEU-DN	Bus node · Bus interface
CTEU-PB	Bus node · Bus interface
CTEU-AS	Bus node · Bus interface
CTEU-VN	Bus node · Bus interface
CTEU-PN-EX1C	Bus node · Bus interface
CTEU-PB-EX1C	Bus node · Bus interface
QS-G1/8-4-100	Push-in fitting · Push-in fittings
QS-G1/8-6-100	Push-in fitting · Push-in fittings
QS-G1/8-8-50	Push-in fitting · Push-in fittings
QS-G1/4-6-100	Push-in fitting · Push-in fittings
QS-G1/4-8-50	Push-in fitting · Push-in fittings
QS-G1/4-10-50	Push-in fitting · Push-in fittings
QS-G1/4-12-20	Push-in fitting · Push-in fittings
QS-G3/8-8-50	Push-in fitting · Push-in fittings
QS-G3/8-10-50	Push-in fitting · Push-in fittings
QS-G3/8-12-20	Push-in fitting · Push-in fittings
QSL-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-6-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-8-50	Push-in L-fitting · Push-in fittings
QSL-G1/4-6-100	Push-in L-fitting · Push-in fittings
QSL-G1/4-8-50	Push-in L-fitting · Push-in fittings
QSL-G1/4-10-50	Push-in L-fitting · Push-in fittings
QSL-G1/4-12-20	Push-in L-fitting · Push-in fittings
QSL-G3/8-8-50	Push-in L-fitting · Push-in fittings
QSL-G3/8-10-20	Push-in L-fitting · Push-in fittings
QSL-G3/8-12-20	Push-in L-fitting · Push-in fittings
QSLL-G1/4-12	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-4-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8-100	Push-in L-fitting, long · Push-in fittings
UC-1/8	Silencer · Silencer
UC-1/4	Silencer · Silencer
QS-G1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-6	Push-in fitting · Push-in fittings
QS-G1/4-6	Push-in fitting · Push-in fittings
QS-G1/8-8	Push-in fitting · Push-in fittings
QS-G1/4-8	Push-in fitting · Push-in fittings
QS-G3/8-8	Push-in fitting · Push-in fittings
QS-G1/4-10	Push-in fitting · Push-in fittings
QS-G3/8-10	Push-in fitting · Push-in fittings
QS-G3/8-12	Push-in fitting · Push-in fittings
QSL-G1/8-4	Push-in L-fitting · Push-in fittings
QSL-G1/8-6	Push-in L-fitting · Push-in fittings
QSL-G1/4-6	Push-in L-fitting · Push-in fittings
QSL-G1/8-8	Push-in L-fitting · Push-in fittings
QSL-G1/4-8	Push-in L-fitting · Push-in fittings
QSL-G3/8-8	Push-in L-fitting · Push-in fittings
QSL-G1/4-10	Push-in L-fitting · Push-in fittings
QSL-G3/8-10	Push-in L-fitting · Push-in fittings
QSL-G3/8-12	Push-in L-fitting · Push-in fittings
QSLL-G1/8-4	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6	Push-in L-fitting, long · Push-in fittings
QSLL-G1/4-6	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8	Push-in L-fitting, long · Push-in fittings
QSLL-G1/4-8	Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-8	Push-in L-fitting, long · Push-in fittings
QSLL-G1/4-10	Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-10	Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-12	Push-in L-fitting, long · Push-in fittings
QS-G3/8-16	Push-in fitting · Push-in fittings
QSL-G3/8-16	Push-in L-fitting · Push-in fittings
QS-G1/4-12	Push-in fitting · Push-in fittings
QSL-G1/4-12	Push-in L-fitting · Push-in fittings
UC-1/8-50	Silencer · Silencer
UC-1/4-20	Silencer · Silencer
CAPC-F1-E-M12	Electrical sub-base · Electrical accessories
UC-3/8-20	Silencer · Silencer
NPQH-LL-G18-Q6-P10	Push-in L-fitting, long · Push-in fittings
NPQH-LL-G18-Q8-P10	Push-in L-fitting, long · Push-in fittings
NPQH-LL-G14-Q8-P10	Push-in L-fitting, long · Push-in fittings
NPQH-LL-G38-Q10-P10	Push-in L-fitting, long · Push-in fittings
NPQH-L-G18-Q6-P10	Push-in L-fitting · Push-in fittings
NPQH-L-G18-Q8-P10	Push-in L-fitting · Push-in fittings
NPQH-L-G14-Q8-P10	Push-in L-fitting · Push-in fittings
NPQH-L-G38-Q8-P10	Push-in L-fitting · Push-in fittings
NPQH-L-G38-Q10-P10	Push-in L-fitting · Push-in fittings
NPQH-D-G18-Q6-P10	Push-in fitting · Push-in fittings
NPQH-D-G18-Q8-P10	Push-in fitting · Push-in fittings
NPQH-D-G14-Q8-P10	Push-in fitting · Push-in fittings
NPQH-D-G38-Q8-P10	Push-in fitting · Push-in fittings
NPQH-D-G38-Q10-P10	Push-in fitting · Push-in fittings
UC-3/8	Silencer · Silencer
CTEU-EP-EX1C	Bus node · Electrical accessories
