Festo
MPA-FB-VI
MFR #MPA-FB-VI
SKU #YLSABGWZTDXERP

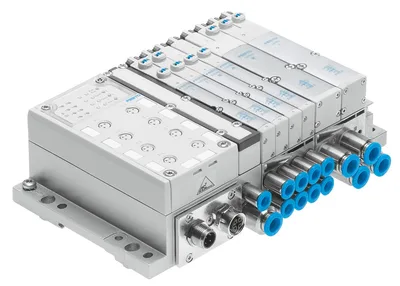

Photo may not represent actual item. Refer to name and product specs for all details.
Festo MPA-ASI-VI
Valve terminal. Valve terminals for universal applications. High-performance valves in a sturdy metal housing. Metal linking. Two valve sizes can be combined. Excellent communication thanks to serial linking. Fieldbus interface via CPX. Max. 128 valves
Electrical controlAS-i
Electrical I/O systemYes
Terminal type32
Media temperature-5, 50
Ambient temperature-5, 50
Storage temperature-20, 40
About This Product
Valve terminal. Valve terminals for universal applications. High-performance valves in a sturdy metal housing. Metal linking. Two valve sizes can be combined. Excellent communication thanks to serial linking. Fieldbus interface via CPX. Max. 128 valves
Festo MPA-ASI-VI
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Electrical controlAS-i
Electrical I/O systemYes
Terminal type32
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-5, 50
Ambient temperature-5, 50
Storage temperature-20, 40
Relative air humidityMax. 90% at 40 °C
Degree of protectionIP67
Corrosion resistance class CRC0 - No corrosion stress
Operating pressure-0.09, 1
Operating pressure-0.9, 10
Pilot pressure0.3, 0.8
Pilot pressure3, 8
LABS (PWIS) conformityVDMA24364-B1/B2-L
CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
KC markKC-EMV
ApprovalRCM, c UL us - Recognised (Oil)
Explosion protectionZone 1 (UKEX), Zone 2 (ATEX), Zone 21 (UKEX)
ATEX category gasII 3G
Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)
Explosion ignition protection type for gasEx ec IIC T4 Gc X
Explosion ambient temperature-5°C <= Ta <= +50°C
Certificate issuing authorityMH19482
Note on materialsRoHS compliant
Valve terminal structureModular, valve sizes can be mixed
Max. number of valve positions8
Max. number of pressure zones3
Type of actuationElectrical
Valve function2/2-way, single solenoid, closed, 2x3/2 closed monostable, 2x3/2 open monostable, 2x3/2-way, open/closed, monostable, 3/2-way, single solenoid, closed, 3/2-way, single solenoid, open, 5/2-way, double
DesignPiston gate valve, Poppet valve with spring return
Valve size14
Pilot air supplyExternal, Internal
Max. standard nominal flow rate360 l/min at 10 mm, 550 l/min at 14 mm, 700 l/min at 20 mm
Suitability for vacuumYes
pneumatic working portM7, G1/8, QS-4, QS-6, QS-8, QS-3/16, QS-1/4, QS-5/16
Signal status displayLED
Nominal operating voltage DC24
Permissible voltage fluctuations+/-25%
Accessories 231
Genuine accessories that can be used with the Festo MPA-ASI-VI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| VMPA14-M1H-KS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-NS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-DS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-HS-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-J-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-M-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-B-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-E-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-G-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-H-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-D-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-I-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-MS-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-KS-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-NS-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-X-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-W-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-K-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-N-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-DS-PI | Solenoid valve · Valves | |
| VMPA14-M1HF-HS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-J-PI | Solenoid valve · Valves | |
| VMPA14-M1H-M-PI | Solenoid valve · Valves | |
| VMPA14-M1H-B-PI | Solenoid valve · Valves | |
| VMPA14-M1H-K-PI | Solenoid valve · Valves | |
| VMPA14-M1H-N-PI | Solenoid valve · Valves | |
| VMPA14-M1H-H-PI | Solenoid valve · Valves | |
| VMPA14-M1H-D-PI | Solenoid valve · Valves | |
| VMPA14-M1H-I-PI | Solenoid valve · Valves | |
| VMPA14-M1H-E-PI | Solenoid valve · Valves | |
| VMPA14-M1H-G-PI | Solenoid valve · Valves | |
| VMPA14-M1H-X-PI | Solenoid valve · Valves | |
| VMPA14-M1H-W-PI | Solenoid valve · Valves | |
| VMPA14-M1H-MS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-J-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-M-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-B-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-G-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-E-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-K-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-N-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-D-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-H-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-I-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-MS-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-NS-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-KS-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-DS-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-HS-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-J-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-M-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-E-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-B-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-G-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-K-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-N-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-H-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-D-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-I-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-KS-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-MS-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-NS-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-DS-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA14-M1H-HS-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA1-M1H-MSC-PI | Solenoid valve · Valves | |
| VMPA14-M1H-MSC-PI | Solenoid valve · Valves | |
| VMPA2-M1H-MSC-PI | Solenoid valve · Valves | |
| VMPA14-M1H-ES-PI | Solenoid valve · Valves | |
| VMPA14-M1H-IS-PI | Solenoid valve · Valves | |
| VMPA14-M1H-IU-PI | Solenoid valve · Valves | |
| VMPA14-M1H-EU-PI | Solenoid valve · Valves | |
| VMPA-FT-NW0.3-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA-FT-NW0.5-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA-FT-NW0.7-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA-FT-NW1.0-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA-FT-NW1.2-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA-FT-NW1.5-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA1-FTI-10 | Retaining bracket · Mounting accessories | |
| VMPA1-FT-NW0.3-1.7 | Fixed flow restrictor-SET · Mounting accessories | |
| VMPA-FT-NW1.7-10 | Fixed flow restrictor · Mounting accessories | |
| VMPA14-FTI | Retainer · Mounting accessories | |
| VMPA2-FTI | Retainer · Mounting accessories | |
| VMPA14-FT-NW0.3-1.7 | Flow control SET · Mounting accessories | |
| VMPA2-FT-NW0.3-1.7 | Flow control SET · Mounting accessories | |
| B-1/8 | Blanking plug · Other connectors | |
| NRH-35-2000 | DIN mounting rail · Mounting accessories | |
| QSM-M7-4-I | Push-in fitting · Push-in fittings | |
| QSM-M7-6-I | Push-in fitting · Push-in fittings | |
| B-M7 | Blanking plug · Other connectors | |
| QSM-M7-3/16-I-U-M | Push-in fitting · Push-in fittings | |
| QSM-M7-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/4-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/4-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| VMPA1-M1H-M-PI | Solenoid valve · Valves | |
| VMPA1-M1H-J-PI | Solenoid valve · Valves | |
| VMPA1-M1H-B-PI | Solenoid valve · Valves | |
| VMPA1-M1H-G-PI | Solenoid valve · Valves | |
| VMPA1-M1H-E-PI | Solenoid valve · Valves | |
| VMPA1-M1H-K-PI | Solenoid valve · Valves | |
| VMPA1-M1H-N-PI | Solenoid valve · Valves | |
| VMPA1-M1H-H-PI | Solenoid valve · Valves | |
| VMPA1-M1H-D-PI | Solenoid valve · Valves | |
| VMPA1-DPU | Seal · General accessories | |
| VMPA1-DPU-P | Seal · General accessories | |
| VMPA1-DPU-RS | Seal · General accessories | |
| VMPA1-DPU-PRS | Seal · General accessories | |
| VMPA1-DP | Seal · General accessories | |
| VMPA1-DP-P | Seal · General accessories | |
| VMPA1-DP-RS | Seal · General accessories | |
| VMPA1-DP-PRS | Seal · General accessories | |
| VMPA-APU | Plate · General accessories | |
| VMPA-AP | Plate · General accessories | |
| VMPA1-M1H-M-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-J-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-B-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-G-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-E-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-K-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-N-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-H-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-D-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-M-S-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-J-S-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-B-S-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-G-S-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-E-S-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-K-S-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-N-S-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-H-S-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-D-S-M7-PI | Solenoid valve · Valves | |
| MPA-S-DE | Description · General accessories | |
| MPA-S-EN | Description · General accessories | |
| VMPA1-M1H-X-PI | Solenoid valve · Valves | |
| VMPA-BG-RW | Mounting · Mounting accessories | |
| VMPA2-M1H-M-PI | Solenoid valve · Valves | |
| VMPA2-M1H-J-PI | Solenoid valve · Valves | |
| VMPA2-M1H-B-PI | Solenoid valve · Valves | |
| VMPA2-M1H-G-PI | Solenoid valve · Valves | |
| VMPA2-M1H-E-PI | Solenoid valve · Valves | |
| VMPA2-M1H-K-PI | Solenoid valve · Valves | |
| VMPA2-M1H-N-PI | Solenoid valve · Valves | |
| VMPA2-M1H-H-PI | Solenoid valve · Valves | |
| VMPA2-M1H-D-PI | Solenoid valve · Valves | |
| VMPA2-M1H-X-PI | Solenoid valve · Valves | |
| VMPA2-M1H-M-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-J-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-B-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-G-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-E-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-K-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-N-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-H-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-D-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-M-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-J-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-B-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-G-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-E-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-K-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-N-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-H-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-D-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA1-M1H-W-PI | Solenoid valve · Valves | |
| VMPA2-M1H-W-PI | Solenoid valve · Valves | |
| VMPA-AP-3/8 | Plate · General accessories | |
| VPPM-6TA-L-1-F-0L2H-S1 | Proportional-pressure regulator · Valves | |
| VPPM-6TA-L-1-F-0L6H-S1 | Proportional-pressure regulator · Valves | |
| VPPM-6TA-L-1-F-0L10H-S1 | Proportional-pressure regulator · Valves | |
| VPPM-6TA-L-1-F-0L2H | Proportional-pressure regulator · Valves | |
| VPPM-6TA-L-1-F-0L6H | Proportional-pressure regulator · Valves | |
| VPPM-6TA-L-1-F-0L10H | Proportional-pressure regulator · Valves | |
| VMPA-FB-AP-P1 | Sub-base · General accessories | |
| VMPA2-B8-R1C2-C-10 | Regulator plate · Connection accessories | |
| VMPA2-B8-R2C2-C-10 | Regulator plate · Connection accessories | |
| VMPA2-B8-R3C2-C-10 | Regulator plate · Connection accessories | |
| VMPA2-B8-R6C2-C-10 | Regulator plate · Connection accessories | |
| VMPA2-B8-R7C2-C-10 | Regulator plate · Connection accessories | |
| VMPA1-M1H-I-PI | Solenoid valve · Valves | |
| VMPA2-M1H-I-PI | Solenoid valve · Valves | |
| VMPA1-M1H-I-M7-PI | Solenoid valve · Valves | |
| VMPA1-M1H-I-S-M7-PI | Solenoid valve · Valves | |
| VMPA2-M1H-I-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-M1H-I-S-G1/8-PI | Solenoid valve · Valves | |
| VMPA2-B8-R1C2-C-06 | Regulator plate · Connection accessories | |
| VMPA2-B8-R2C2-C-06 | Regulator plate · Connection accessories | |
| VMPA2-B8-R3C2-C-06 | Regulator plate · Connection accessories | |
| VMPA2-B8-R6C2-C-06 | Regulator plate · Connection accessories | |
| VMPA2-B8-R7C2-C-06 | Regulator plate · Connection accessories | |
| VMPA1-M1H-KU-PI | Solenoid valve · Valves | |
| VMPA1-M1H-NU-PI | Solenoid valve · Valves | |
| VMPA1-M1H-HU-PI | Solenoid valve · Valves | |
| VMPA1-M1H-MU-PI | Solenoid valve · Valves | |
| VMPA1-M1H-KS-PI | Solenoid valve · Valves | |
| VMPA1-M1H-NS-PI | Solenoid valve · Valves | |
| VMPA1-M1H-HS-PI | Solenoid valve · Valves | |
| VMPA1-M1H-DS-PI | Solenoid valve · Valves | |
| MPA-ELEKTRONIK-DE | Description · General accessories | |
| MPA-ELEKTRONIK-EN | Description · General accessories | |
| VMPA2-M1H-NS-PI | Solenoid valve · Valves | |
| VMPA2-M1H-KS-PI | Solenoid valve · Valves | |
| VMPA2-M1H-DS-PI | Solenoid valve · Valves | |
| VMPA2-M1H-HS-PI | Solenoid valve · Valves | |
| ASLR-D-L1 | Inscription label holder · General accessories | |
| VMPA2-M1H-MS-PI | Solenoid valve · Valves | |
| VMPA1-M1H-MS-PI | Solenoid valve · Valves | |
| VPPM-8TA-L-1-F-0L2H-S1C1 | Proportional-pressure regulator · Valves | |
| VPPM-8TA-L-1-F-0L6H-S1C1 | Proportional-pressure regulator · Valves | |
| VPPM-8TA-L-1-F-0L10H-S1C1 | Proportional-pressure regulator · Valves | |
| VPPM-8TA-L-1-F-0L2H-C1 | Proportional-pressure regulator · Valves | |
| VPPM-8TA-L-1-F-0L6H-C1 | Proportional-pressure regulator · Valves | |
| VPPM-8TA-L-1-F-0L10H-C1 | Proportional-pressure regulator · Valves | |
| VMPA2-M1BH-M-PI | Solenoid valve · Valves | |
| VMPA2-M1BH-J-PI | Solenoid valve · Valves | |
| VMPA2-M1BH-B-PI | Solenoid valve · Valves | |
| VMPA2-M1BH-G-PI | Solenoid valve · Valves | |
| VMPA2-M1BH-E-PI | Solenoid valve · Valves | |
| VMPA2-M1BH-X-PI | Solenoid valve · Valves | |
| VMPA2-M1BH-W-PI | Solenoid valve · Valves | |
| VMPA-FB-AP-1-P5 | Sub-base · General accessories | |
| VMPA1-M1H-IS-PI | Solenoid valve · Valves | |
| VMPA1-M1H-ES-PI | Solenoid valve · Valves | |
| VMPA1-M1H-IU-PI | Solenoid valve · Valves | |
| VMPA1-M1H-EU-PI | Solenoid valve · Valves | |
| VMPA-FB-AP-1-EMG-P5 | Sub-base · General accessories | |
| VMPA-FB-AP-1-EMM-P5-SK | Sub-base · General accessories | |
| VMPA-FB-AP-1-EMM-P5-SL | Sub-base · General accessories | |
| VMPA1-DP-PRS-Y | Seal · General accessories | |
| VMPA1-DP-Y | Seal · General accessories |
Related Products
View Details
Festo
VTSA-ASI
MFR #VTSA-ASI
SKU #YLSH9BHU9UEMKCJ
View Details
Festo
VTUB-12
MFR #VTUB-12
SKU #YLS1UR4IQGNNPEP
View Details
Festo
VTSA-F-FB-NPT
MFR #VTSA-F-FB-NPT
SKU #YLSBW6GNVWEGMI
View Details
Festo
CPV10-EX-VI
MFR #CPV10-EX-VI
SKU #YLS28PGIGSS2H
View Details
Festo
MPA-MPM-VI
MFR #MPA-MPM-VI
SKU #YLSDGFCIEBG6EB
View Details
Festo
MS9-FRM
MFR #MS9-FRM
SKU #YLSFOA6EBWAVVVG
View Details
Festo
VTSA-ASI-NPT
MFR #VTSA-ASI-NPT
SKU #YLSPHFUGZA4IOOM
View Details
Festo
VTSA-F-MP
MFR #VTSA-F-MP
SKU #YLSOWRDUGF7EXJX
View Details
Festo
VTSA-FB
MFR #VTSA-FB
SKU #YLS2RO5UEH8BHR0
Featured Products
View Details
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
View Details
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
View Details
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Related Searches
Festo MPA-ASI-VI priceFesto MPA-ASI-VI quotebuy Festo MPA-ASI-VIMPA-ASI-VI priceMPA-ASI-VI stock availabilityFesto spare partsFesto MPA-ASI-VI equivalentFesto MPA-ASI-VI specifications
