How can I get a price quote for FESTO VMPA1-M1H-NU-PI?

You can request a fast quote for FESTO VMPA1-M1H-NU-PI from Yılsa Engineering. Reference part number CEY-937FC781E39C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VMPA1-M1H-NU-PI in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VMPA1-M1H-NU-PI genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VMPA1-M1H-NU-PI?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

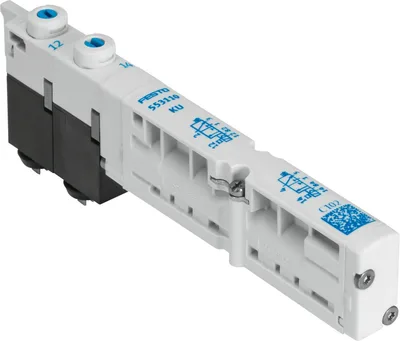

FESTO VMPA1-M1H-NU-PI

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

FESTOMFR # VMPA1-M1H-NU-PISKU # CEY-937FC781E39C

Valve function2x3/2 open monostable

Type of actuationElectrical

Valve size10

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

FESTO VMPA1-M1H-NU-PI

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function2x3/2 open monostable

Type of actuationElectrical

Valve size10

Standard nominal flow rate (standardised to DIN 1343)190

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPoppet valve with spring return

Type of resetMechanical spring

Approvalc UL us - Recognised (Oil)

Certificate issuing authorityUL MH19482

Degree of protectionIP65, In mounted state, To IEC 60529

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Flow directionReversible

Symbol00992875

lapUnderlap

Signal status displayYes

Pilot pressure0.4, 0.8

Pilot pressure4, 8

Suitability for vacuumYes

Standard nominal flow rate with QS-6190

Switching time off8

Switching time on10

Max. positive test pulse with 0 signal400

Max. negative test pulse with 1 signal200

Permissible voltage fluctuations+/-25%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 40

Media temperature-5, 50

Relative air humidityMax. 90% at 40 °C

Ambient temperature-5, 50

Max. tightening torque for valve mounting0.25

Product weight42

Type of mountingWith through-hole

Note on materialsRoHS compliant

Material sealsNBR

Material housingReinforced PPA
