How can I get a price quote for Festo VMPA1-M1H-EU-PI?

You can request a fast quote for Festo VMPA1-M1H-EU-PI from Yılsa Engineering. Reference part number YLS0YY6DFMI5IWF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VMPA1-M1H-EU-PI in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VMPA1-M1H-EU-PI genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VMPA1-M1H-EU-PI?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

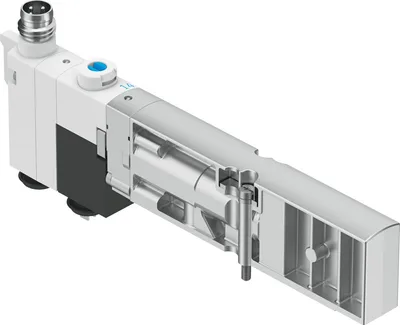

Festo VMPA1-M1H-EU-PI

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

FestoMFR # VMPA1-M1H-EU-PISKU # YLS0YY6DFMI5IWF

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Valve size10

pneumatic working portM7

Operating voltage24 V DC

Operating pressure0.3, 0.8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

Festo VMPA1-M1H-EU-PI

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Valve size10

pneumatic working portM7

Operating voltage24 V DC

Operating pressure0.3, 0.8

Operating pressure3, 8

DesignPoppet valve with spring return

Type of resetMechanical spring

Degree of protectionIP65, In mounted state, To IEC 60529

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionNon-reversible

Symbol00997594

lapUnderlap

Signal status displayYes

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Suitability for vacuumNo

Permissible voltage fluctuations+/-25%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 60

Media temperature-5, 50

Relative air humidityMax. 90% at 40 °C

Ambient temperature-5, 50

Max. tightening torque for valve mounting0.65

Product weight32

Switch-off point min.0.05

Switch-on point0.2

Switch-on point max.0.3

Type of mountingWith through-hole

Pilot air port 12/14M7

Pilot exhaust port 82/84M7

Pneumatic connection, port 1M7

Pneumatic connection, port 2Internal

Pneumatic connection, port 3M7

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingReinforced PPA

Material screwsCoated steel
