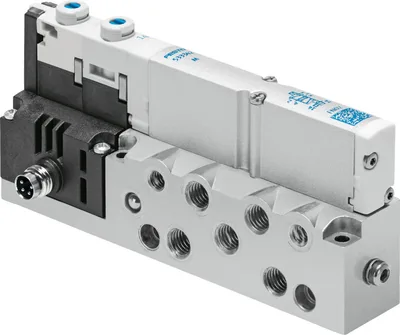

FESTO VMPA1-M1H-G-S-M7-PI

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

FESTOMFR # VMPA1-M1H-G-S-M7-PISKU # CEY-937FC7820CFF

Valve function5/3-way, closed

Type of actuationElectrical

Valve size10

pneumatic working portM7

Operating voltage24 V DC

Operating pressure-0.09, 1

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

FESTO VMPA1-M1H-G-S-M7-PI

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/3-way, closed

Type of actuationElectrical

Valve size10

Standard nominal flow rate (standardised to DIN 1343)320

pneumatic working portM7

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPiston gate valve

Type of resetMechanical spring

Approvalc UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Degree of protectionIP65, In mounted state, To IEC 60529

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionReversible

Symbol00991020

lapOverlap

Signal status displayYes

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Suitability for vacuumYes

Standard nominal flow rate with QS-6320

Switching time off35

Switching time on10

Switching time reversal15

Max. positive test pulse with 0 signal400

Max. negative test pulse with 1 signal200

Permissible voltage fluctuations+/-25%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 40

Media temperature-5, 50

Relative air humidityMax. 90% at 40 °C

Ambient temperature-5, 50

Max. tightening torque for valve mounting0.25

Product weight143

Electrical connectionM8x1, Plug, To EN 60947-5-2

Type of mountingWith through-hole

Pilot air port 12/14M5

Pilot exhaust port 82/84M5

Pneumatic connection, port 1M7

Pneumatic connection, port 2M7

Pneumatic connection, port 3M7

Pneumatic connection, port 4M7

Pneumatic connection, port 5M7

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Accessories 18

Genuine accessories that can be used with the FESTO VMPA1-M1H-G-S-M7-PI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
B-M5	Blanking plug · Other connectors
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSM-M7-4-I	Push-in fitting · Push-in fittings
QSM-M7-6-I	Push-in fitting · Push-in fittings
D-M5I-M7A-ISK	Reducing nipple · Other connectors
B-M7	Blanking plug · Other connectors
VMPA1-IC-AP-1	Sub-base · Connection accessories
VMPA1-IC-AP-S-1	Sub-base · Connection accessories
B-M5-100	Blanking plug · Other connectors
NEBA-M8G4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8G4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-10-N-LE4	Connecting cable · Connecting cables
B-M5-F1A	Blanking plug · Other connectors
B-M7-F1A	Blanking plug · Other connectors
