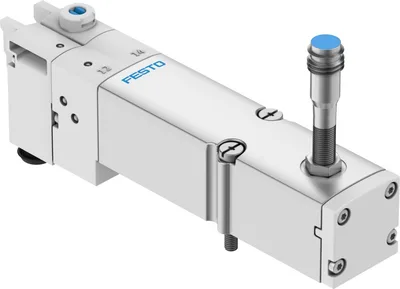

Festo VMPA2-M1H-MSC-PI

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

FestoMFR # VMPA2-M1H-MSC-PISKU # YLS2FDNBYMYVETV

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size20

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

Festo VMPA2-M1H-MSC-PI

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size20

Standard nominal flow rate (standardised to DIN 1343)670, 840

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

DesignPiston gate valve

Type of resetMechanical spring

Approvalc UL us - Recognised (Oil)

Degree of protectionIP65, In mounted state, To IEC 60529

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Flow directionReversible

Symbol00997391

Switching element functionN/C contact

lapOverlap

Switching position indicatorVia built-in sensor

Signal status displayYes

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Suitability for vacuumYes

Note on standard nominal flow rateMPA-L: 840 l/min, MPA-S: 670 l/min

Standard nominal flow rate with QS-8670

Standard nominal flow rate with QS-10840

Max. switching frequency2

Switching time off36

Switching time on8

Max. positive test pulse with 0 signal400

Max. negative test pulse with 1 signal900

Switching outputPNP

Permissible voltage fluctuations+/-25%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 40

Media temperature-5, 50

Relative air humidityMax. 90% at 40 °C

Ambient temperature-5, 50

Max. tightening torque for valve mounting0.65

Product weight140

Operating voltage range, DC sensor10, 30

Short-circuit strength sensorPulsed

Idle current sensor10

Max. output current sensor200

Max. switching frequency sensor5000

Residual ripple sensor±10%

Voltage drop sensor2

Sensor connectionPlug, 3-pin, M8x1

Type of mountingWith through-hole

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium
