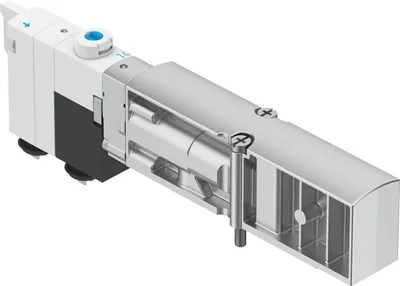

Festo VMPA14-M1H-IS-PI

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

FestoMFR # VMPA14-M1H-IS-PISKU # YLSXF05PT97UURJ

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Valve size14

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure0.3, 0.8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

Festo VMPA14-M1H-IS-PI

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Valve size14

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure0.3, 0.8

Operating pressure3, 8

DesignPoppet valve with spring return

Type of resetMechanical spring

Degree of protectionIP65, In mounted state, To IEC 60529

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00997584

lapUnderlap

Signal status displayYes

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Suitability for vacuumNo

Permissible voltage fluctuations+/-25%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 60

Media temperature-5, 50

Relative air humidityMax. 90% at 40 °C

Ambient temperature-5, 50

Max. tightening torque for valve mounting0.25

Product weight36

Switch-off point min.0.05

Switch-on point0.2

Switch-on point max.0.3

Type of mountingWith through-hole

Pilot exhaust port 82/84Internal

Pneumatic connection, port 1Internal

Pneumatic connection, port 2Internal

Pneumatic connection, port 3G1/8

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingReinforced PPA

Material screwsCoated steel
