How can I get a price quote for FESTO VMPA2-M1H-E-PI?

You can request a fast quote for FESTO VMPA2-M1H-E-PI from Yılsa Engineering. Reference part number CEY-937FC781FD59. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VMPA2-M1H-E-PI in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VMPA2-M1H-E-PI genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VMPA2-M1H-E-PI?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

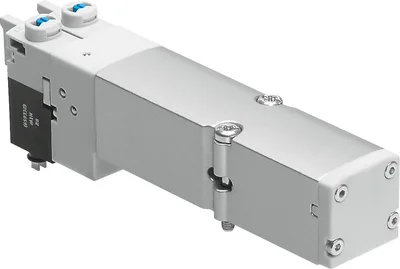

FESTO VMPA2-M1H-E-PI

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

FESTOMFR # VMPA2-M1H-E-PISKU # CEY-937FC781FD59

Valve function5/3 exhausted

Type of actuationElectrical

Valve size20

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. For valve terminal MPA. As individual valve mounted on sub-base. Comprehensive range of valves

FESTO VMPA2-M1H-E-PI

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/3 exhausted

Type of actuationElectrical

Valve size20

Standard nominal flow rate (standardised to DIN 1343)590

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPiston gate valve

Type of resetMechanical spring

Approvalc UL us - Recognised (Oil)

Degree of protectionIP65, To IEC 60529

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Flow directionReversible

Symbol00991032

lapOverlap

Signal status displayYes

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Suitability for vacuumYes

Standard nominal flow rate with QS-8590

Standard nominal flow rate with QS-10700

Switching time off47

Switching time on11

Switching time reversal23

Max. positive test pulse with 0 signal400

Max. negative test pulse with 1 signal900

Permissible voltage fluctuations+/-25%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 40

Media temperature-5, 50

Relative air humidityMax. 90% at 40 °C

Ambient temperature-5, 50

Max. tightening torque for valve mounting0.65

Product weight100

Type of mountingWith through-hole

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium
