How can I get a price quote for Festo HPPF-8-16-A-S?

You can request a fast quote for Festo HPPF-8-16-A-S from Yılsa Engineering. Reference part number YLS3GT6HWOI8DBJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo HPPF-8-16-A-S in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo HPPF-8-16-A-S genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo HPPF-8-16-A-S?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

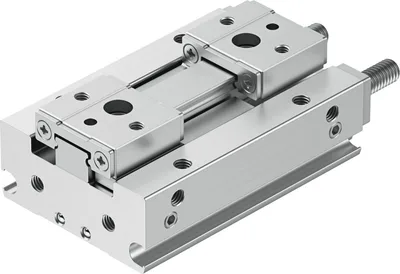

Festo HPPF-8-16-A-S

Parallel gripper. Optimal: compact and flat design. Durable: integrated guide and sturdy design. Economical: best price/performance ratio. Can be combined: available in many sizes and strokes. Sustainable thanks to reduced material use and maintenance-free over the entire service life.

FestoMFR # HPPF-8-16-A-SSKU # YLS3GT6HWOI8DBJ

Size8

Total stroke16

Stroke per gripper jaws8

Max. angular gripper jaw backlash ax, ay0

Max. gripper jaw backlash Sz0

Repetition accuracy, gripper0.03

Have questions?Chat on WhatsApp

About This Product

Festo HPPF-8-16-A-S

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size8

Total stroke16

Stroke per gripper jaws8

Max. angular gripper jaw backlash ax, ay0

Max. gripper jaw backlash Sz0

Repetition accuracy, gripper0.03

Number of gripper jaws2

Drive systemPneumatic

Mounting positionAny

Mode of operationDouble-acting

CushioningElastic cushioning rings/plates at both ends

Gripper functionParallel

Gripper force back-upNone

DesignFlat mounting method for gripper fingers, Rack and pinion, Force pilot operated motion sequence

GuideBall guide

Position detectionVia proximity switch

Symbol00991894

VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug

Operating pressure0.15, 0.7

Operating pressure1.5, 7

Operating pressure21.75, 101.5

Max. operating frequency of gripper2

Min. opening time at 0.6 MPa (6 bar, 87 psi)32

Min. closing time at 0.6 MPa (6 bar, 87 psi)31

Max. mass per external gripper finger20

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Ambient temperature-10, 60

Total gripping force, opening, 0.6MPa (6bar, 87 psi)54.44

Total gripping force, closing, 0.6MPa (6bar, 87 psi)54.44

Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi)27.22

Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)27.22

Max. force on gripper jaw Fz static60

Max. moment Mx0.9

Max. moment My0.4

Max. moment Mz0.4

Product weight95

Type of mountingDirect mounting via through-hole, Direct mounting via thread

Pneumatic connectionM3

Note on materialsRoHS compliant

Material cover capWrought aluminium alloy, anodised

Material coverAnodised wrought aluminium alloy

Material end plateHigh-alloy stainless steel

Material housingAnodised wrought aluminium alloy

Material gripper jawsHigh-alloy steel

Material piston sealTPE-U(PU)

Material o-ringNBR

Material screwsCoated steel

Gear rack materialHigh-alloy stainless steel

Accessories 55

Genuine accessories that can be used with the Festo HPPF-8-16-A-S motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSM-M3-3	Push-in fitting · Fittings
QSML-M3-3	Push-in L-fitting · Fittings
GRLA-M3-QS-3	One-way flow control valve · Function fittings
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
SMT-10G-NS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SMT-10G-NS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
SMT-10G-PS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
SMT-10G-PS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-3-I	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
GRLA-M3	One-way flow control valve · Function fittings
GRLO-M3	Throttle valve · Function fittings
GRLO-M3-QS-3	Throttle valve · Function fittings
SMT-10M	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE3	Connecting cable · Connecting cables
SDBC-MSB-1L-PU-K-2-LE	Proximity sensor · Cylinder sensors for direct mounting
SDBC-MSB-1L-NU-K-2-LE	Proximity sensor · Cylinder sensors for direct mounting
SDBC-MSB-1L-ZU-K-2-LE	Proximity sensor · Cylinder sensors for direct mounting
SDBC-MSB-1L-PU-K-0.3-M8	Proximity sensor · Cylinder sensors for direct mounting
SDBC-MSB-1L-NU-K-0.3-M8	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-L-M12	Proximity switch · Cylinder sensors for direct mounting
