How can I get a price quote for FESTO GRLO-M3-QS-3?

You can request a fast quote for FESTO GRLO-M3-QS-3 from Yılsa Engineering. Reference part number CEY-937FC7823932. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO GRLO-M3-QS-3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO GRLO-M3-QS-3 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO GRLO-M3-QS-3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

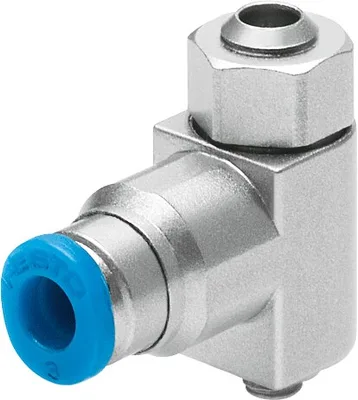

FESTO GRLO-M3-QS-3

Throttle valve. Flow control valve, flow control at both ends. Standard or mini flow control valve. Precision adjustment for low and medium speeds. Connections: thread at both ends, thread/push-in connector. Connections: L-outlet. Metal version

FESTOMFR # GRLO-M3-QS-3SKU # CEY-937FC7823932

Valve functionFlow control function

Pneumatic connection, port 1M3

Pneumatic connection, port 2QS-3

Adjustment componentSlotted head screw

Type of mountingScrew-in

Operating pressure0, 10

Have questions?Chat on WhatsApp

About This Product

FESTO GRLO-M3-QS-3

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve functionFlow control function

Pneumatic connection, port 1M3

Pneumatic connection, port 2QS-3

Adjustment componentSlotted head screw

Type of mountingScrew-in

Standard nominal flow rate in flow control direction41

Operating pressure0, 10

Ambient temperature-10, 60

Mounting positionAny

Symbol00991454

Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)95

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Media temperature-10, 60

Max. tightening torque0.3

Product weight7

Material screwed plugBrass

Note on materialsRoHS compliant

Material sealsNBR

Material release ringPOM

Material adjusting screwBrass

Material swivel fittingDie-cast zinc

Accessories 21

Genuine accessories that can be used with the FESTO GRLO-M3-QS-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-3X0,5-SI	Plastic tubing · Tubing
PUN-3X0,5-BL	Plastic tubing · Tubing
PUN-3X0,5-SW	Plastic tubing · Tubing
PUN-3X0,5-RT	Plastic tubing · Tubing
PUN-3X0,5-GE	Plastic tubing · Tubing
PUN-3X0,5-GN	Plastic tubing · Tubing
PUN-H-3X0,5-NT	Plastic tubing · Tubing
PUN-H-3X0,5-BL	Plastic tubing · Tubing
PUN-H-3X0,5-SW	Plastic tubing · Tubing
PUN-3X0,5-SI-500	Plastic tubing · Tubing
PUN-3X0,5-BL-500	Plastic tubing · Tubing
PUN-3X0,5-SW-500	Plastic tubing · Tubing
PUN-H-3X0,5-SW-500	Plastic tubing · Tubing
PUN-H-3X0,5-BL-500	Plastic tubing · Tubing
PUN-H-3X0,5-NT-500	Plastic tubing · Tubing
PUN-H-3X0,5-SI-500	Plastic tubing · Tubing
PUN-H-3X0,5-SI	Plastic tubing · Tubing
PUN-H-3X0,5-RT	Plastic tubing · Tubing
PUN-H-3X0,5-GN	Plastic tubing · Tubing
PUN-H-3X0,5-GE	Plastic tubing · Tubing
PFAN-3X0,5-NT	Plastic tubing · Tubing
