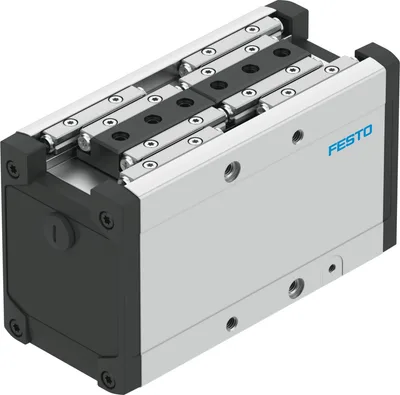

Festo HEPP-36-45-EC

Parallel gripper. Powerful and flexible. Dynamic motor for adjustable motion response. Easy, adjustable parameterisation. Compact thanks to integrated controller. High precision thanks to cross-roller guide. Safe thanks to integrated holding brake. Control via PROFINET®, EtherNet/IP®, EtherCat®. Sustainable in production thanks to reduced use of materials. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # HEPP-36-45-ECSKU # YLSMYM2IF6DJGSY

Size36

Total stroke45

Stroke per gripper jaws22.5

Max. gripper jaw clearance Sy0.35

Repetition accuracy in ± mm0.02

Number of gripper jaws2

Have questions?Chat on WhatsApp

About This Product

Festo HEPP-36-45-EC

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size36

Total stroke45

Stroke per gripper jaws22.5

Max. gripper jaw clearance Sy0.35

Repetition accuracy in ± mm0.02

Number of gripper jaws2

Drive systemElectrical

Mounting positionAny

Controller operating modeInterpolated mode via fieldbus

Gripper functionParallel

DesignToothed belt, Electric gripper, With ball screw

GuideRoller bearing guide

Position detectionMotor encoder

Configuration supportESI file

Symbol00992258

VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug

Rotor position sensorAbsolute encoder, single turn

Rotor position sensor, encoder measuring principlemagnetic

Ready status indicationLED

Positioning speed per gripper finger40

Positioning acceleration per gripper finger1

Gripping speed per gripper finger3

Number of MAC addresses4

Max. current consumption3000

Max. current consumption, load2

Max. current consumption, logic1

Nominal operating voltage DC24

Nominal voltage for logic power supply DC24

Nominal voltage load voltage DC24

Nominal motor current1.3

Permissible range for load power supply±10%

Permissible range for logic voltage±10%

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Relative air humidityNon-condensing

Sound pressure level60

Degree of protectionIP40

Ambient temperature0, 50

Total gripping force520

Gripping force per gripper jaw260

Mass moment of inertia54

Max. force on gripper jaw Fz static1100

Max. torque at gripper Mx static13.9

Max. torque at gripper My static34.5

Max. torque at gripper Mz static13.9

Rated load2

Nominal torque0.183

Lubrication interval for guide components1

Product weight2100

Communication profileCiA402, EoE (Ethernet over EtherCAT), FoE (File over EtherCAT)

Field bus, connection typeSocket

Field bus, connection systemM12x1, D-coded to EN 61076-2-101

Field bus, connection pattern4

Field bus, protocolEtherCAT®

Electrical connection2x M12

Fieldbus linkEtherCAT®

Type of mountingVia female thread and centring sleeve

Note on materialsRoHS compliant

Material housingAnodised aluminium

Material gripper jawsSteel

Accessories 44

Genuine accessories that can be used with the Festo HEPP-36-45-EC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBC-D8G4-ES-7.5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-10-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-0.3-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-0.5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-1-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-2-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-0.3-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-0.5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-1-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-2-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-7.5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-10-N-S-R3G4-ET	Connecting cable · Connecting cables
DHAS-GF-120-U-BU	Adaptive gripper finger · Mounting accessories
DHAS-GF-80-U-BU	Adaptive gripper finger · Mounting accessories
DHAS-ME-H9-120	Mounting kit · Mounting accessories
DHAS-ME-H9-80	Mounting kit · Mounting accessories
NEBC-D12G4-ES-0.5-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-1-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-3-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-5-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-10-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-1-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-3-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-5-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-10-S-R3G4-ET	Connecting cable · Connecting cables
NEBM-T12G4-R-3-LE4	Connecting cable · Connecting cables
NEBM-T12G4-R-5-LE4	Connecting cable · Connecting cables
NEBM-T12G4-R-10-LE4	Connecting cable · Connecting cables
NEBM-T12W4-R-3-LE4	Connecting cable · Connecting cables
NEBM-T12W4-R-5-LE4	Connecting cable · Connecting cables
NEBM-T12W4-R-10-LE4	Connecting cable · Connecting cables
DHAA-G-E8-55-B24-36	Adapter kit · Mounting accessories
DHAA-G-E19-45-B24-36	Adapter kit · Mounting accessories
DHAA-G-E21-60-B24-36	Adapter kit · Mounting accessories
DHAA-G-E21-90-B24-36	Adapter kit · Mounting accessories
DHAA-G-E21-70-B24-36	Adapter kit · Mounting accessories
DHAS-MA-B24-120	Mounting bracket · Mounting accessories
DHAS-MA-B24-80	Mounting bracket · Mounting accessories
DHAA-G-R1-20-B24-36	Adapter kit · Mounting accessories
DHAA-G-E8-75-B24-36	Adapter kit · Mounting accessories
DHAA-G-E19-60-B24-36	Adapter kit · Mounting accessories
DHAA-G-R1-25-B24-36	Adapter kit · Mounting accessories
