How can I get a price quote for Festo NEBM-T12W4-R-5-LE4?

You can request a fast quote for Festo NEBM-T12W4-R-5-LE4 from Yılsa Engineering. Reference part number YLSYIUNFY3HIKZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBM-T12W4-R-5-LE4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBM-T12W4-R-5-LE4 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBM-T12W4-R-5-LE4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

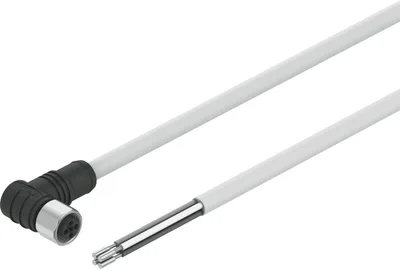

Festo NEBM-T12W4-R-5-LE4

Connecting cable. For stepper and servo motors. For motor controllers. For servo drive. Can be used in a wide temperature range. Suitable for energy chains. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # NEBM-T12W4-R-5-LE4SKU # YLSYIUNFY3HIKZ

Based on standardEN 61076-2-111

Cable designationWith inscription label holder

Product weight410

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Have questions?Chat on WhatsApp

About This Product

Festo NEBM-T12W4-R-5-LE4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Based on standardEN 61076-2-111

Cable designationWith inscription label holder

Product weight410

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletAngled

Electrical connection 1, connector systemM12x1, T-coded according to EN 61076-2-111

Electrical connection 1, number of connections/cores4

Electrical connection 1, used connections/cores4

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, connection patternSocket, M12x1 T-coded according to EN 61076-2-111, 4-pin

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores4

Electrical connection 2, used connections/cores4

Operational voltage range DC0, 60

Current rating at 40° C5

Immunity to surge1.5

ShieldingNo

Cable length5

Cable characteristicSuitable for robot applications

Test conditions cableTest conditions on request

Bending radius, fixed cable30

Bending radius, moving cable75

Cable diameter7.5

Cable diameter tolerance±0.2 mm

Cable structure4 x 0.75 mm²

Nominal cross section conductor0.75

Conductor nominal cross sectionAWG19

Wire endsStripped

Degree of protectionIP67

Note on degree of protectionIn mounted state

Ambient temperature-40, 80

Ambient temperature with moving cable-20, 80

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC0 - No corrosion stress

Material cable sheathPVC

Cable sheath colourBlack

Material housingTPE-U(PUR)

Housing colourBlack

Material screw-type lockHigh-alloy stainless steel

Material sealsHNBR

Material electrical contactGold-plated brass

Material insulating sheathPVC
