How can I get a price quote for Festo NEBC-D12G4-ES-1-S-R3G4-ET?

You can request a fast quote for Festo NEBC-D12G4-ES-1-S-R3G4-ET from Yılsa Engineering. Reference part number YLSVJ8UMRLLMLG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBC-D12G4-ES-1-S-R3G4-ET in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBC-D12G4-ES-1-S-R3G4-ET genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBC-D12G4-ES-1-S-R3G4-ET?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

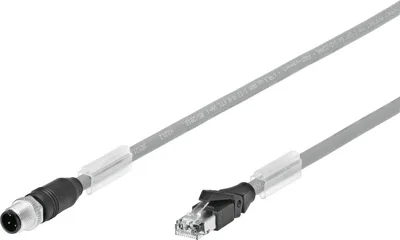

Festo NEBC-D12G4-ES-1-S-R3G4-ET

Connecting cable. Variants in easy-to-clean design. Standard variants, variants with shielding or as a hybrid cable. Variants suitable for energy chains. Variants with Ethernet, CANopen, I-Port or RS232

FestoMFR # NEBC-D12G4-ES-1-S-R3G4-ETSKU # YLSVJ8UMRLLMLG

Approvalc UL us - Listed (Oil)

Certificate issuing authorityUL E520706

Cable designationWith inscription label holder

Frequency of connection100

Product weight93.5

Electrical connection 1, functionField device side

Have questions?Chat on WhatsApp

About This Product

Festo NEBC-D12G4-ES-1-S-R3G4-ET

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Approvalc UL us - Listed (Oil)

Certificate issuing authorityUL E520706

Cable designationWith inscription label holder

Frequency of connection100

Note on contact durability100 (electrical connection 1), 750 (electrical connection 2)

Product weight93.5

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typePlug

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM12x1, D-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores4

Electrical connection 1, used connections/cores4

Electrical connection 1, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00995612

Electrical connection 2, functionControl side

Electrical connection 2, designSquare

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemRJ45 to IEC 60603-7-3

Electrical connection 2, number of connections/cores8

Electrical connection 2, used connections/cores4

electrical connection 2, type of mountingSnap-locking

Electrical connection 2, compatible type of mountingCompatible with latching lock

Electrical connection 2, connection pattern00995653

Operational voltage range DC0, 60

Note on operational voltage range DC0 - 30 V for UL applications

Permissible current load1.5

Immunity to surge0.8

ShieldingYes

Transmission characteristicsIn accordance with category 5, ISO/IEC 11801, class D

Cable length1

Cable characteristicSuitable for energy chains

Test conditions cableBending strength: to Festo standard, Test conditions on request, Energy chain: > 2 million cycles, bending radius 100 mm

Bending radius, fixed cable40

Bending radius, moving cable100

Cable diameter6.7

Cable diameter tolerance± 0.3 mm

Cable structure4 x 0.34 mm²

Nominal cross section conductor0.34

Conductor nominal cross sectionAWG22

Degree of protectionIP20, IP65, IP67

Note on degree of protectionIP20 (electrical connection 2), IP65/67 (electrical connection 1), In mounted state

Special characteristicsOil-resistant

Vibration resistanceTest conditions on request

Shock resistanceTest conditions on request

Ambient temperature-25, 80

Ambient temperature with moving cable-20, 60

Storage temperature-25, 80

Relative air humidity25 - 75%

Overvoltage categoryII

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Note on the contamination levelIn mounted state

Corrosion resistance class CRC1 - Low corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourGreen

Material housingBrass, nickel-plated, PA, TPE-U(PUR)

Housing colourBlack

Material screw-type lockNickel-plated die-cast zinc

Material electrical contactBrass, Gold-plated

Material insulating sheathPackaging unit

Material threaded sleeveDie-cast zinc
