How can I get a price quote for Festo HEPP-28-30-EP-B?

You can request a fast quote for Festo HEPP-28-30-EP-B from Yılsa Engineering. Reference part number YLSOHX0VF3KBFI7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo HEPP-28-30-EP-B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo HEPP-28-30-EP-B genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo HEPP-28-30-EP-B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

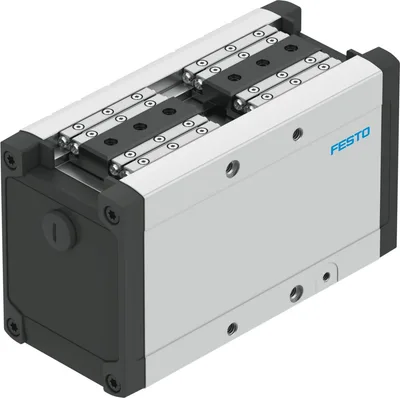

Photo may not represent actual item. Refer to name and product specs for all details.

Festo HEPP-28-30-EP-B

Parallel gripper. Powerful and flexible. Dynamic motor for adjustable motion response. Easy, adjustable parameterisation. Compact thanks to integrated controller. High precision thanks to cross-roller guide. Safe thanks to integrated holding brake. Control via PROFINET®, EtherNet/IP®, EtherCat®. Sustainable in production thanks to reduced use of materials. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # HEPP-28-30-EP-BSKU # YLSOHX0VF3KBFI7

Size28

Total stroke30

Stroke per gripper jaws15

Max. gripper jaw clearance Sy0.35

Repetition accuracy in ± mm0.04

Number of gripper jaws2

Have questions?Chat on WhatsApp

About This Product

Festo HEPP-28-30-EP-B

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size28

Total stroke30

Stroke per gripper jaws15

Max. gripper jaw clearance Sy0.35

Repetition accuracy in ± mm0.04

Number of gripper jaws2

Drive systemElectrical

Mounting positionAny

Controller operating modeInterpolated mode via fieldbus

Gripper functionParallel

DesignToothed belt, Electric gripper, With brake, With ball screw

GuideRoller bearing guide

Position detectionMotor encoder

Configuration supportEDS file

Symbol00992258

VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug

Rotor position sensorAbsolute encoder, single turn

Rotor position sensor, encoder measuring principlemagnetic

Ready status indicationLED

Positioning speed per gripper finger40

Positioning acceleration per gripper finger1

Gripping speed per gripper finger3

Number of MAC addresses4

Max. current consumption3000

Max. current consumption, load2

Max. current consumption, logic1

Nominal operating voltage DC24

Nominal voltage for logic power supply DC24

Nominal voltage load voltage DC24

Nominal motor current0.9

Permissible range for load power supply±10%

Permissible range for logic voltage±10%

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Relative air humidityNon-condensing

Sound pressure level60

Degree of protectionIP40

Ambient temperature0, 50

Total gripping force320

Gripping force per gripper jaw160

Mass moment of inertia30

Max. force on gripper jaw Fz static680

Max. torque at gripper Mx static6.5

Max. torque at gripper My static14.5

Max. torque at gripper Mz static6.5

Rated load1

Nominal torque0.115

Lubrication interval for guide components1

Product weight1400

Communication profileDriveProfile

Field bus, connection typeSocket

Field bus, connection systemM12x1, D-coded to EN 61076-2-101

Field bus, connection pattern4

Field bus, protocolEtherNet/IP

Electrical connection2x M12

Fieldbus linkEtherNet/IP

Type of mountingVia female thread and centring sleeve

Note on materialsRoHS compliant

Material housingAnodised aluminium

Material gripper jawsSteel

Accessories 46

Genuine accessories that can be used with the Festo HEPP-28-30-EP-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBC-D8G4-ES-7.5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-10-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-0.3-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-0.5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-1-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-2-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-0.3-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-0.5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-1-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-2-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-7.5-N-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-R3G4-ES-10-N-S-R3G4-ET	Connecting cable · Connecting cables
DHAS-GF-120-U-BU	Adaptive gripper finger · Mounting accessories
DHAS-GF-80-U-BU	Adaptive gripper finger · Mounting accessories
DHAS-ME-H9-120	Mounting kit · Mounting accessories
DHAS-ME-H9-80	Mounting kit · Mounting accessories
NEBC-D12G4-ES-0.5-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-1-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-3-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-5-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-10-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-1-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-3-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-5-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-10-S-R3G4-ET	Connecting cable · Connecting cables
NEBM-T12G4-R-3-LE4	Connecting cable · Connecting cables
NEBM-T12G4-R-5-LE4	Connecting cable · Connecting cables
NEBM-T12G4-R-10-LE4	Connecting cable · Connecting cables
NEBM-T12W4-R-3-LE4	Connecting cable · Connecting cables
NEBM-T12W4-R-5-LE4	Connecting cable · Connecting cables
NEBM-T12W4-R-10-LE4	Connecting cable · Connecting cables
DHAA-G-E8-35-B24-28	Adapter kit · Mounting accessories
DHAA-G-E8-45-B24-28	Adapter kit · Mounting accessories
DHAA-G-E19-32-B24-28	Adapter kit · Mounting accessories
DHAA-G-E21-70-B24-28	Adapter kit · Mounting accessories
DHAA-G-E21-60-B24-28	Adapter kit · Mounting accessories
DHAS-MA-B24-120	Mounting bracket · Mounting accessories
DHAS-MA-B24-80	Mounting bracket · Mounting accessories
DHAA-G-R1-20-B24-28	Adapter kit · Mounting accessories
DHAA-G-R1-25-B24-28	Adapter kit · Mounting accessories
DHAA-G-E8-55-B24-28	Adapter kit · Mounting accessories
DHAA-G-E8-75-B24-28	Adapter kit · Mounting accessories
DHAA-G-E19-45-B24-28	Adapter kit · Mounting accessories
DHAA-G-E19-60-B24-28	Adapter kit · Mounting accessories
