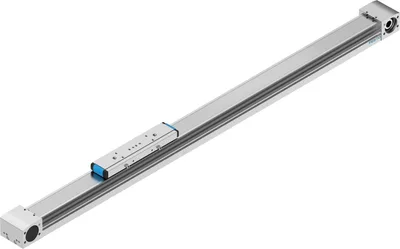

Festo ELGA-TB-KF-70-800-0H

Toothed belt axis. Recirculating ball bearing guide for high loads and torques. High feed forces. Precision guide rail with high load capacity. Speeds up to 5 m/s with high acceleration up to 50 m/s². Optional: Food-safe (for further information, see www.festo.com/certificates/ELGA_KF). The motor can be flexibly mounted on 4 sides. Guide and toothed belt protected by cover band. 22 types in stock with short delivery times and modular products for custom variants. Long strokes of up to 8.5 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # ELGA-TB-KF-70-800-0HSKU # YLSJ4SWD5MCOTJ

Effective diameter of drive pinion28.65

Working stroke800

Size70

Stroke reserve0

Toothed-belt pitch3

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo ELGA-TB-KF-70-800-0H

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Effective diameter of drive pinion28.65

Working stroke800

Size70

Stroke reserve0

Toothed-belt pitch3

Mounting positionAny

GuideRecirculating ball bearing guide

DesignElectromechanical linear axis, With toothed belt

Type of motorStepper motor, Servo motor

Functional principle of measuring systemIncremental

Max. acceleration50

Max. speed5

Repetition accuracy±0.08 mm

Duty cycle100%

LABS (PWIS) conformityVDMA24364 zone III

Degree of protectionIP40

Ambient temperature-10, 60

2nd moment of area Iy146050

2nd moment of area Iz459290

Max. drive torque5.02

Max. force Fy1500

Max. force Fz1850

Max. force Fy total axis1500

Max. force Fz total axis1850

Fy at theoretical life value of 100 km (only guide consideration)5520

Fz at theoretical life value of 100 km (only guide consideration)6808

Max. idle running transfer resistance41.9

Max. moment Mx16

Max. moment My132

Max. moment Mz132

Max. moment Mx total axis16

Max. moment My total axis132

Max. moment Mz total axis132

Mx at theoretical life value of 100 km (only guide consideration)59

My at theoretical life value of 100 km (only guide consideration)486

Mz at theoretical life value of 100 km (only guide consideration)486

Distance between slide surface and guide centre37

Max. feed force Fx350

Frictional torque independent of load0.6

Torsional mass moment of inertia It103880

Mass moment of inertia JH per metre of stroke0.19

Mass moment of inertia JL per kg of working load2.05

Mass moment of inertia JO2.43

Mass moment of inertia JW for additional slide1.86

Feed constant90

Reference service life5000

Weight of slide900

Weight of additional slide740

Basic weight for 0 mm stroke2970

Additional weight per 10 mm stroke39

Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm

Static deflection (load in standstill)0.1% of the axis length

Material profileWrought aluminium alloy, anodised

Note on materialsRoHS compliant

Material cover tapeStainless steel strip

Material drive coverWrought aluminium alloy, anodised

Material guide slideStainless steel

Material guide railStainless steel

Material pulleysHigh-alloy stainless steel

Material slideWrought aluminium alloy, anodised

Material toothed belt clamping pieceCast stainless steel

Material toothed beltPolychloroprene or nitrile rubber (NBR) with glass cord and nylon coating
