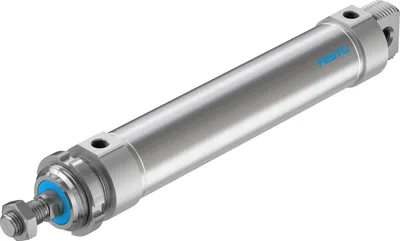

FESTO DSNU-50-200-PPS-A
Round cylinder. Wide range of variants for customised applications. Good running performance and long service life. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Piston rod with female or male thread. For position sensing
Stroke200
Piston diameter50 mm
Piston rod threadM16x1.5
Mounting positionAny
DesignPiston, Piston rod, Cylinder barrel
Position detectionVia proximity switch
About This Product
Round cylinder. Wide range of variants for customised applications. Good running performance and long service life. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Piston rod with female or male thread. For position sensing
FESTO DSNU-50-200-PPS-A
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke200
Piston diameter50 mm
Piston rod threadM16x1.5
CushioningSelf-adjusting pneumatic end-position cushioning
Mounting positionAny
DesignPiston, Piston rod, Cylinder barrel
Position detectionVia proximity switch
Symbol00992970
Operating pressure0.1, 1
Operating pressure1, 10
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20, 80
Impact energy in end positions1
Cushioning length20
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke989.6
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178.1
Moving mass913
Product weight1887
Type of mountingWith accessories
Pneumatic connectionG1/4
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsNBR, TPE-U(PU)
Material piston rodHigh-alloy steel
Material cylinder barrelHigh-alloy stainless steel
Accessories 300
Genuine accessories that can be used with the FESTO DSNU-50-200-PPS-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SG-M16X1,5 | Rod clevis · Piston-rod attachments | |
| SMBR-8-50 | Mounting kit · Retainer for proximity sensor | |
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| HBN-50X2 | Foot mounting · Cylinder mountings | |
| LBN-50/63 | Clevis foot · Cylinder mountings | |
| SGS-M16X1,5 | Rod eye · Piston-rod attachments | |
| QS-G1/4-8 | Push-in fitting · Fittings | |
| QS-G1/4-8-I | Push-in fitting · Fittings | |
| QSL-G1/4-8 | Push-in L-fitting · Fittings | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| FK-M16X1,5 | Self-aligning rod coupler · Piston-rod attachments | |
| GRLA-1/4-QS-8-D | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q8 | One-way flow control valve · Function fittings | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubes | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubes | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubes | |
| GASA-MIP-CTR-12M-10 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-1000 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-100 | AX Industrial App · Digital services | |
| VFOE-LE-T-G14-Q6 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q10 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q8-P50 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q6-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q8-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q10-F1A | One-way flow control valve · Function fittings | |
| CK-1/4-PK-4 | Quick connector · Quick connectors | |
| CK-1/4-PK-6 | Quick connector · Quick connectors | |
| CK-1/4-PK-9 | Quick connector · Quick connectors | |
| LCK-1/4-PK-4 | Elbow quick connector · Quick connectors | |
| LCK-1/4-PK-6 | Elbow quick connector · Quick connectors | |
| TCK-1/4-PK-4 | T quick connector · Quick connectors | |
| TCK-1/4-PK-6 | T quick connector · Quick connectors | |
| CK-1/4-PK-4-KU | Quick connector · Quick connectors | |
| CK-1/4-PK-6-KU | Quick connector · Quick connectors | |
| CK-1/4-PK-9-KU | Quick connector · Quick connectors | |
| LCK-1/4-PK-4-KU | Elbow quick connector · Quick connectors | |
| LCK-1/4-PK-6-KU | Elbow quick connector · Quick connectors | |
| TCK-1/4-PK-4-KU | T quick connector · Quick connectors | |
| TCK-1/4-PK-6-KU | T quick connector · Quick connectors | |
| SEU-1/4 | Quick exhaust valve · Function fittings | |
| GRU-1/4-B | Flow control/silencer · Function fittings | |
| SE-1/4-B | Quick exhaust valve · Function fittings | |
| LCK-1/4-PK-9 | Elbow quick connector · Quick connectors | |
| CN-1/4-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/4-PK-6 | Barbed fitting · Barbed fittings | |
| TCN-1/4-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/4-PK-6 | Barbed T-fitting · Barbed fittings | |
| LCN-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| KSG-M16X1,5 | Coupling piece · Piston rod attachments | |
| LCNH-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| KSZ-M16X1,5 | Coupling piece · Piston rod attachments | |
| QSW-1/4-6 | Push-in fitting · Push-in fittings | |
| QSW-1/4-8 | Push-in fitting · Push-in fittings | |
| QSW-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSLL-G1/4-12 | Push-in L-fitting, long · Push-in fittings | |
| QST-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-10-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I-100 | Push-in fitting · Push-in fittings | |
| SMBS-2 | Mounting kit · Mounting kits for proximity sensors, other sensors | |
| QS-1/4-6 | Push-in fitting · Push-in fittings | |
| QS-1/4-8 | Push-in fitting · Push-in fittings | |
| QS-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/4-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-10-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/4-8-B | Multiple distributor · Push-in fittings | |
| QST3-1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/4-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/4-8 | Multiple distributor · Push-in fittings | |
| QST3-G1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-G1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-4 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-4 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-4 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/4-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-4 | Push-in Y-fitting · Push-in fittings | |
| QS-1/4-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| GRLA-1/4-QS-6-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-10-D | One-way flow control valve · Function fittings | |
| FBN-50 | Flange mounting · Cylinder mountings | |
| WBN-50/63 | Swivel mounting · Cylinder mountings | |
| HGL-1/4-B | Piloted check valve · Function fittings | |
| HGL-1/4-QS-8 | Piloted check valve · Function fittings | |
| HGL-1/4-QS-10 | Piloted check valve · Function fittings | |
| GRLA-1/4-QS-6-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-8-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-10-RS-D | One-way flow control valve · Function fittings | |
| SBN-50/63 | Swivel mounting · Cylinder mountings | |
| GRLSA-1/4-QS-8 | One-way flow control valve · Function fittings | |
| VBQF-U-G14-E | Quick exhaust valve · Function fittings | |
| VBQF-U-G14-Q8 | Quick exhaust valve · Function fittings | |
| VBQF-D-G14-E | Quick exhaust valve · Function fittings | |
| SE-1/4 | Quick exhaust valve · Function fittings | |
| VFOH-LE-A-G14-Q8 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G14-Q10 | One-way flow control valve · Function fittings | |
| NPFC-L-2G14-F | Elbow fitting · Other connectors | |
| NPFC-L-R14-G14-MF | Elbow fitting · Other connectors | |
| NPFC-L-2R14-M | Elbow fitting · Other connectors | |
| NPFC-Y-3G14-F | Y-fitting · Other connectors | |
| NPFC-Y-R14-2G14-MFF | Y-fitting · Other connectors | |
| NPFC-T-3G14-F | T-fitting · Other connectors | |
| NPFC-T-R14-2G14-MFF | T-fitting · Other connectors | |
| NPFC-T-2G14-R14-FMF | T-fitting · Other connectors | |
| NPFC-T-3R14-M | T-fitting · Other connectors | |
| NPFC-T-G14-2R14-FMM | T-fitting · Other connectors | |
| NPFC-T-2R14-G14-MMF | T-fitting · Other connectors | |
| NPFC-X-4G14-F | X-fitting · Other connectors | |
| NPFC-X-R14-3G14-MFFF | X-fitting · Other connectors | |
| NPFC-D-G18-G14-M | Double nipple · Other connectors | |
| NPFC-D-2G14-M | Double nipple · Other connectors | |
| NPFC-D-R18-R14-M | Double nipple · Other connectors | |
| NPFC-D-2R14-M | Double nipple · Other connectors | |
| NPFC-S-2G14-F | Sleeve · Other connectors | |
| NPFC-E1-2G14-FM | Extension · Other connectors | |
| NPFC-E2-2G14-FM | Extension · Other connectors | |
| NPFC-E3-2G14-FM | Extension · Other connectors | |
| NPFC-R-G38-G14-MF | Reducing nipple · Other connectors | |
| NPFC-R-G38-G14-FM | Reducing nipple · Other connectors | |
| NPFC-D-2G14-M-P100 | Double nipple · Other connectors | |
| NPFC-R-G38-G14-F | Reducing sleeve · Other connectors | |
| NPFC-R-G38-G14-MF-P50 | Reducing nipple · Other connectors | |
| NPFC-R-G34-G14-MF | Reducing nipple · Other connectors | |
| NPFC-H-G14-F | Bulkhead fitting · Other connectors | |
| NPFC-DS-G14-G14-M | Double nipple · Other connectors | |
| NPFC-DS-G14-G38-M | Double nipple · Other connectors | |
| NPFC-RS-G38-G14-MF | Reducing nipple · Other connectors | |
| DARP-M16P-F | Self-aligning rod coupler · Stainless-steel piston-rod attachments |
Related Products
View Details
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
View Details
Festo
DDPC-...-80- -
MFR #DDPC-...-80- -
SKU #YLS4SHYOTSRTIP
View Details
Festo
AEVUZ-12- -P-A
MFR #AEVUZ-12- -P-A
SKU #YLSCKLUCYWUPXLU
View Details
Festo
AEVUZ-12- -A-P-A
MFR #AEVUZ-12- -A-P-A
SKU #YLSTV5C7OJHR5U
View Details
Festo
AEVU-12- -P-A
MFR #AEVU-12- -P-A
SKU #YLS3TZ4SLKMP3F9
View Details
Festo
AEVU-12- -A-P-A
MFR #AEVU-12- -A-P-A
SKU #YLS3HRQPDAIT8C
View Details
Festo
SLG-8- -
MFR #SLG-8- -
SKU #YLS9SOTFXFPKQRQ
View Details
Festo
SLG-12- -
MFR #SLG-12- -
SKU #YLS9BK0KMC5LER
View Details
Festo
ADVU-12- -P-A
MFR #ADVU-12- -P-A
SKU #YLS0CS8PIQ6XHGN
Featured Products
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
View Details
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
View Details
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
View Details
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Related Searches
FESTO DSNU-50-200-PPS-A priceFESTO DSNU-50-200-PPS-A quotebuy FESTO DSNU-50-200-PPS-ADSNU-50-200-PPS-A priceDSNU-50-200-PPS-A stock availabilityFESTO spare partsFESTO DSNU-50-200-PPS-A equivalentFESTO DSNU-50-200-PPS-A specifications
