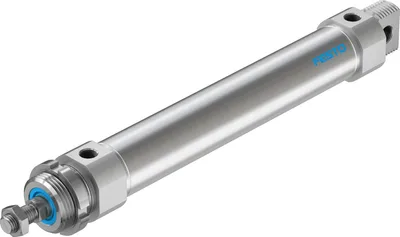

FESTO DSNU-40-200-PPS-A
Round cylinder. Wide range of variants for customised applications. Good running performance and long service life. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Piston rod with female or male thread. For position sensing
Stroke200
Piston diameter40 mm
Piston rod threadM12x1.25
Mounting positionAny
DesignPiston, Piston rod, Cylinder barrel
Position detectionVia proximity switch
About This Product
Round cylinder. Wide range of variants for customised applications. Good running performance and long service life. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Piston rod with female or male thread. For position sensing
FESTO DSNU-40-200-PPS-A
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke200
Piston diameter40 mm
Piston rod threadM12x1.25
CushioningSelf-adjusting pneumatic end-position cushioning
Mounting positionAny
DesignPiston, Piston rod, Cylinder barrel
Position detectionVia proximity switch
Symbol00992970
Operating pressure0.1, 1
Operating pressure1, 10
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20, 80
Impact energy in end positions0.7
Cushioning length18
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke633.3
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke752.9
Moving mass550
Product weight1141
Type of mountingWith accessories
Pneumatic connectionG1/4
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsNBR, TPE-U(PU)
Material piston rodHigh-alloy steel
Material cylinder barrelHigh-alloy stainless steel
Accessories 307
Genuine accessories that can be used with the FESTO DSNU-40-200-PPS-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SG-M12X1,25 | Rod clevis · Piston-rod attachments | |
| SMBR-8-40 | Mounting kit · Retainer for proximity sensor | |
| QS-G1/4-8 | Push-in fitting · Fittings | |
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| QSL-G1/4-8 | Push-in L-fitting · Fittings | |
| GRLA-1/4-QS-8-D | One-way flow control valve · Function fittings | |
| HBN-40X2 | Foot mounting · Cylinder mountings | |
| LBN-40 | Clevis foot · Cylinder mountings | |
| SGS-M12X1,25 | Rod eye · Piston-rod attachments | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubes | |
| QS-G1/4-8-I | Push-in fitting · Fittings | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| VFOE-LE-T-G14-Q8 | One-way flow control valve · Function fittings | |
| FK-M12X1,25 | Self-aligning rod coupler · Piston-rod attachments | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubes | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubes | |
| GASA-MIP-CTR-12M-10 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-1000 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-100 | AX Industrial App · Digital services | |
| VFOE-LE-T-G14-Q6 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q10 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q8-P50 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q6-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q8-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q10-F1A | One-way flow control valve · Function fittings | |
| CRFK-M12X1,25 | Self-aligning rod coupler · Piston rod attachments | |
| SGA-M12X1,25 | Rod clevis · Piston rod attachments | |
| MSK-M12X1,25 | Hex nut · Piston rod attachments | |
| CRSGS-M12X1,25 | Rod eye · Piston rod attachments | |
| CRSG-M12X1,25 | Rod clevis · Piston rod attachments | |
| CK-1/4-PK-4 | Quick connector · Quick connectors | |
| CK-1/4-PK-6 | Quick connector · Quick connectors | |
| CK-1/4-PK-9 | Quick connector · Quick connectors | |
| LCK-1/4-PK-4 | Elbow quick connector · Quick connectors | |
| LCK-1/4-PK-6 | Elbow quick connector · Quick connectors | |
| TCK-1/4-PK-4 | T quick connector · Quick connectors | |
| TCK-1/4-PK-6 | T quick connector · Quick connectors | |
| CK-1/4-PK-4-KU | Quick connector · Quick connectors | |
| CK-1/4-PK-6-KU | Quick connector · Quick connectors | |
| CK-1/4-PK-9-KU | Quick connector · Quick connectors | |
| LCK-1/4-PK-4-KU | Elbow quick connector · Quick connectors | |
| LCK-1/4-PK-6-KU | Elbow quick connector · Quick connectors | |
| TCK-1/4-PK-4-KU | T quick connector · Quick connectors | |
| TCK-1/4-PK-6-KU | T quick connector · Quick connectors | |
| SEU-1/4 | Quick exhaust valve · Function fittings | |
| GRU-1/4-B | Flow control/silencer · Function fittings | |
| SE-1/4-B | Quick exhaust valve · Function fittings | |
| LCK-1/4-PK-9 | Elbow quick connector · Quick connectors | |
| CN-1/4-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/4-PK-6 | Barbed fitting · Barbed fittings | |
| TCN-1/4-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/4-PK-6 | Barbed T-fitting · Barbed fittings | |
| LCN-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| KSG-M12X1,25 | Coupling piece · Piston rod attachments | |
| LCNH-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| KSZ-M12X1,25 | Coupling piece · Piston rod attachments | |
| QSW-1/4-6 | Push-in fitting · Push-in fittings | |
| QSW-1/4-8 | Push-in fitting · Push-in fittings | |
| QSW-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSLL-G1/4-12 | Push-in L-fitting, long · Push-in fittings | |
| QST-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-10-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I-100 | Push-in fitting · Push-in fittings | |
| SMBS-2 | Mounting kit · Mounting kits for proximity sensors, other sensors | |
| QS-1/4-6 | Push-in fitting · Push-in fittings | |
| QS-1/4-8 | Push-in fitting · Push-in fittings | |
| QS-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/4-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-10-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/4-8-B | Multiple distributor · Push-in fittings | |
| QST3-1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| AD-M12X1,25-1/4 | Adapter · Piston rod attachments | |
| AD-M12X1,25-3/8 | Adapter · Piston rod attachments | |
| QSL-V0-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/4-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/4-8 | Multiple distributor · Push-in fittings | |
| QST3-G1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-G1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-4 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-4 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-4 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/4-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-4 | Push-in Y-fitting · Push-in fittings | |
| QS-1/4-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| GRLA-1/4-QS-6-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-10-D | One-way flow control valve · Function fittings | |
| FBN-40 | Flange mounting · Cylinder mountings | |
| WBN-40 | Swivel mounting · Cylinder mountings | |
| HGL-1/4-B | Piloted check valve · Function fittings | |
| HGL-1/4-QS-8 | Piloted check valve · Function fittings | |
| HGL-1/4-QS-10 | Piloted check valve · Function fittings | |
| GRLA-1/4-QS-6-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-8-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-10-RS-D | One-way flow control valve · Function fittings | |
| SBN-40 | Swivel mounting · Cylinder mountings | |
| GRLSA-1/4-QS-8 | One-way flow control valve · Function fittings | |
| VBQF-U-G14-E | Quick exhaust valve · Function fittings | |
| VBQF-U-G14-Q8 | Quick exhaust valve · Function fittings | |
| VBQF-D-G14-E | Quick exhaust valve · Function fittings | |
| SE-1/4 | Quick exhaust valve · Function fittings | |
| VFOH-LE-A-G14-Q8 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G14-Q10 | One-way flow control valve · Function fittings | |
| NPFC-L-2G14-F | Elbow fitting · Other connectors | |
| NPFC-L-R14-G14-MF | Elbow fitting · Other connectors | |
| NPFC-L-2R14-M | Elbow fitting · Other connectors | |
| NPFC-Y-3G14-F | Y-fitting · Other connectors | |
| NPFC-Y-R14-2G14-MFF | Y-fitting · Other connectors | |
| NPFC-T-3G14-F | T-fitting · Other connectors | |
| NPFC-T-R14-2G14-MFF | T-fitting · Other connectors | |
| NPFC-T-2G14-R14-FMF | T-fitting · Other connectors | |
| NPFC-T-3R14-M | T-fitting · Other connectors | |
| NPFC-T-G14-2R14-FMM | T-fitting · Other connectors | |
| NPFC-T-2R14-G14-MMF | T-fitting · Other connectors | |
| NPFC-X-4G14-F | X-fitting · Other connectors | |
| NPFC-X-R14-3G14-MFFF | X-fitting · Other connectors | |
| NPFC-D-G18-G14-M | Double nipple · Other connectors | |
| NPFC-D-2G14-M | Double nipple · Other connectors | |
| NPFC-D-R18-R14-M | Double nipple · Other connectors | |
| NPFC-D-2R14-M | Double nipple · Other connectors | |
| NPFC-S-2G14-F | Sleeve · Other connectors | |
| NPFC-E1-2G14-FM | Extension · Other connectors | |
| NPFC-E2-2G14-FM | Extension · Other connectors | |
| NPFC-E3-2G14-FM | Extension · Other connectors | |
| NPFC-R-G38-G14-MF | Reducing nipple · Other connectors | |
| NPFC-R-G38-G14-FM | Reducing nipple · Other connectors | |
| NPFC-D-2G14-M-P100 | Double nipple · Other connectors | |
| NPFC-R-G38-G14-F | Reducing sleeve · Other connectors | |
| NPFC-R-G38-G14-MF-P50 | Reducing nipple · Other connectors | |
| NPFC-R-G34-G14-MF | Reducing nipple · Other connectors | |
| NPFC-H-G14-F | Bulkhead fitting · Other connectors | |
| NPFC-DS-G14-G14-M | Double nipple · Other connectors | |
| NPFC-DS-G14-G38-M | Double nipple · Other connectors | |
| NPFC-RS-G38-G14-MF | Reducing nipple · Other connectors | |
| DARP-M12P-F | Self-aligning rod coupler · Stainless-steel piston-rod attachments |
Related Products
View Details
Festo
SLM-16- -KF-A 32782
MFR #SLM-16- -KF-A
SKU #YLS7MOHSD6T62FF
View Details
Festo
SLM-20- -KF-A 32783
MFR #SLM-20- -KF-A
SKU #YLS251YV9PRQXII
View Details
Festo
SLM-25- -KF-A 32784
MFR #SLM-25- -KF-A
SKU #YLSQPCXDEZVK5XF
View Details
Festo
SLM-32- -KF-A 32785
MFR #SLM-32- -KF-A
SKU #YLSBSFT5LBD4HEK
View Details
Festo
SLM-40- -KF-A 32786
MFR #SLM-40- -KF-A
SKU #YLSILI4KCHUWY1M
View Details
Festo
ADVU-125- -P-A 175759
MFR #ADVU-125- -P-A
SKU #YLSA9PBAQRLCV6X
View Details
Festo
ADVU-125- -A-P-A 175771
MFR #ADVU-125- -A-P-A
SKU #YLSR8LHHCJT3NU9
View Details
Festo
AEN-12- -
MFR #AEN-12- -
SKU #YLSVEWSV7OYHYR1
View Details
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
Featured Products
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
View Details
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
View Details
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Related Searches
FESTO DSNU-40-200-PPS-A priceFESTO DSNU-40-200-PPS-A quotebuy FESTO DSNU-40-200-PPS-ADSNU-40-200-PPS-A priceDSNU-40-200-PPS-A stock availabilityFESTO spare partsFESTO DSNU-40-200-PPS-A equivalentFESTO DSNU-40-200-PPS-A specifications
