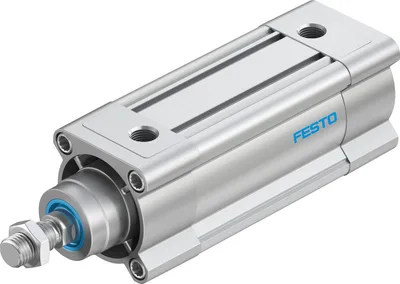

FESTO DSBC-63-80-PPSA-N3

ISO cylinder. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. ISO 15552 (ISO 6431, VDMA 24562). Sustainable thanks to extended life cycle and easier repairs. Standard profile with two sensor slots. Wide range of variants for customised applications. Comprehensive range of mounting accessories for just about every type of installation. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries

FESTOMFR # DSBC-63-80-PPSA-N3SKU # CEY-937FC781B4F9

Stroke80

Piston diameter63 mm

Piston rod threadM16x1.5

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

FESTO DSBC-63-80-PPSA-N3

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke80

Piston diameter63 mm

Piston rod threadM16x1.5

CushioningSelf-adjusting pneumatic end-position cushioning

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

DesignPiston, Piston rod, Profile barrel

Position detectionVia proximity switch

Symbol00992970

VariantsPiston rod at one end

Operating pressure0.04, 1.2

Operating pressure0.4, 12

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 80

Impact energy in end positions1.3

Cushioning length22

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1682

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870

Moving mass630

Moving mass for 0 mm stroke430

Additional moving mass per 10 mm stroke25

Product weight2236

Basic weight for 0 mm stroke1740

Additional weight per 10 mm stroke62

Type of mountingWith female thread, With accessories

Pneumatic connectionG3/8

Note on materialsRoHS compliant

Material coverCoated die-cast aluminium

Material piston sealTPE-U(PU)

Material pistonWrought aluminium alloy

Material piston rodHigh-alloy steel

Material piston rod wiperTPE-U(PU)

Buffer seal materialTPE-U(PU)

Material of cushioning bossPOM

Material cylinder barrelSmooth-anodised wrought aluminium alloy

Material nutGalvanised steel

Material bearingPOM

Material collar screwsGalvanised steel

Accessories 281

Genuine accessories that can be used with the FESTO DSBC-63-80-PPSA-N3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SNCB-63	Swivel flange · Cylinder mountings
SGS-M16X1,5	Rod eye · Piston-rod attachments
SG-M16X1,5	Rod clevis · Piston-rod attachments
QS-G3/8-10	Push-in fitting · Fittings
QS-G3/8-10-I	Push-in fitting · Fittings
QSL-G3/8-10	Push-in L-fitting · Fittings
GRLA-3/8-QS-10-D	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10	One-way flow control valve · Function fittings
FK-M16X1,5	Self-aligning rod coupler · Piston-rod attachments
PUN-H-10X1,5-NT	Plastic tubing · Tubes
PUN-H-10X1,5-SW	Plastic tubing · Tubes
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
HNC-63	Foot mounting · Cylinder mountings
SNC-63	Swivel flange · Cylinder mountings
SNCS-63	Swivel flange · Cylinder mountings
SNCL-63	Swivel flange · Cylinder mountings
ZNCF-63	Trunnion flange · Cylinder mountings
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
PUN-H-10X1,5-BL	Plastic tubing · Tubes
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
VFOE-LE-T-G38-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-P20	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-F1A	One-way flow control valve · Function fittings
CK-3/8-PK-6	Quick connector · Quick connectors
CK-3/8-PK-9	Quick connector · Quick connectors
CK-3/8-PK-13	Quick connector · Quick connectors
LCK-3/8-PK-6	Elbow quick connector · Quick connectors
LCK-3/8-PK-9	Elbow quick connector · Quick connectors
TCK-3/8-PK-6	T quick connector · Quick connectors
TCK-3/8-PK-9	T quick connector · Quick connectors
CK-3/8-PK-6-KU	Quick connector · Quick connectors
CK-3/8-PK-9-KU	Quick connector · Quick connectors
SEU-3/8	Quick exhaust valve · Function fittings
GRU-3/8-B	Flow control/silencer · Function fittings
SE-3/8-B	Quick exhaust valve · Function fittings
CN-3/8-PK-6	Barbed fitting · Barbed fittings
TCN-3/8-PK-6	Barbed T-fitting · Barbed fittings
LCN-3/8-PK-6	Barbed elbow fitting · Barbed fittings
KSG-M16X1,5	Coupling piece · Piston rod attachments
FENG-63-100-KF	Guide unit · Mounting accessories
LCNH-3/8-PK-6	Barbed elbow fitting · Barbed fittings
KSZ-M16X1,5	Coupling piece · Piston rod attachments
QSW-3/8-10	Push-in fitting · Push-in fittings
QSW-3/8-12	Push-in fitting · Push-in fittings
QS-3/8-8-50	Push-in fitting · Push-in fittings
QS-3/8-10-50	Push-in fitting · Push-in fittings
QS-3/8-12-20	Push-in fitting · Push-in fittings
QSL-3/8-8-50	Push-in L-fitting · Push-in fittings
QSL-3/8-10-20	Push-in L-fitting · Push-in fittings
QSL-3/8-12-20	Push-in L-fitting · Push-in fittings
QST-3/8-8-50	Push-in T-fitting · Push-in fittings
QST-3/8-10-20	Push-in T-fitting · Push-in fittings
QST-3/8-12-20	Push-in T-fitting · Push-in fittings
QS-G3/8-8-50	Push-in fitting · Push-in fittings
QS-G3/8-10-50	Push-in fitting · Push-in fittings
QS-G3/8-12-20	Push-in fitting · Push-in fittings
QSL-G3/8-8-50	Push-in L-fitting · Push-in fittings
QSL-G3/8-10-20	Push-in L-fitting · Push-in fittings
QSL-G3/8-12-20	Push-in L-fitting · Push-in fittings
QST-G3/8-8-50	Push-in T-fitting · Push-in fittings
QST-G3/8-10-20	Push-in T-fitting · Push-in fittings
QST-G3/8-12-20	Push-in T-fitting · Push-in fittings
GRLA-3/8-B	One-way flow control valve · Function fittings
ABP-5-S	Slot cover · Mounting accessories
QS-3/8-8	Push-in fitting · Push-in fittings
QS-3/8-10	Push-in fitting · Push-in fittings
QS-3/8-12	Push-in fitting · Push-in fittings
QS-3/8-8-I	Push-in fitting · Push-in fittings
QS-3/8-10-I	Push-in fitting · Push-in fittings
QS-3/8-12-I	Push-in fitting · Push-in fittings
QSL-3/8-8	Push-in L-fitting · Push-in fittings
QSL-3/8-10	Push-in L-fitting · Push-in fittings
QSL-3/8-12	Push-in L-fitting · Push-in fittings
QSLL-3/8-8	Push-in L-fitting, long · Push-in fittings
QSLL-3/8-10	Push-in L-fitting, long · Push-in fittings
QSLL-3/8-12	Push-in L-fitting, long · Push-in fittings
QSLV-3/8-8	Push-in L-fitting · Push-in fittings
QSLV-3/8-10	Push-in L-fitting · Push-in fittings
QSLV-3/8-12	Push-in L-fitting · Push-in fittings
QSLV-3/8-8-I	Push-in L-fitting · Push-in fittings
QSLV-3/8-10-I	Push-in L-fitting · Push-in fittings
QSLV-3/8-12-I	Push-in L-fitting · Push-in fittings
QST-3/8-8	Push-in T-fitting · Push-in fittings
QST-3/8-10	Push-in T-fitting · Push-in fittings
QST-3/8-12	Push-in T-fitting · Push-in fittings
QSTL-3/8-8	Push-in T-fitting · Push-in fittings
QSTL-3/8-10	Push-in T-fitting · Push-in fittings
QSTL-3/8-12	Push-in T-fitting · Push-in fittings
QSY-3/8-8	Push-in Y-fitting · Push-in fittings
QSY-3/8-10	Push-in Y-fitting · Push-in fittings
QSY-3/8-12	Push-in Y-fitting · Push-in fittings
QSYL-3/8-8	Push-in Y-fitting · Push-in fittings
QSYL-3/8-10	Push-in Y-fitting · Push-in fittings
QSYL-3/8-12	Push-in Y-fitting · Push-in fittings
QSTF-3/8-8-B	Push-in T-fitting · Push-in fittings
QSTF-3/8-10-B	Push-in T-fitting · Push-in fittings
QSTF-3/8-12-B	Push-in T-fitting · Push-in fittings
QSYLV-3/8-10	Push-in Y-fitting · Push-in fittings
QSYTF-3/8-10-B	Multiple distributor · Push-in fittings
QST3-3/8-10-8	Multiple distributor · Push-in fittings
QSLV2-3/8-8	Multiple distributor · Push-in fittings
QSLV2-3/8-10	Multiple distributor · Push-in fittings
QSLV2-3/8-12	Multiple distributor · Push-in fittings
QSLV3-3/8-8	Multiple distributor · Push-in fittings
QSLV3-3/8-10	Multiple distributor · Push-in fittings
QSLV3-3/8-12	Multiple distributor · Push-in fittings
QSLV4-3/8-8	Multiple distributor · Push-in fittings
QSLV4-3/8-10	Multiple distributor · Push-in fittings
QSLV4-3/8-12	Multiple distributor · Push-in fittings
QSLV6-3/8-8	Multiple distributor · Push-in fittings
QSLV6-3/8-10	Multiple distributor · Push-in fittings
QSLV6-3/8-12	Multiple distributor · Push-in fittings
QSR-3/8-8	Push-in fitting, rotatable · Push-in fittings
QSR-3/8-10	Push-in fitting, rotatable · Push-in fittings
QSR-3/8-12	Push-in fitting, rotatable · Push-in fittings
QSRL-3/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSRL-3/8-10	Push-in L-fitting, rotatable · Push-in fittings
QSRL-3/8-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-3/8-8	Push-in fitting, self-sealing · Push-in fittings
QSK-3/8-10	Push-in fitting, self-sealing · Push-in fittings
QSK-3/8-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-3/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-3/8-10	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-3/8-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-3/8-8	Push-in fitting · Push-in fittings
QS-V0-3/8-10	Push-in fitting · Push-in fittings
QS-V0-3/8-12	Push-in fitting · Push-in fittings
QSL-V0-3/8-8	Push-in L-fitting · Push-in fittings
QSL-V0-3/8-10	Push-in L-fitting · Push-in fittings
QSL-V0-3/8-12	Push-in L-fitting · Push-in fittings
QST-V0-3/8-8	Push-in T-fitting · Push-in fittings
QST-V0-3/8-10	Push-in T-fitting · Push-in fittings
QST-V0-3/8-12	Push-in T-fitting · Push-in fittings
CRFNG-63	Flange mounting · Cylinder mountings
CRZNG-63	Trunnion flange · Cylinder mountings
QS-3/8-16	Push-in fitting · Push-in fittings
QSL-3/8-16	Push-in L-fitting · Push-in fittings
QST-3/8-16	Push-in T-fitting · Push-in fittings
FNC-63	Flange mounting · Cylinder mountings
DPNC-63	Multi-position kit · Mounting accessories
CRHNC-63	Foot mounting · Cylinder mountings
SNCB-63-R3	Swivel flange · Cylinder mountings
QS-3/8-5/16-I-U-M	Push-in fitting · Push-in fittings
QS-3/8-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-G3/8-8	Push-in fitting · Push-in fittings
QS-G3/8-12	Push-in fitting · Push-in fittings
QS-G3/8-8-I	Push-in fitting · Push-in fittings
QS-G3/8-12-I	Push-in fitting · Push-in fittings
QSL-G3/8-8	Push-in L-fitting · Push-in fittings
QSL-G3/8-12	Push-in L-fitting · Push-in fittings
QSLL-G3/8-8	Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-10	Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-12	Push-in L-fitting, long · Push-in fittings
QSLV-G3/8-8	Push-in L-fitting · Push-in fittings
QSLV-G3/8-10	Push-in L-fitting · Push-in fittings
QSLV-G3/8-12	Push-in L-fitting · Push-in fittings
QSLV-G3/8-8-I	Push-in L-fitting · Push-in fittings
QSLV-G3/8-10-I	Push-in L-fitting · Push-in fittings
QSLV-G3/8-12-I	Push-in L-fitting · Push-in fittings
QST-G3/8-8	Push-in T-fitting · Push-in fittings
QST-G3/8-10	Push-in T-fitting · Push-in fittings
QST-G3/8-12	Push-in T-fitting · Push-in fittings
QSTL-G3/8-8	Push-in T-fitting · Push-in fittings
QSTL-G3/8-10	Push-in T-fitting · Push-in fittings
QSTL-G3/8-12	Push-in T-fitting · Push-in fittings
QSY-G3/8-8	Push-in Y-fitting · Push-in fittings
QSY-G3/8-10	Push-in Y-fitting · Push-in fittings
QSY-G3/8-12	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-8	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-10	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-12	Push-in Y-fitting · Push-in fittings
QSTF-G3/8-8	Push-in T-fitting · Push-in fittings
QSTF-G3/8-10	Push-in T-fitting · Push-in fittings
QSTF-G3/8-12	Push-in T-fitting · Push-in fittings
QSYLV-G3/8-10	Push-in Y-fitting · Push-in fittings
QSYTF-G3/8-10	Multiple distributor · Push-in fittings
QST3-G3/8-10-8	Multiple distributor · Push-in fittings
QSLV2-G3/8-8	Multiple distributor · Push-in fittings
QSLV2-G3/8-10	Multiple distributor · Push-in fittings
QSLV2-G3/8-12	Multiple distributor · Push-in fittings
QSLV3-G3/8-8	Multiple distributor · Push-in fittings
QSLV3-G3/8-10	Multiple distributor · Push-in fittings
QSLV3-G3/8-12	Multiple distributor · Push-in fittings
QSLV4-G3/8-8	Multiple distributor · Push-in fittings
QSLV4-G3/8-10	Multiple distributor · Push-in fittings
QSLV4-G3/8-12	Multiple distributor · Push-in fittings
QSLV6-G3/8-8	Multiple distributor · Push-in fittings
QSLV6-G3/8-10	Multiple distributor · Push-in fittings
QSLV6-G3/8-12	Multiple distributor · Push-in fittings
QSR-G3/8-8	Push-in fitting, rotatable · Push-in fittings
QSR-G3/8-10	Push-in fitting, rotatable · Push-in fittings
QSR-G3/8-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G3/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G3/8-10	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G3/8-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G3/8-8	Push-in fitting, self-sealing · Push-in fittings
QSK-G3/8-10	Push-in fitting, self-sealing · Push-in fittings
QSK-G3/8-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G3/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G3/8-10	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G3/8-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G3/8-8	Push-in fitting · Push-in fittings
QS-V0-G3/8-10	Push-in fitting · Push-in fittings
QS-V0-G3/8-12	Push-in fitting · Push-in fittings
QSL-V0-G3/8-8	Push-in L-fitting · Push-in fittings
QSL-V0-G3/8-10	Push-in L-fitting · Push-in fittings
QSL-V0-G3/8-12	Push-in L-fitting · Push-in fittings
QST-V0-G3/8-8	Push-in T-fitting · Push-in fittings
QST-V0-G3/8-10	Push-in T-fitting · Push-in fittings
QST-V0-G3/8-12	Push-in T-fitting · Push-in fittings
QS-G3/8-16	Push-in fitting · Push-in fittings
QSL-G3/8-16	Push-in L-fitting · Push-in fittings
QST-G3/8-16	Push-in T-fitting · Push-in fittings
QS-3/8-6	Push-in fitting · Push-in fittings
QSL-3/8-6	Push-in L-fitting · Push-in fittings
QSLL-3/8-6	Push-in L-fitting, long · Push-in fittings
QST-3/8-6	Push-in T-fitting · Push-in fittings
GRLA-3/8-QS-6-D	One-way flow control valve · Function fittings
GRLA-3/8-QS-8-D	One-way flow control valve · Function fittings
HGL-3/8-B	Piloted check valve · Function fittings
HGL-3/8-QS-8	Piloted check valve · Function fittings
HGL-3/8-QS-10	Piloted check valve · Function fittings
GRLA-3/8-QS-6-RS-D	One-way flow control valve · Function fittings
GRLA-3/8-QS-8-RS-D	One-way flow control valve · Function fittings
GRLA-3/8-QS-10-RS-D	One-way flow control valve · Function fittings
SME-8M-DS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-ZS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-...-	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SAMH-S-N8-S-MK	Mounting kit · Mounting accessories
SAMH-S-N8-L-MK	Mounting kit · Mounting accessories
SDBT-MS-20NL-ZN-E-5-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-10-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
SDAT-MHS-M80-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
DAMT-V1-63-A	Trunnion mounting kit · Cylinder mountings
DAVM-MW-V1-50-V	Mounting kit · Mounting accessories
CRSNCS-63	Swivel flange · Cylinder mountings
ABAN-8-1M4-5-P2	Slot nut · Mounting accessories
ABAN-8-1M4-5-P100	Slot nut · Mounting accessories
NPFC-T-2G38-R38-FMF	T-fitting · Other connectors
NPFC-T-G38-2R38-FMM	T-fitting · Other connectors
NPFC-D-2G38-M	Double nipple · Other connectors
NPFC-E1-2G38-FM	Extension · Other connectors
NPFC-R-G38-G18-MF	Reducing nipple · Other connectors
NPFC-R-G38-G14-MF	Reducing nipple · Other connectors
NPFC-R-G38-G18-FM	Reducing nipple · Other connectors
NPFC-R-G38-G14-FM	Reducing nipple · Other connectors
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE	Position transmitter · Cylinder sensors for direct mounting
NPFC-D-2G38-M-P50	Double nipple · Other connectors
NPFC-R-G38-G14-MF-P50	Reducing nipple · Other connectors
SDAT-MHS-M80-1L-SV-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-DS-G14-G38-M	Double nipple · Other connectors
NPFC-DS-G38-G38-M	Double nipple · Other connectors
NPFC-RS-G38-G18-MF	Reducing nipple · Other connectors
NPFC-RS-G38-G14-MF	Reducing nipple · Other connectors
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
DARP-M16P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
SDBT-MS-20NL-ZN-E-2.5-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-20-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
