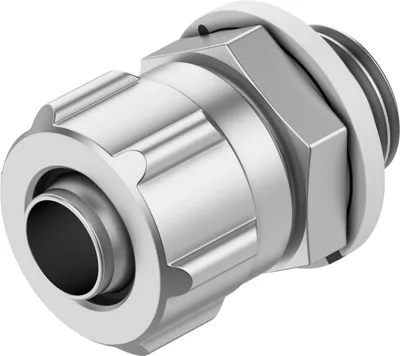

FESTO CK-3/8-PK-9

Quick connector. Bulkhead quick connector. Sealing cap for plastic tube fittings and barbed fittings. Multiple distributor. Union nut for CK tube fitting. Operating media: compressed air, vacuum, (water). Aluminium, steel, POM or zinc. Straight design, L-shaped, T-shaped

FESTOMFR # CK-3/8-PK-9SKU # CEY-937FC7827B01

Nominal size8

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignStraight design

Size of pack10

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Have questions?Chat on WhatsApp

About This Product

FESTO CK-3/8-PK-9

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size8

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignStraight design

Size of pack10

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible, Water: G-thread only possible with sealing ring type OL as additional accessory

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Nominal torque12.5

Tolerance for nominal tightening torque±20%

Pneumatic connection, port 1Male thread G3/8

Pneumatic connection, port 2For barbed fitting inside diameter of 9 mm with nut

Material union nutWrought aluminium alloy, anodised

Material screwed plugAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material sealing ringReinforced PA, TPE-U(PU)
