How can I get a price quote for Festo DHRC-6-A?

You can request a fast quote for Festo DHRC-6-A from Yılsa Engineering. Reference part number YLSJMCGTYF3UF6K. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DHRC-6-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DHRC-6-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DHRC-6-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

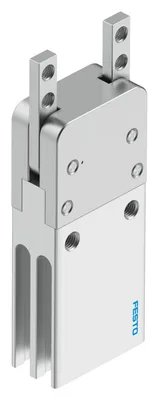

Festo DHRC-6-A

Radial gripper. Lateral gripper jaw support for high torque loads. Can be used as a double-acting or single-acting gripper. Single-acting variant with gripping force backup, normally open (NO). Suitable for external and internal gripping. Wide range of adaptation options on the drives. Sustainable in production thanks to reduced use of materials

FestoMFR # DHRC-6-ASKU # YLSJMCGTYF3UF6K

Size6

Max. replacement accuracy0.2

Max. opening angle180

Repetition accuracy, gripper0.1

Number of gripper jaws2

Drive systemPneumatic

Have questions?Chat on WhatsApp

About This Product

Festo DHRC-6-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

Max. replacement accuracy0.2

Max. opening angle180

Repetition accuracy, gripper0.1

Number of gripper jaws2

Drive systemPneumatic

Mounting positionAny

Mode of operationDouble-acting

Gripper functionRadial

Gripper force back-upNone

DesignConnection direction on the side, Force pilot operated motion sequence

Position detectionVia proximity switch

Symbol00991894

Operating pressure0.25, 0.8

Operating pressure2.5, 8

Operating pressure36.25, 116

Max. operating frequency of gripper3

Min. opening time at 0.6 MPa (6 bar, 87 psi)10

Min. closing time at 0.6 MPa (6 bar, 87 psi)19

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Ambient temperature-10, 60

Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening6.7

Total gripper torque, closing, 0.6 MPa (6 bar, 87 psi)4.8

Mass moment of inertia0.01

Max. force on gripper jaw Fz static12

Max. torque at gripper Mx static0.3

Max. torque at gripper My static0.3

Max. torque at gripper Mz static0.3

Product weight24.5

Type of mountingEither:, Direct mounting via through-hole, Direct mounting via thread

Pneumatic connectionM3

Note on materialsRoHS compliant

Material cover capWrought aluminium alloy, anodised

Material housingAnodised wrought aluminium alloy

Material gripper jawsHigh-alloy steel

Accessories 42

Genuine accessories that can be used with the Festo DHRC-6-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSM-M3-3	Push-in fitting · Fittings
QSML-M3-3	Push-in L-fitting · Fittings
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
SMT-10G-NS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SMT-10G-NS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
SMT-10G-PS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
SMT-10G-PS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-3-I	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
GRLA-M3	One-way flow control valve · Function fittings
GRLO-M3	Throttle valve · Function fittings
GRLA-M3-QS-3	One-way flow control valve · Function fittings
GRLO-M3-QS-3	Throttle valve · Function fittings
SMT-10M	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-L-M12	Proximity switch · Cylinder sensors for direct mounting
