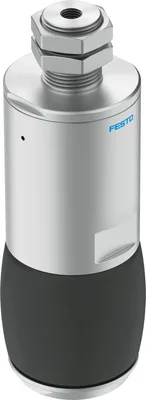

FESTO DHEB-63-E-U-E-L

Bellow gripper. 11 sizes for gripping diameter from 8 to 85 mm. Direction of movement: bellows upwards or downwards. Different bellows materials: EPDM or silicone. Air connection on the side or from above. Optimised process sequence with increased quality: prevents the workpieces from being scratched. Additional reliability: optional sensing via proximity or position sensor. For gentle internal gripping of delicate workpieces

FESTOMFR # DHEB-63-E-U-E-LSKU # CEY-937FC781B6C1

Size63

Stroke of bellows25

Min. ø to be gripped66

Max. ø to be gripped85

Mounting positionAny

Mode of operationSingle-acting, Closed

Have questions?Chat on WhatsApp

About This Product

FESTO DHEB-63-E-U-E-L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size63

Stroke of bellows25

Min. ø to be gripped66

Max. ø to be gripped85

Mounting positionAny

Mode of operationSingle-acting, Closed

Gripper functionAdaptive

DesignContracting diaphragm, Force pilot operated motion sequence

GuideBasic Guide

Position detectionVia proximity switch

Operating pressure4, 8

Reset pressure1

Max. operating frequency of gripper4

Min. opening time at 0.6 MPa (6 bar, 87 psi)40

Min. closing time at 0.6 MPa (6 bar, 87 psi)100

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature5, 60

Average replacement interval for the bellows0.5

Guide value for effective load5.1

Product weight785

Type of mountingWith male thread, Via lock nut

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material bellowsEPDM

Material housingAluminium, anodised

Accessories 20

Genuine accessories that can be used with the FESTO DHEB-63-E-U-E-L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LS-T-G18-Q4	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q6	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q8	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q4-F1A	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q8-F1A	One-way flow control valve · Function fittings
GRLA-1/8-B	One-way flow control valve · Function fittings
GRLA-1/8-PK-3-B	One-way flow control valve · Function fittings
GRLA-1/8-PK-4-B	One-way flow control valve · Function fittings
GRLA-1/8-PK-6-B	One-way flow control valve · Function fittings
GRLA-1/8-QS-3-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-4-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-MF-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-MF-D	One-way flow control valve · Function fittings
VFOH-LE-A-G18-Q4	One-way flow control valve · Function fittings
VFOH-LE-A-G18-Q6	One-way flow control valve · Function fittings
VFOH-LE-A-G18-Q8	One-way flow control valve · Function fittings
DASP-G3-63-C-U	Sensor rail · Mounting accessories
