How can I get a price quote for FESTO DHEB-51-E-U-S-P?

You can request a fast quote for FESTO DHEB-51-E-U-S-P from Yılsa Engineering. Reference part number CEY-937FC781B6B7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DHEB-51-E-U-S-P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DHEB-51-E-U-S-P genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DHEB-51-E-U-S-P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

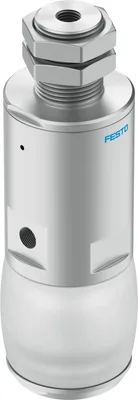

FESTO DHEB-51-E-U-S-P

Bellow gripper. 11 sizes for gripping diameter from 8 to 85 mm. Direction of movement: bellows upwards or downwards. Different bellows materials: EPDM or silicone. Air connection on the side or from above. Optimised process sequence with increased quality: prevents the workpieces from being scratched. Additional reliability: optional sensing via proximity or position sensor. For gentle internal gripping of delicate workpieces

FESTOMFR # DHEB-51-E-U-S-PSKU # CEY-937FC781B6B7

Size51

Stroke of bellows18

Min. ø to be gripped54

Max. ø to be gripped68

Mounting positionAny

Mode of operationSingle-acting, Closed

Have questions?Chat on WhatsApp

About This Product

FESTO DHEB-51-E-U-S-P

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size51

Stroke of bellows18

Min. ø to be gripped54

Max. ø to be gripped68

Mounting positionAny

Mode of operationSingle-acting, Closed

Gripper functionAdaptive

DesignContracting diaphragm, Force pilot operated motion sequence

GuideBasic Guide

Position detectionVia proximity switch

Operating pressure4, 8

Reset pressure1

Max. operating frequency of gripper4

Min. opening time at 0.6 MPa (6 bar, 87 psi)30

Min. closing time at 0.6 MPa (6 bar, 87 psi)70

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitable for use with foodSee supplementary material information

Ambient temperature5, 60

Average replacement interval for the bellows1

Guide value for effective load2.5

Product weight500

Type of mountingWith male thread, Via lock nut

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material bellowsVMQ (silicone)

Material housingAluminium, anodised

Accessories 20

Genuine accessories that can be used with the FESTO DHEB-51-E-U-S-P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LS-T-G18-Q4	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q6	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q8	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q4-F1A	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q8-F1A	One-way flow control valve · Function fittings
GRLA-1/8-B	One-way flow control valve · Function fittings
GRLA-1/8-PK-3-B	One-way flow control valve · Function fittings
GRLA-1/8-PK-4-B	One-way flow control valve · Function fittings
GRLA-1/8-PK-6-B	One-way flow control valve · Function fittings
GRLA-1/8-QS-3-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-4-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-MF-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-MF-D	One-way flow control valve · Function fittings
VFOH-LE-A-G18-Q4	One-way flow control valve · Function fittings
VFOH-LE-A-G18-Q6	One-way flow control valve · Function fittings
VFOH-LE-A-G18-Q8	One-way flow control valve · Function fittings
DASP-G3-51-C-U	Sensor rail · Mounting accessories
