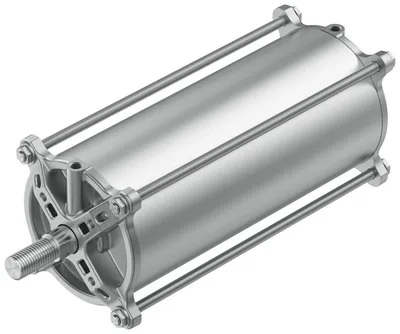

Festo DFPC-160-300-D
Linear actuator. Robust and corrosion-resistant tie-rod design. Ideal for use in harsh ambient conditions. Numerous configuration options. Variants with fastening interface in accordance with ISO 5210 or ISO 15552 with extended tie rods. Sustainable in production thanks to reduced use of materials
Size of valve actuator160
Flange hole patternF10
Stroke300
Piston diameter160 mm
Fitting connection conforms to standardISO 5210
Mounting positionAny
About This Product
Linear actuator. Robust and corrosion-resistant tie-rod design. Ideal for use in harsh ambient conditions. Numerous configuration options. Variants with fastening interface in accordance with ISO 5210 or ISO 15552 with extended tie rods. Sustainable in production thanks to reduced use of materials
Festo DFPC-160-300-D
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size of valve actuator160
Flange hole patternF10
Stroke300
Piston diameter160 mm
Fitting connection conforms to standardISO 5210
CushioningElastic cushioning rings/plates at both ends
Mounting positionAny
Mode of operationDouble-acting
DesignPiston, Piston rod, Tie rod 1, Cylinder barrel
Position detectionVia proximity switch
Symbol00991217
Operating pressure0.2, 0.8
Operating pressure2, 8
Operating pressure29, 116
Nominal operating pressure0.6
Nominal operating pressure6
Nominal operating pressure87
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
LABS (PWIS) conformityVDMA24364 zone III
Ambient temperature-20, 80
Impact energy in end positions3.3
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke11581
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke12064
Air consumption on return stroke per 10 mm1.351
Air consumption on advance stroke per 10 mm1.407
Moving mass for 0 mm stroke2102
Additional moving mass per 10 mm stroke64.34
Product weight10410
Basic weight for 0 mm stroke5948.7
Additional weight per 10 mm stroke148.61
Type of mountingon flange according to ISO 5210, With spacer bolt
Pneumatic connectionG1/4
Note on materialsRoHS compliant
Material coverGravity die-cast aluminium
Material piston rodHigh-alloy stainless steel
Material piston rod wiperTPE-U(PU)
Material nutHigh-alloy stainless steel
Material static sealsNBR
Material tie rodHigh-alloy stainless steel
Material cylinder barrelSmooth-anodised wrought aluminium alloy
Accessories 295
Genuine accessories that can be used with the Festo DFPC-160-300-D motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| GRLA-1/4-QS-8-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-8-RS-D | One-way flow control valve · Function fittings | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| FK-M27X2 | Self-aligning rod coupler · Piston-rod attachments | |
| SGS-M27X2 | Rod eye · Piston-rod attachments | |
| SG-M27X2-B | Rod clevis · Piston-rod attachments | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubes | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubes | |
| CRSMB-8-32/100 | Mounting kit · Retainer for proximity sensor | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubes | |
| DASP-F10-160-A | Sensor bracket · Retainer for proximity sensor | |
| QS-G1/4-8 | Push-in fitting · Fittings | |
| QSL-G1/4-8 | Push-in L-fitting · Fittings | |
| GASA-MIP-CTR-12M-10 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-100 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-1000 | AX Industrial App · Digital services | |
| VFOE-LE-T-G14-Q6 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q8 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q10 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q8-P50 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q6-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q8-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q10-F1A | One-way flow control valve · Function fittings | |
| CK-1/4-PK-4 | Quick connector · Quick connectors | |
| CK-1/4-PK-6 | Quick connector · Quick connectors | |
| CK-1/4-PK-9 | Quick connector · Quick connectors | |
| LCK-1/4-PK-4 | Elbow quick connector · Quick connectors | |
| LCK-1/4-PK-6 | Elbow quick connector · Quick connectors | |
| TCK-1/4-PK-4 | T quick connector · Quick connectors | |
| TCK-1/4-PK-6 | T quick connector · Quick connectors | |
| CK-1/4-PK-4-KU | Quick connector · Quick connectors | |
| CK-1/4-PK-6-KU | Quick connector · Quick connectors | |
| CK-1/4-PK-9-KU | Quick connector · Quick connectors | |
| LCK-1/4-PK-4-KU | Elbow quick connector · Quick connectors | |
| LCK-1/4-PK-6-KU | Elbow quick connector · Quick connectors | |
| TCK-1/4-PK-4-KU | T quick connector · Quick connectors | |
| TCK-1/4-PK-6-KU | T quick connector · Quick connectors | |
| SEU-1/4 | Quick exhaust valve · Function fittings | |
| GRU-1/4-B | Flow control/silencer · Function fittings | |
| SE-1/4-B | Quick exhaust valve · Function fittings | |
| LCK-1/4-PK-9 | Elbow quick connector · Quick connectors | |
| CN-1/4-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/4-PK-6 | Barbed fitting · Barbed fittings | |
| TCN-1/4-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/4-PK-6 | Barbed T-fitting · Barbed fittings | |
| LCN-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| KSG-M27X2 | Coupling piece · Piston rod attachments | |
| LCNH-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| QSW-1/4-6 | Push-in fitting · Push-in fittings | |
| QSW-1/4-8 | Push-in fitting · Push-in fittings | |
| QSW-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSLL-G1/4-12 | Push-in L-fitting, long · Push-in fittings | |
| QST-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-10-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I-100 | Push-in fitting · Push-in fittings | |
| QS-1/4-6 | Push-in fitting · Push-in fittings | |
| QS-1/4-8 | Push-in fitting · Push-in fittings | |
| QS-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/4-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-10-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/4-8-B | Multiple distributor · Push-in fittings | |
| QST3-1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/4-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| CRSG-M27X2 | Rod clevis · Stainless-steel piston-rod attachments | |
| QS-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/4-8 | Multiple distributor · Push-in fittings | |
| QST3-G1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-G1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-4 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-4 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-4 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/4-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-4 | Push-in Y-fitting · Push-in fittings | |
| QS-1/4-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| GRLA-1/4-QS-6-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-10-D | One-way flow control valve · Function fittings | |
| CRSGS-M27X2 | Rod eye · Stainless-steel piston-rod attachments | |
| HGL-1/4-B | Piloted check valve · Function fittings | |
| HGL-1/4-QS-8 | Piloted check valve · Function fittings | |
| HGL-1/4-QS-10 | Piloted check valve · Function fittings | |
| GRLA-1/4-QS-6-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-10-RS-D | One-way flow control valve · Function fittings | |
| GRLSA-1/4-QS-8 | One-way flow control valve · Function fittings | |
| VBQF-U-G14-E | Quick exhaust valve · Function fittings | |
| VBQF-U-G14-Q8 | Quick exhaust valve · Function fittings | |
| VBQF-D-G14-E | Quick exhaust valve · Function fittings | |
| SE-1/4 | Quick exhaust valve · Function fittings | |
| VFOH-LE-A-G14-Q8 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G14-Q10 | One-way flow control valve · Function fittings | |
| NPFC-L-2G14-F | Elbow fitting · Other connectors | |
| NPFC-L-R14-G14-MF | Elbow fitting · Other connectors | |
| NPFC-L-2R14-M | Elbow fitting · Other connectors | |
| NPFC-Y-3G14-F | Y-fitting · Other connectors | |
| NPFC-Y-R14-2G14-MFF | Y-fitting · Other connectors | |
| NPFC-T-3G14-F | T-fitting · Other connectors | |
| NPFC-T-R14-2G14-MFF | T-fitting · Other connectors | |
| NPFC-T-2G14-R14-FMF | T-fitting · Other connectors | |
| NPFC-T-3R14-M | T-fitting · Other connectors | |
| NPFC-T-G14-2R14-FMM | T-fitting · Other connectors | |
| NPFC-T-2R14-G14-MMF | T-fitting · Other connectors | |
| NPFC-X-4G14-F | X-fitting · Other connectors | |
| NPFC-X-R14-3G14-MFFF | X-fitting · Other connectors | |
| NPFC-D-G18-G14-M | Double nipple · Other connectors | |
| NPFC-D-2G14-M | Double nipple · Other connectors | |
| NPFC-D-R18-R14-M | Double nipple · Other connectors | |
| NPFC-D-2R14-M | Double nipple · Other connectors | |
| NPFC-S-2G14-F | Sleeve · Other connectors | |
| NPFC-E1-2G14-FM | Extension · Other connectors | |
| NPFC-E2-2G14-FM | Extension · Other connectors | |
| NPFC-E3-2G14-FM | Extension · Other connectors | |
| NPFC-R-G38-G14-MF | Reducing nipple · Other connectors | |
| NPFC-R-G38-G14-FM | Reducing nipple · Other connectors | |
| NPFC-D-2G14-M-P100 | Double nipple · Other connectors | |
| NPFC-R-G38-G14-F | Reducing sleeve · Other connectors | |
| NPFC-R-G38-G14-MF-P50 | Reducing nipple · Other connectors | |
| NPFC-R-G34-G14-MF | Reducing nipple · Other connectors | |
| NPFC-H-G14-F | Bulkhead fitting · Other connectors | |
| NPFC-DS-G14-G14-M | Double nipple · Other connectors | |
| NPFC-DS-G14-G38-M | Double nipple · Other connectors | |
| NPFC-RS-G38-G14-MF | Reducing nipple · Other connectors |
Related Products
View Details
Festo
DSL-16- -270-P-A-S2-B
MFR #DSL-16- -270-P-A-S2-B
SKU #YLS8O1DFLDQOC8L
View Details
Festo
DSL-16- -270-P-A-S20-KF-B
MFR #DSL-16- -270-P-A-S20-KF-B
SKU #YLSTG3XGDLFNV8F
View Details
Festo
DSL-16- -270-P-A-S2-KF-B
MFR #DSL-16- -270-P-A-S2-KF-B
SKU #YLSQQ5PTFWYNWLG
View Details
Festo
DSL-16- -270-CC-A-S20-B
MFR #DSL-16- -270-CC-A-S20-B
SKU #YLSDU3JXV17IHRS
View Details
Festo
DSL-16- -270-CC-A-S2-B
MFR #DSL-16- -270-CC-A-S2-B
SKU #YLSZMIJIJLMBL90
View Details
Festo
DSL-16- -270-CC-A-S20-KF-B
MFR #DSL-16- -270-CC-A-S20-KF-B
SKU #YLSLHL38NKFHUO8
View Details
Festo
DSL-16- -270-CC-A-S2-KF-B
MFR #DSL-16- -270-CC-A-S2-KF-B
SKU #YLSZZWYKQDM0IH
View Details
Festo
DSL-20- -270-P-A-S20-B
MFR #DSL-20- -270-P-A-S20-B
SKU #YLSTMW2XEHMMFUC
View Details
Festo
DSL-20- -270-P-A-S2-B
MFR #DSL-20- -270-P-A-S2-B
SKU #YLSOYJHZ6WDVCCK
Featured Products
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Related Searches
Festo DFPC-160-300-D priceFesto DFPC-160-300-D quotebuy Festo DFPC-160-300-DDFPC-160-300-D priceDFPC-160-300-D stock availabilityFesto spare partsFesto DFPC-160-300-D equivalentFesto DFPC-160-300-D specifications
