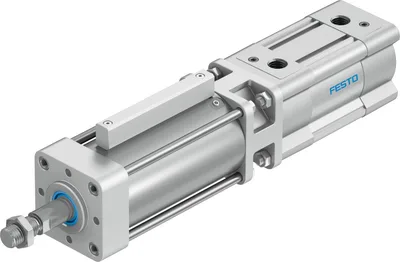

Festo DFLC-63- -

Cylinder with holding brake. Combination of holding brake and standards-based cylinder based on ISO 15552. Holding function: retains the piston rod by clamping with frictional locking. Emergency braking function: stops the movement of the piston rod by clamping with frictional locking. With safety functions. Variants to EU Explosion Protection Directive (ATEX). Optional: high level of corrosion protection. For position sensing

FestoMFR # DFLC-63- -SKU # YLSCAACS2RYKYY

Stroke10, 2000

Piston diameter63 mm

Piston rod threadM16x1.5

Mounting positionAny

Piston-rod endMale thread

DesignPiston, Piston rod, Profile barrel

Have questions?Chat on WhatsApp

About This Product

Festo DFLC-63- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke10, 2000

Piston diameter63 mm

Piston rod threadM16x1.5

Based on standardISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

Type of clamping with direction of actionAt both ends, Clamping via spring force, released via compressed air

Piston-rod endMale thread

DesignPiston, Piston rod, Profile barrel

Position detectionVia proximity switch

Symbol00995696

VariantsPiston rod at one end

Safety functionHolding and stopping a movement

Performance Level (PL)Stopping, holding, blocking a movement/category 1, Performance Level c

Operating pressure0.06, 0.8

Operating pressure0.6, 8

Operating pressure8.7, 116

Max. permissible test pressure8

Min. release pressure3.8

Mode of operationDouble-acting

ApprovalGerman Technical Control Board (TÜV)

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX), To EC Machinery Directive

UKCA marking (see declaration of conformity)To UK regulations for machines

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Certificate issuing authorityGerman Technical Control Board (TÜV) CA 697

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T120°C Db

Explosion ambient temperature-20°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-20, 80

Cushioning length22

Static holding force3300

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1682

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870

Moving mass for 0 mm stroke955

Additional moving mass per 10 mm stroke25

Basic weight for 0 mm stroke6185

Additional weight per 10 mm stroke62

Type of mountingWith female thread, With accessories

Release connection, clamping unitG1/8

Pneumatic connectionG3/8

Note on materialsRoHS compliant

Material coverDie-cast aluminium, Wrought aluminium alloy

Material sealsNBR, TPE-U(PU)

Material housingSteel

Material piston rodHard-chrome-plated steel

Material cylinder barrelSmooth-anodised wrought aluminium alloy

Accessories 284

Genuine accessories that can be used with the Festo DFLC-63- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SNC-63	Swivel flange · Mounting accessories
PUN-H-10X1,5-SW	Plastic tubing · Tubes
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SNCB-63	Swivel flange · Mounting accessories
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
CRGRLA-3/8-B	One-way flow control valve · Function fittings
SNCS-63	Swivel flange · Mounting accessories
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Proximity sensors
SNCL-63	Swivel flange · Mounting accessories
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Proximity sensors
GRLA-3/8-QS-10-D	One-way flow control valve · Function fittings
FK-M16X1,5	Self-aligning rod coupler · Mounting accessories
CRHNC-63	Foot mounting · Mounting accessories
CRFK-M16X1,5	Self-aligning rod coupler · Function fittings
SDBT-MS-20NL-ZN-E-5-LE-EX6	Proximity sensor · Proximity sensors
SG-M16X1,5	Rod clevis · Mounting accessories
SNCB-63-R3	Swivel flange · Mounting accessories
SDBT-MS-20NL-ZN-E-10-LE-EX6	Proximity sensor · Proximity sensors
QS-G3/8-10	Push-in fitting · Fittings
CRSGS-M16X1,5	Rod eye · Mounting accessories
SGS-M16X1,5	Rod eye · Mounting accessories
VFOE-LE-T-G38-Q10	One-way flow control valve · Function fittings
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
CRSG-M16X1,5	Rod clevis · Mounting accessories
QSL-G3/8-10	Push-in L-fitting · Fittings
CRSNCS-63	Swivel flange · Mounting accessories
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
PUN-H-10X1,5-NT	Plastic tubing · Tubes
NPQR-DK-G38-Q10	Push-in fitting · Fittings
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
HNC-63	Foot mounting · Mounting accessories
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
NPQR-L-G38-Q10	Push-in fitting · Fittings
PUN-H-10X1,5-BL	Plastic tubing · Tubes
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
VFOE-LE-T-G38-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-P20	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-F1A	One-way flow control valve · Function fittings
CK-3/8-PK-6	Quick connector · Quick connectors
CK-3/8-PK-9	Quick connector · Quick connectors
CK-3/8-PK-13	Quick connector · Quick connectors
LCK-3/8-PK-6	Elbow quick connector · Quick connectors
LCK-3/8-PK-9	Elbow quick connector · Quick connectors
TCK-3/8-PK-6	T quick connector · Quick connectors
TCK-3/8-PK-9	T quick connector · Quick connectors
CK-3/8-PK-6-KU	Quick connector · Quick connectors
CK-3/8-PK-9-KU	Quick connector · Quick connectors
SEU-3/8	Quick exhaust valve · Function fittings
GRU-3/8-B	Flow control/silencer · Function fittings
SE-3/8-B	Quick exhaust valve · Function fittings
CN-3/8-PK-6	Barbed fitting · Barbed fittings
TCN-3/8-PK-6	Barbed T-fitting · Barbed fittings
LCN-3/8-PK-6	Barbed elbow fitting · Barbed fittings
KSG-M16X1,5	Coupling piece · Piston rod attachments
LCNH-3/8-PK-6	Barbed elbow fitting · Barbed fittings
QSW-3/8-10	Push-in fitting · Push-in fittings
QSW-3/8-12	Push-in fitting · Push-in fittings
QS-3/8-8-50	Push-in fitting · Push-in fittings
QS-3/8-10-50	Push-in fitting · Push-in fittings
QS-3/8-12-20	Push-in fitting · Push-in fittings
QSL-3/8-8-50	Push-in L-fitting · Push-in fittings
QSL-3/8-10-20	Push-in L-fitting · Push-in fittings
QSL-3/8-12-20	Push-in L-fitting · Push-in fittings
QST-3/8-8-50	Push-in T-fitting · Push-in fittings
QST-3/8-10-20	Push-in T-fitting · Push-in fittings
QST-3/8-12-20	Push-in T-fitting · Push-in fittings
QS-G3/8-8-50	Push-in fitting · Push-in fittings
QS-G3/8-10-50	Push-in fitting · Push-in fittings
QS-G3/8-12-20	Push-in fitting · Push-in fittings
QSL-G3/8-8-50	Push-in L-fitting · Push-in fittings
QSL-G3/8-10-20	Push-in L-fitting · Push-in fittings
QSL-G3/8-12-20	Push-in L-fitting · Push-in fittings
QST-G3/8-8-50	Push-in T-fitting · Push-in fittings
QST-G3/8-10-20	Push-in T-fitting · Push-in fittings
QST-G3/8-12-20	Push-in T-fitting · Push-in fittings
GRLA-3/8-B	One-way flow control valve · Function fittings
QS-3/8-8	Push-in fitting · Push-in fittings
QS-3/8-10	Push-in fitting · Push-in fittings
QS-3/8-12	Push-in fitting · Push-in fittings
QS-3/8-8-I	Push-in fitting · Push-in fittings
QS-3/8-10-I	Push-in fitting · Push-in fittings
QS-3/8-12-I	Push-in fitting · Push-in fittings
QSL-3/8-8	Push-in L-fitting · Push-in fittings
QSL-3/8-10	Push-in L-fitting · Push-in fittings
QSL-3/8-12	Push-in L-fitting · Push-in fittings
QSLL-3/8-8	Push-in L-fitting, long · Push-in fittings
QSLL-3/8-10	Push-in L-fitting, long · Push-in fittings
QSLL-3/8-12	Push-in L-fitting, long · Push-in fittings
QSLV-3/8-8	Push-in L-fitting · Push-in fittings
QSLV-3/8-10	Push-in L-fitting · Push-in fittings
QSLV-3/8-12	Push-in L-fitting · Push-in fittings
QSLV-3/8-8-I	Push-in L-fitting · Push-in fittings
QSLV-3/8-10-I	Push-in L-fitting · Push-in fittings
QSLV-3/8-12-I	Push-in L-fitting · Push-in fittings
QST-3/8-8	Push-in T-fitting · Push-in fittings
QST-3/8-10	Push-in T-fitting · Push-in fittings
QST-3/8-12	Push-in T-fitting · Push-in fittings
QSTL-3/8-8	Push-in T-fitting · Push-in fittings
QSTL-3/8-10	Push-in T-fitting · Push-in fittings
QSTL-3/8-12	Push-in T-fitting · Push-in fittings
QSY-3/8-8	Push-in Y-fitting · Push-in fittings
QSY-3/8-10	Push-in Y-fitting · Push-in fittings
QSY-3/8-12	Push-in Y-fitting · Push-in fittings
QSYL-3/8-8	Push-in Y-fitting · Push-in fittings
QSYL-3/8-10	Push-in Y-fitting · Push-in fittings
QSYL-3/8-12	Push-in Y-fitting · Push-in fittings
QSTF-3/8-8-B	Push-in T-fitting · Push-in fittings
QSTF-3/8-10-B	Push-in T-fitting · Push-in fittings
QSTF-3/8-12-B	Push-in T-fitting · Push-in fittings
QSYLV-3/8-10	Push-in Y-fitting · Push-in fittings
QSYTF-3/8-10-B	Multiple distributor · Push-in fittings
QST3-3/8-10-8	Multiple distributor · Push-in fittings
QSLV2-3/8-8	Multiple distributor · Push-in fittings
QSLV2-3/8-10	Multiple distributor · Push-in fittings
QSLV2-3/8-12	Multiple distributor · Push-in fittings
QSLV3-3/8-8	Multiple distributor · Push-in fittings
QSLV3-3/8-10	Multiple distributor · Push-in fittings
QSLV3-3/8-12	Multiple distributor · Push-in fittings
QSLV4-3/8-8	Multiple distributor · Push-in fittings
QSLV4-3/8-10	Multiple distributor · Push-in fittings
QSLV4-3/8-12	Multiple distributor · Push-in fittings
QSLV6-3/8-8	Multiple distributor · Push-in fittings
QSLV6-3/8-10	Multiple distributor · Push-in fittings
QSLV6-3/8-12	Multiple distributor · Push-in fittings
QSR-3/8-8	Push-in fitting, rotatable · Push-in fittings
QSR-3/8-10	Push-in fitting, rotatable · Push-in fittings
QSR-3/8-12	Push-in fitting, rotatable · Push-in fittings
QSRL-3/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSRL-3/8-10	Push-in L-fitting, rotatable · Push-in fittings
QSRL-3/8-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-3/8-8	Push-in fitting, self-sealing · Push-in fittings
QSK-3/8-10	Push-in fitting, self-sealing · Push-in fittings
QSK-3/8-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-3/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-3/8-10	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-3/8-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-3/8-8	Push-in fitting · Push-in fittings
QS-V0-3/8-10	Push-in fitting · Push-in fittings
QS-V0-3/8-12	Push-in fitting · Push-in fittings
QSL-V0-3/8-8	Push-in L-fitting · Push-in fittings
QSL-V0-3/8-10	Push-in L-fitting · Push-in fittings
QSL-V0-3/8-12	Push-in L-fitting · Push-in fittings
QST-V0-3/8-8	Push-in T-fitting · Push-in fittings
QST-V0-3/8-10	Push-in T-fitting · Push-in fittings
QST-V0-3/8-12	Push-in T-fitting · Push-in fittings
CRFNG-63	Flange mounting · Cylinder mountings
CRZNG-63	Trunnion flange · Cylinder mountings
QS-3/8-16	Push-in fitting · Push-in fittings
QSL-3/8-16	Push-in L-fitting · Push-in fittings
QST-3/8-16	Push-in T-fitting · Push-in fittings
FNC-63	Flange mounting · Cylinder mountings
ZNCF-63	Trunnion flange · Cylinder mountings
QS-3/8-5/16-I-U-M	Push-in fitting · Push-in fittings
QS-3/8-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-G3/8-8	Push-in fitting · Push-in fittings
QS-G3/8-12	Push-in fitting · Push-in fittings
QS-G3/8-8-I	Push-in fitting · Push-in fittings
QS-G3/8-10-I	Push-in fitting · Push-in fittings
QS-G3/8-12-I	Push-in fitting · Push-in fittings
QSL-G3/8-8	Push-in L-fitting · Push-in fittings
QSL-G3/8-12	Push-in L-fitting · Push-in fittings
QSLL-G3/8-8	Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-10	Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-12	Push-in L-fitting, long · Push-in fittings
QSLV-G3/8-8	Push-in L-fitting · Push-in fittings
QSLV-G3/8-10	Push-in L-fitting · Push-in fittings
QSLV-G3/8-12	Push-in L-fitting · Push-in fittings
QSLV-G3/8-8-I	Push-in L-fitting · Push-in fittings
QSLV-G3/8-10-I	Push-in L-fitting · Push-in fittings
QSLV-G3/8-12-I	Push-in L-fitting · Push-in fittings
QST-G3/8-8	Push-in T-fitting · Push-in fittings
QST-G3/8-10	Push-in T-fitting · Push-in fittings
QST-G3/8-12	Push-in T-fitting · Push-in fittings
QSTL-G3/8-8	Push-in T-fitting · Push-in fittings
QSTL-G3/8-10	Push-in T-fitting · Push-in fittings
QSTL-G3/8-12	Push-in T-fitting · Push-in fittings
QSY-G3/8-8	Push-in Y-fitting · Push-in fittings
QSY-G3/8-10	Push-in Y-fitting · Push-in fittings
QSY-G3/8-12	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-8	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-10	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-12	Push-in Y-fitting · Push-in fittings
QSTF-G3/8-8	Push-in T-fitting · Push-in fittings
QSTF-G3/8-10	Push-in T-fitting · Push-in fittings
QSTF-G3/8-12	Push-in T-fitting · Push-in fittings
QSYLV-G3/8-10	Push-in Y-fitting · Push-in fittings
QSYTF-G3/8-10	Multiple distributor · Push-in fittings
QST3-G3/8-10-8	Multiple distributor · Push-in fittings
QSLV2-G3/8-8	Multiple distributor · Push-in fittings
QSLV2-G3/8-10	Multiple distributor · Push-in fittings
QSLV2-G3/8-12	Multiple distributor · Push-in fittings
QSLV3-G3/8-8	Multiple distributor · Push-in fittings
QSLV3-G3/8-10	Multiple distributor · Push-in fittings
QSLV3-G3/8-12	Multiple distributor · Push-in fittings
QSLV4-G3/8-8	Multiple distributor · Push-in fittings
QSLV4-G3/8-10	Multiple distributor · Push-in fittings
QSLV4-G3/8-12	Multiple distributor · Push-in fittings
QSLV6-G3/8-8	Multiple distributor · Push-in fittings
QSLV6-G3/8-10	Multiple distributor · Push-in fittings
QSLV6-G3/8-12	Multiple distributor · Push-in fittings
QSR-G3/8-8	Push-in fitting, rotatable · Push-in fittings
QSR-G3/8-10	Push-in fitting, rotatable · Push-in fittings
QSR-G3/8-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G3/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G3/8-10	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G3/8-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G3/8-8	Push-in fitting, self-sealing · Push-in fittings
QSK-G3/8-10	Push-in fitting, self-sealing · Push-in fittings
QSK-G3/8-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G3/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G3/8-10	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G3/8-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G3/8-8	Push-in fitting · Push-in fittings
QS-V0-G3/8-10	Push-in fitting · Push-in fittings
QS-V0-G3/8-12	Push-in fitting · Push-in fittings
QSL-V0-G3/8-8	Push-in L-fitting · Push-in fittings
QSL-V0-G3/8-10	Push-in L-fitting · Push-in fittings
QSL-V0-G3/8-12	Push-in L-fitting · Push-in fittings
QST-V0-G3/8-8	Push-in T-fitting · Push-in fittings
QST-V0-G3/8-10	Push-in T-fitting · Push-in fittings
QST-V0-G3/8-12	Push-in T-fitting · Push-in fittings
QS-G3/8-16	Push-in fitting · Push-in fittings
QSL-G3/8-16	Push-in L-fitting · Push-in fittings
QST-G3/8-16	Push-in T-fitting · Push-in fittings
QS-3/8-6	Push-in fitting · Push-in fittings
QSL-3/8-6	Push-in L-fitting · Push-in fittings
QSLL-3/8-6	Push-in L-fitting, long · Push-in fittings
QST-3/8-6	Push-in T-fitting · Push-in fittings
GRLA-3/8-QS-6-D	One-way flow control valve · Function fittings
GRLA-3/8-QS-8-D	One-way flow control valve · Function fittings
HGL-3/8-B	Piloted check valve · Function fittings
HGL-3/8-QS-8	Piloted check valve · Function fittings
HGL-3/8-QS-10	Piloted check valve · Function fittings
GRLA-3/8-QS-6-RS-D	One-way flow control valve · Function fittings
GRLA-3/8-QS-8-RS-D	One-way flow control valve · Function fittings
GRLA-3/8-QS-10-RS-D	One-way flow control valve · Function fittings
SME-8M-DS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-ZS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-...-	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMAT-8M-U-E-0,3-M8D	Position transmitter · Cylinder sensors for direct mounting
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SDAT-MHS-M50-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M80-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M100-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M125-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M160-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
NPFC-T-2G38-R38-FMF	T-fitting · Other connectors
NPFC-T-G38-2R38-FMM	T-fitting · Other connectors
NPFC-D-2G38-M	Double nipple · Other connectors
NPFC-E1-2G38-FM	Extension · Other connectors
NPFC-R-G38-G18-MF	Reducing nipple · Other connectors
NPFC-R-G38-G14-MF	Reducing nipple · Other connectors
NPFC-R-G38-G18-FM	Reducing nipple · Other connectors
NPFC-R-G38-G14-FM	Reducing nipple · Other connectors
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
NPFC-D-2G38-M-P50	Double nipple · Other connectors
NPFC-R-G38-G14-MF-P50	Reducing nipple · Other connectors
DADG-D-F8-16/20	Proximity switch · Cylinder sensors for direct mounting
SDAT-MHS-M50-1L-SV-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M80-1L-SV-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M100-1L-SV-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M125-1L-SV-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M160-1L-SV-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-DS-G14-G38-M	Double nipple · Other connectors
NPFC-DS-G38-G38-M	Double nipple · Other connectors
NPFC-RS-G38-G18-MF	Reducing nipple · Other connectors
NPFC-RS-G38-G14-MF	Reducing nipple · Other connectors
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
DARP-M16P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
SDBT-MS-20NL-ZN-E-2.5-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-20-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
