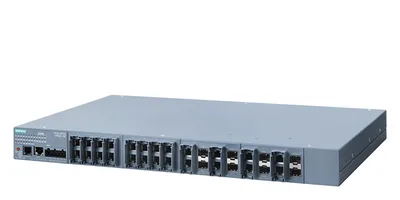

Siemens 6GK5524-8GS00-3AR2
See SIOS ID 109983816 anahtar; layer 3 ile Key-Plug mevcut; güç kaynağı 230 V AC; 24x 10/100/1000 Mbit/s RJ45; 8x 100/1000 Mbit/s SFP; contains 8 combo ports; in total 24 ports can be used; error sinyalizasyon kontak; select/set pushbutton; PROFINET IO cihaz; redundancy functions; Office features (RSTP, VLAN, IGMP,...); C-PLUG in scope of besleme.
product brand nameSCALANCE
product type designationXR524-8C
transfer rate10, 100, 1000 Mbit/s
for multimode0
for SFP8
for SFP8
Ürün Hakkında
See SIOS ID 109983816 anahtar; layer 3 ile Key-Plug mevcut; güç kaynağı 230 V AC; 24x 10/100/1000 Mbit/s RJ45; 8x 100/1000 Mbit/s SFP; contains 8 combo ports; in total 24 ports can be used; error sinyalizasyon kontak; select/set pushbutton; PROFINET IO cihaz; redundancy functions; Office features (RSTP, VLAN, IGMP,...); C-PLUG in scope of besleme.
Siemens 6GK5524-8GS00-3AR2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXR524-8C
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment24; RJ45
for multimode0
for SFP8
number of combo ports / with RJ45 interface for optical plug-in transceiver8
interfaces / for communication / plug-in
for SFP8
interfaces / other
for operator console1
for signaling contact1
for power supply1
for operator consoleRJ11
for management purposesRJ45
for signaling contact2-pole terminal block
for power supply4-pole terminal block
product feature / hot-swappable interface modulesVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage supply / redundant power supply unitYok
type of voltage / 1 / of the supply voltageAC
supply voltage / 1 / rated value230 V
power loss [W] / 1 / rated value24 W
supply voltage / 1 / voltage range90... 264
consumed current / 1 / maximum0,6 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage3,15 A / 250 V
ambient conditions
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
design19-inch rack
number of modular height units / relating to 19-inch cabinet1
width449 mm
height44 mm
depth305 mm
net weight4,2 kg
19-inch installationVar
35 mm DIN-rail mountingYok
wall mountingYok
S7-300 rail mountingYok
S7-1500 rail mountingYok
type of cable outletCable outlet front
product features, product functions, product components / general
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
port mirroringVar
multiport mirroringVar
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
telegram length / for Ethernet / maximum9216 bayt
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
FTPVar
BOOTPVar
GMRPVar
DCPVar
LLDPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedVar
VLAN - IP-basedVar
VLAN dynamicVar
number of VLANs / maximum255
number of VLANs - dynamic / maximum255
product functions / DHCP
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / routing
service / routing / noteIP routing in combination with KEY-PLUG XR-500
static IP routingVar
static IP routing IPv6Var
dynamic IP routingVar
dynamic IP routing IPv6Var
RIPv2Var
RIPnG for IPv6Var
OSPFv2Var
OSPFv3 for IPv6Var
VRRPVar
VRRP for IPv6Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Var
redundancy procedure MSTPVar
passive listeningVar
LACPVar
product functions / security
IEEE 802.1x (radius)Var
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
product functions / time
SICLOCK supportVar
NTPVar
SNTPVar
standards, specifications, approvals
CE markingVar
UKCA markingVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 60950-1; CSA C22.2 Yok. 213-M1987
standards, specifications, approvals / other
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total436,68 kg
during manufacturing207 kg
during operation228,75 kg
after end of life0,93 kg
product functions / general
warranty period5 a
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing207 kg
global warming potential [CO2 eq] / during operation228,75 kg
global warming potential [CO2 eq] / after end of life0,93 kg
global warming potential [CO2 eq] / total436,68 kg
