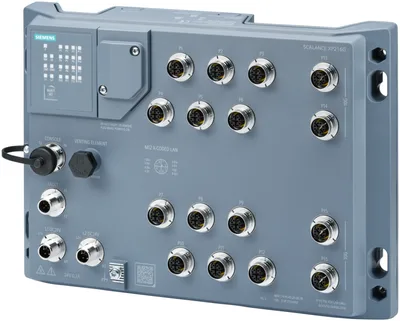

Siemens 6GK5216-0XA00-2AS6
SCALANCE XP216G, IP65, managed layer 2 IE anahtar, 12x 100/1000 Mbps, 4x 10 Gbps, M12 ports, LED diagnostics, error sinyalizasyon kontak, yedekli besleme besleme, PROFINET IO cihaz, network management, can be operated in redundant ring, dahil dust caps, -40 °C to +70 °C C-PLUG optional.
product brand nameSCALANCE
product type designationXP216G
transfer rate10, 100, 1000 Mbit/s
transfer rate2,5, 5, 10 Gbit/s
number of 10 Gbit/s M12-Ports (X-coded)4
for operator console1
Ürün Hakkında
SCALANCE XP216G, IP65, managed layer 2 IE anahtar, 12x 100/1000 Mbps, 4x 10 Gbps, M12 ports, LED diagnostics, error sinyalizasyon kontak, yedekli besleme besleme, PROFINET IO cihaz, network management, can be operated in redundant ring, dahil dust caps, -40 °C to +70 °C C-PLUG optional.
Siemens 6GK5216-0XA00-2AS6
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXP216G
transfer rate
transfer rate10, 100, 1000 Mbit/s
transfer rate2,5, 5, 10 Gbit/s
interfaces / for communication / integrated
for network components or terminal equipment16; M12
number of 10/100/1000 Mbit/s M12-ports (X-coded)12
number of 10 Gbit/s M12-Ports (X-coded)4
interfaces / other
for operator console1
for signaling contact1
for power supply2
for operator console5-pole M12 socket (A-coded)
for signaling contact5-pole M12 plug (B-coded)
for power supply4-pole M12 plug (L-coded)
C-PLUGVar
product function / device replacement with replacement of the storage mediumVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value16,8 W
consumed current / 1 / at rated supply voltage / maximum0,7 A
supply voltage / 1 / voltage range19,2... 31,2
consumed current / 1 / maximum0,7 A
type of electrical connection / 1 / for power supply4-pole M12 plug (L-coded)
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage4 A / 60 V
ambient conditions
during operation-40... +70 °C
during storage-40... +85 °C
during transport-40... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP65

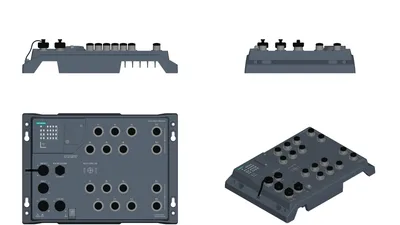

design, dimensions and weights
designcompact
width280 mm
height200 mm
depth49 mm
net weight2,5 kg
material / of the enclosureAluminum
fastening methodmodule rack mounting, back wall mounting
wall mountingVar
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
QoS according to DSCPVar
Cut Through switching methodYok
Store & Forward switching methodVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
SMTP serverYok
port mirroringVar
multiport mirroringVar
CoSVar
with IRT / PROFINET IO switchYok
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
network load class / according to PROFINETIII
telegram length / for Ethernet / maximum10240 bayt
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
SFTPVar
BOOTPVar
GMRPVar
DCPVar
LLDPVar
EtherNet/IPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP serverVar
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode
of the PROFINET IO device / is supported / H-Sync forwardingVar
of the PROFINET IO device / is supported / PROFINET system redundancyVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Var
redundancy procedure MSTPVar
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
passive listeningVar
LACPVar
system modification during operation
product function / configuration in RUN via CiR/H-CiRVar
product functions / security
IEEE 802.1x (radius)Var
RADIUS clientVar
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
SNTP clientVar
NTPVar
SNTPVar
IEEE 1588 profile defaultVar
standards, specifications, approvals
CE markingVar
UKCA markingVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
standards, specifications, approvals / other
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total487,66 kg
during manufacturing61,3 kg
during operation426 kg
after end of life0,36 kg
product functions / general
MTBF23 a
reference temperature / for MTBF determination40 °C
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing61,3 kg
global warming potential [CO2 eq] / during operation426 kg
global warming potential [CO2 eq] / after end of life0,36 kg
global warming potential [CO2 eq] / total487,66 kg
Aksesuarlar 76
Siemens 6GK5216-0XA00-2AS6 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK5980-3BC00-0AA5 | Aksesuar · Cables · serial cable | |
| 6GK5980-2FA00-0AA0 | Aksesuar | |
| 6ES7194-4GA00-0AA0 | Aksesuar · Module rack | |
| 6GK1908-0DC10-6AA3 | Aksesuar | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GE50 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-0DB50-6AA8 | Aksesuar | |
| 6GK1901-0DB50-6AA0 | Aksesuar | |
| 6GK1901-0DE10-6AA0 | Aksesuar | |
| 6GK1901-0DE20-6AA0 | Aksesuar | |
| 6GK1901-0DM20-2AA5 | Aksesuar | |
| 6GK1901-0DM30-2AA5 | Aksesuar | |
| 6XV1801-2A | Aksesuar · Cables · power cables | |
| 6XV1801-2B | Aksesuar · Cables · power cables | |
| 6XV1876-2A | Aksesuar · Cables · network cable electrical | |
| 6XV1876-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN80 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SN15 | Aksesuar · Cables · network cable electrical | |
| 6GK1906-0EA00 | Aksesuar | |
| 6GK1906-0EB00 | Aksesuar | |
| 6XV1801-6DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN15 | Aksesuar · Cables · power cables | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6GK1900-0AB10 | Aksesuar | |
| 6GK1901-0DE11-6AA0 | Aksesuar | |
| 6GK1901-0DE21-6AA0 | Aksesuar | |
| 6XV1801-6DE30 | Aksesuar · Cables · power cables | |
| 6GK1906-0EA10 | Aksesuar | |
| 6GK1906-0EB10 | Aksesuar |
İlgili Ürünler
Detayları Gör
Siemens
6GK1411-5AB10
MFR #6GK1411-5AB10
SKU #YLSWCVVF4PMPV5M
Detayları Gör
Siemens
6GK1411-5AC00
MFR #6GK1411-5AC00
SKU #YLSX1BWVS5DB97H
Detayları Gör
Siemens
6GK1411-5BB00
MFR #6GK1411-5BB00
SKU #YLS8ZXA1XMOM1Z2
Detayları Gör
Siemens
6GK1562-3AA01
MFR #6GK1562-3AA01
SKU #YLSUPE0SE2ALSG
Detayları Gör
Siemens
6GK1571-1AA00-0AD0
MFR #6GK1571-1AA00-0AD0
SKU #YLSNEGUF7BUFUDI
Detayları Gör
Siemens
6GK1700-0AA16-0AA0
MFR #6GK1700-0AA16-0AA0
SKU #YLSSJRML6XO3MG
Detayları Gör
Siemens
6GK1700-0AA17-0AA0
MFR #6GK1700-0AA17-0AA0
SKU #YLSYL6QBEDHUOAQ
Detayları Gör
Siemens
6GK1700-0AA18-0AA0
MFR #6GK1700-0AA18-0AA0
SKU #YLSMHAXXPQWTSZT
Detayları Gör
Siemens
6GK1700-0AA23-0AA0
MFR #6GK1700-0AA23-0AA0
SKU #YLSEYSK9HEFTQ3
Öne Çıkan Ürünler
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
İlgili Aramalar
Siemens 6GK5216-0XA00-2AS6 fiyatSiemens 6GK5216-0XA00-2AS6 teklif alSiemens 6GK5216-0XA00-2AS6 satın al6GK5216-0XA00-2AS6 fiyat6GK5216-0XA00-2AS6 stok durumuSiemens yedek parçaSiemens 6GK5216-0XA00-2AS6 muadilSiemens 6GK5216-0XA00-2AS6 teknik özellikler
