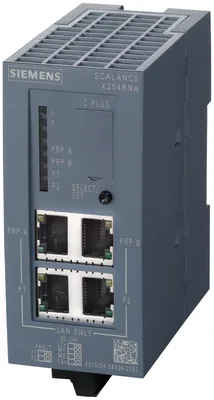

Siemens 6GK5204-0BA00-2KB2
A halefi ürün will be mevcut in calendar year 2026 network access; 4x 100 Mbit/s RJ45 ports; LED diagnostics; error-signaling kontak ile set buton; yedekli besleme besleme; network management; dahil elektronik manuel on CD-ROM, C-PLUG optional için PRP networks;
product brand nameSCALANCE
product type designationX204RNA
transfer rate10, 100 Mbit/s
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
Ürün Hakkında
A halefi ürün will be mevcut in calendar year 2026 network access; 4x 100 Mbit/s RJ45 ports; LED diagnostics; error-signaling kontak ile set buton; yedekli besleme besleme; network management; dahil elektronik manuel on CD-ROM, C-PLUG optional için PRP networks;
Siemens 6GK5204-0BA00-2KB2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationX204RNA
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment4
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
C-PLUGVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value3,5 W
supply voltage / 1 / voltage range19,2... 28,8
consumed current / 1 / maximum0,15 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage2,0 A
ambient conditions
during operation-40... +60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

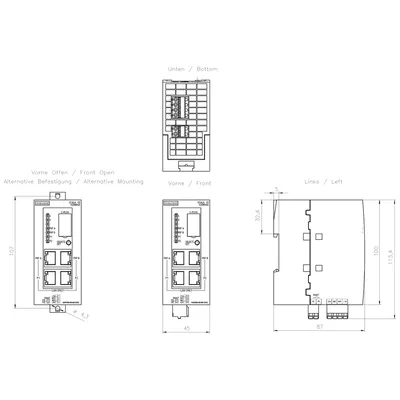

design, dimensions and weights
designcompact
width45 mm
height100 mm
depth87 mm
net weight0,23 kg
35 mm DIN-rail mountingVar
wall mountingVar
S7-300 rail mountingYok
S7-1500 rail mountingYok
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Yok
port mirroringYok
multiport mirroringYok
with IRT / PROFINET IO switchYok
PROFINET IO diagnosisYok
switch-managedYok
TelnetYok
HTTPVar
HTTPSVar
TFTPYok
FTPYok
BOOTPYok
GMRPYok
DCPVar
LLDPYok
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Yok
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Yok
media redundancy protocol (MRP) with redundancy managerYok
ring redundancyYok
high speed redundancy protocol (HRP) with redundancy managerYok
high speed redundancy protocol (HRP) with standby redundancyYok
High-availability Seamless Redundancy (HSR)Yok
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Var
High-availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP) couplingYok
passive listeningYok
product functions / security
SSHVar
product functions / time
SICLOCK supportYok
NTPYok
SNTPVar
standards, specifications, approvals
CE markingVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4:2001 (Class A)
for immunity to EMCEN 61000-6-4:2001
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 Yok. 60950-1
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
railway application in accordance with EN 50155Yok
railway application in accordance with EN 50124-1Yok
IEC 61850-3Yok
RoHS conformityVar
product functions / general
MTBF92,45 a
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
