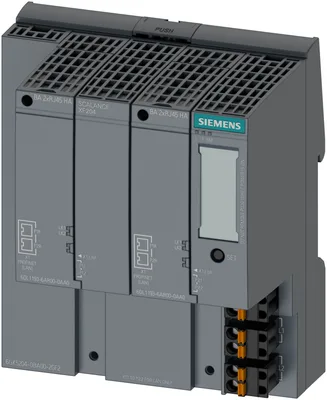

Siemens 6GK5204-0BA00-2GF2
SCALANCE XF204 managed two BusAdapters BA 2xRJ45 HA IEC 62443-4-2 certified; IE anahtar, 4 x 10/100 Mbps, 2 x BusAdapter arayüz, error sinyalizasyon kontak, set pushbutton, redundant 24 V DC güç kaynağı, PROFINET cihaz, extended sıcaklık range -40 °C...+70 °C, conformal coating, ile elektronik manuel on DVD, C-PLUG optional, teslimat ile BusAdapter. 6DL1193-6AR00-0AA0
product brand nameSCALANCE
product type designationXF204
transfer rate10, 100 Mbit/s
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
Ürün Hakkında
SCALANCE XF204 managed two BusAdapters BA 2xRJ45 HA IEC 62443-4-2 certified; IE anahtar, 4 x 10/100 Mbps, 2 x BusAdapter arayüz, error sinyalizasyon kontak, set pushbutton, redundant 24 V DC güç kaynağı, PROFINET cihaz, extended sıcaklık range -40 °C...+70 °C, conformal coating, ile elektronik manuel on DVD, C-PLUG optional, teslimat ile BusAdapter. 6DL1193-6AR00-0AA0
Siemens 6GK5204-0BA00-2GF2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXF204
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment4
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply2-pole terminal block
C-PLUGVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value8,6 W
supply voltage / 1 / voltage range19,2... 28,8
consumed current / 1 / maximum0,36 A
type of electrical connection / 1 / for power supply2-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage2,5 A (cannot be replaced by user)
ambient conditions
during operation-40... +70 °C
during storage-40... +85 °C
during transport-40... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

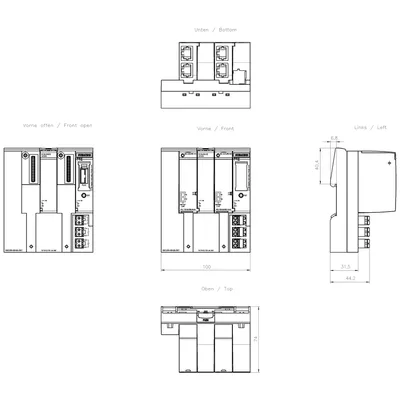

design, dimensions and weights
designcompact
width100 mm
height117 mm
depth74 mm
net weight0,25 kg
35 mm DIN-rail mountingVar
wall mountingYok
S7-300 rail mountingYok
S7-1500 rail mountingYok
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
port mirroringVar
multiport mirroringVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
FTPYok
BOOTPVar
DCPVar
LLDPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
product functions / DHCP
DHCP clientVar
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode
Media Redundancy Protocol for Planned Duplication (MRPD)Yok
of the PROFINET IO device / is supported / H-Sync forwardingVar
of the PROFINET IO device / is supported / PROFINET system redundancyVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure RSTP+Var
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYok
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
passive listeningVar
product functions / security
SSHVar
product functions / time
SICLOCK supportYok
NTPYok
SNTPVar
standards, specifications, approvals
CE markingVar
KC onayıVar
for EMC interference emissionEN 61000-6-4:2001 (Class A)
for immunity to EMCEN 61000-6-2, EN 61000-6-4
for safety / from CSA and ULUL 61010-2-201
standards, specifications, approvals / other
railway application in accordance with EN 50124-1Yok
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
product functions / general
warranty period5 a
