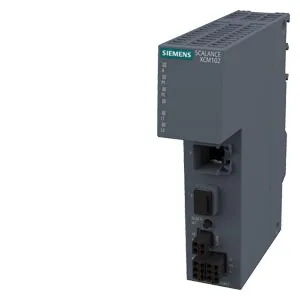

Siemens 6GK5102-1GS00-2AC2
SCALANCE XCM102, IE media konvertör unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error sinyalizasyon kontak ile set pushbutton yedekli besleme besleme, securing collar, manuel mevcut as a download.
product brand nameSCALANCE
transfer rate100 Mbit/s, 1000
for signaling contact1
for power supply1
for redundant voltage supply1
for signaling contact2-pole terminal block
Ürün Hakkında
SCALANCE XCM102, IE media konvertör unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error sinyalizasyon kontak ile set pushbutton yedekli besleme besleme, securing collar, manuel mevcut as a download.
Siemens 6GK5102-1GS00-2AC2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate100 Mbit/s, 1000
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum2
for network components or terminal equipment1
for SFP / plug-in1; 100 Mbps ve 1000 Mbps SFP plug-in transceiver usable
for signaling contact1
for power supply1
for redundant voltage supply1
for network components or terminal equipmentRJ45 port
for signaling contact2-pole terminal block
for power supply2 x 3-pole terminal block
signal inputs/outputs
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltageDC
consumed current / 1 / at rated supply voltage / maximum0,15 A
power loss [W] / 1 / rated value2,5 W
supply voltage / 2 / rated value24 V
type of voltage / 2 / of the supply voltageAC
consumed current / 2 / at rated supply voltage / maximum0,3 A
power loss [W] / 2 / rated value5 W
product component / fusing at power supply inputVar
maximumdependent on the use of SFP plug-in transceiver
maximumdependent on the use of SFP plug-in transceiver
ambient conditions
during operation-40... +70 °C
during storage-40... +85 °C
during transport-40... +85 °C
notemaks. operating temperature dependent on the use of SFP plug-in transceiver
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
width35 mm
height147 mm
depth123 mm
net weight0,22 kg
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
wall mountingVar
standards, specifications, approvals
CE markingVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)Var
Germanische Lloyd (GL)Var
Lloyds Register of Shipping (LRS)Var
Polski Rejestr Statkow (PRS)Var
Royal Institution of Naval Architects (RINA)Var
Chinese Classification Society (CCS)Var
MTBF152 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total49,64 kg
during manufacturing8,3 kg
during operation41 kg
after end of life0,34 kg
Aksesuarlar 120
Siemens 6GK5102-1GS00-2AC2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK5980-0BB10-0AA5 | Aksesuar | |
| 6GK5980-1DB10-0AA5 | Aksesuar | |
| 6GK5980-4AA00-0AA5 | Aksesuar | |
| 6GK5991-1AD00-8AA0 | Aksesuar | |
| 6GK5991-1AD00-8AC0 | Aksesuar | |
| 6GK5991-1AE00-8AA0 | Aksesuar | |
| 6GK5991-1AE30-8AA0 | Aksesuar | |
| 6GK5991-1AF00-8AA0 | Aksesuar | |
| 6GK5991-1AF00-8AC0 | Aksesuar | |
| 6GK5991-1AD00-8FA0 | Aksesuar | |
| 6GK5991-1AF00-8FA0 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6GK5992-1AG00-8AA0 | Aksesuar | |
| 6GK5992-1AL00-8AA0 | Aksesuar | |
| 6GK5992-1AL00-8FA0 | Aksesuar | |
| 6GK5992-1AL00-8RA0 | Aksesuar | |
| 6GK5992-1AL00-8TA0 | Aksesuar | |
| 6GK5992-1AM00-8AA0 | Aksesuar | |
| 6GK5992-1AM00-8AC0 | Aksesuar | |
| 6GK5992-1AM00-8FA0 | Aksesuar | |
| 6GK5992-1AM00-8RA0 | Aksesuar | |
| 6GK5992-1AM00-8TA0 | Aksesuar | |
| 6GK5992-1AM30-8AA0 | Aksesuar | |
| 6GK5992-1AN00-8AA0 | Aksesuar | |
| 6GK5992-1AP00-8AA0 | Aksesuar | |
| 6GK5992-1AQ00-8AA0 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6GK1901-1BB12-2AA0 | Aksesuar | |
| 6GK1901-1BB12-2AB0 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5MH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1843-5EH10-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH20-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH30-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0CA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH20-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH30-0AA0 | Aksesuar · Cables · network cable optical |
