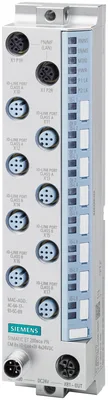

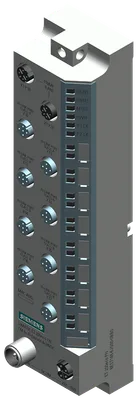

Siemens 6ES7148-6JG00-0BB0

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 6ES7148-6JG00-0BB0

SIMATIC ET 200eco PN, CM 8x IO-Link + DI 4x 24 V DC, M12-L, 8x M12, 4x port sınıf A + 4x port sınıf B, channel diagnostics, shared cihaz ile 2 controllers, prioritized startup, MRP, S2 redundancy, I&M0...3, multi-fieldbus, PN IO, Ethernet IP, Modbus TCP, koruma sınıfı IP67 / IP69K

SiemensMFR # 6ES7148-6JG00-0BB0SKU # YLS4X1YCPS5K7W9
HW functional statusFS05
Firmware sürümüV5.2.x
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
I&M dataVar; I&M0 to I&M3, I&M5
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SIMATIC ET 200eco PN, CM 8x IO-Link + DI 4x 24 V DC, M12-L, 8x M12, 4x port sınıf A + 4x port sınıf B, channel diagnostics, shared cihaz ile 2 controllers, prioritized startup, MRP, S2 redundancy, I&M0...3, multi-fieldbus, PN IO, Ethernet IP, Modbus TCP, koruma sınıfı IP67 / IP69K

Siemens 6ES7148-6JG00-0BB0

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler
HW functional statusFS05
Firmware sürümüV5.2.x
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Manufacturer ID according to ODVA (VendorID)04E3H
Device ID according to ODVA (Product code)0FA9H
Product function
I&M dataVar; I&M0 to I&M3, I&M5
Isochronous modeYok
IRTVar
Prioritized startupVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V17 veya üstü with HSP 0363
PROFINET from GSD version/GSD revisionGSDML V2.4.x
Multi Fieldbus Configuration Tool (MFCT)from V1.3 SP1
Operating mode
IO-LinkVar
DIVar
DQYok
MSIYok
MSOYok
Besleme gerilimi
power supply according to NEC Class 2 requiredYok
Load voltage 1L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar; against destruction
Load voltage 2L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar; Against destruction; encoder power supply outputs applied with reversed polarity
Giriş akımı
Akım tüketimi (nominal değer)70 mA; without load
from load voltage 1L+ (unswitched voltage)12 A; Maximum value
from load voltage 2L+, max.12 A; Maximum value
Encoder supply
Number of outputs8
24 V enkoder beslemesi
Short-circuit protectionVar; per channel, electronic
Output current, max.0,5 A; Per channel
Güç kaybı
Güç kaybı, tipik5,5 W
Address space per module
Inputs264 bayt; + 8 bytes for QI information
Outputs256 bayt
Submodules
Number of configurable submodules, max.9
Dijital girişler
Dijital giriş sayısı4
Kaynak/çeken girişP-reading
Input characteristic curve in accordance with IEC 61131, type 3Var
Tüm montaj konumları
— up to 60 °C, max.4
Giriş gerilimi
Nominal değer (DC)24 V
“0” sinyali için-3 to +5V
“1” sinyali için+11 to +30V
Giriş akımı
for signal "1", typ.2,5 mA
Standart girişler için
— “0”dan “1”e, maks.typically 3 ms
— at "1" to "0", max.typically 3 ms
Kablo uzunluğu
Ekransız, maks.30 m
IO-Link
Port sayısı8
of which simultaneously controllable8
IO-Link protocol 1.0Var
IO-Link protocol 1.1Var
Transmission rate4,8 kBaud (COM1); 38,4 kBaud (COM2), 230 kBaud (COM3)
Cycle time, min.2 ms
Size of process data, input per port33 bayt
Size of process data, input per module264 bayt
Size of process data, output per port32 bayt
Size of process data, output per module256 bayt
Memory size for device parameter2 kB; for her biri port
Master backuppossible with LIOLink_Master function block
Configuration without S7-PCTPossible; autostart/manual function
Cable length unshielded, max.20 m
Operating modes
IO-LinkVar
DIVar
DQVar; maks. 100 mA
Connection of IO-Link devices
Port type AVar; via 3-core cable
Port type BVar; additional device supply: maks. 2 A per port, maks. 6 A per module
via three-wire connectionVar
Arayüzler
Transmission procedure100BASE-TX
PROFINET arayüz sayısı1
1. Arayüz
Arayüz tipiPROFINET with 100 Mbit/s full duplex (100BASE-TX)
Arayüz tipleri
M12 portVar; 2x M12, 4-pin, D-coded
Port sayısı2
Dahili switchVar
Protokoller
PROFINET IO cihazıVar
Açık IE haberleşmesiVar
Servisler
— IRTVar; 250 µs to 4 ms in 125 µs frame
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.2
M12 port
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
İletim hızı, maks.100 Mbit/s
Protokoller
PROFINET IO protokolünü desteklerVar
PROFIsafeYok
EtherNet/IPVar
Modbus TCPVar
Yedeklilik modu
PROFINET sistem yedekliliği (S2)Var
— on S7-1500R/HVar
— on S7-400HVar
PROFINET sistem yedekliliği (R1)Yok
H-Sync forwardingVar
Ortam yedekliliği
— MRPVar
— MRPDYok
Servisler
— CIP Implicit MessagingVar
— CIP Explicit MessagingVar
— CIP SafetyYok
— Paylaşımlı cihazVar; 2x EtherNet/IP Scanner
— Number of scanners with shared device, max.2
Updating times
— Requested Packet Interval (RPI)2 ms
Yedeklilik modu
— DLR (Device Level Ring)Yok
Address area
— Address space per module, max.300 bayt
— LargeForwardOpen (Class3)Yok
Servisler
— read coils (code=1)Var
— read discrete inputs (code=2)Var
— Read Holding Registers (Code=3)Var
— write single coil (code=5)Var
— write multiple coils (code=15)Var
— Write Multiple Registers (Code=16)Var
— Parameter change by masterYok
— Modbus TCP Security ProtocolYok
Address space per station
— Address space per station, max.300 bayt
— Access-consistent address space2 bayt
Updating time
— I/O request interval2 ms
Connections
— number of connections per device12
Açık IE haberleşmesi
TCP/IPVar; (only EtherNet/IP veya Modbus TCP)
SNMPVar
LLDPVar
ARPVar
Alarms
Diagnostic alarmVar; Parameterizable
Maintenance interruptVar; Parameterizable
Diagnoses
Diagnostic information readableVar
Monitoring the supply voltageVar
— ParametrelenebilirVar
Wire breakVar
Short-circuit encoder supplyVar; Per channel
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iVar; Yellow LED
Monitoring of the supply voltage (PWR-LED)Var; green LED
NS LEDVar; green/red LED
MS LEDVar; green/red LED
IO LEDVar; red/green/yellow LEDs
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
For load voltage monitoringVar; green LED
Connection display LINK TX/RXVar; green LED, only link
Potential separation
between the load voltagesVar
between Ethernet and electronicsVar
Potential separation channels
Kanallar arasıYok
between the channels and the power supply of the electronicsYok
tested with
24 V DC circuits707 V DC (type test)
Test voltage for interface, rms value [Vrms]1.500 V; According to IEEE 802,3
Koruma derecesi ve sınıfı
IP koruma sınıfıIP65/67/69K
Standartlar, onaylar, sertifikalar
Suitable for safety-related tripping of standard modulesVar; from FS01
Highest safety class achievable for safety-related tripping of standard modules
Performance level according to ISO 13849-1PL d
Category according to ISO 13849-1Cat. 3
SIL acc. to IEC 62061SIL 2
Use in hazardous areas
Explosion protection category for gasATEX, UKEX, IECEx, CCCEx for Zone 2
Explosion protection category for dustATEX, UKEX, IECEx, CCCEx for Zone 22
Security
signed firmware updateVar
securely removing dataVar
Çalışma ortam sıcaklığı
min.-40 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Ambient air temperature-barometric pressure-altitudeUp to maks. 5.000 m, installation height > 2.000 m additional restrictions, see manual for details
Connection method
Design of electrical connection4/5-pin M12 circular connectors
Design of electrical connection for the inputs and outputsM12, 5-pin, A-coded
Design of electrical connection for supply voltageM12, 4-pin, L-coded
Ölçüler
Genişlik45 mm
Yükseklik200 mm
Derinlik48 mm
Ağırlık
Ağırlık, yaklaşık780 g
