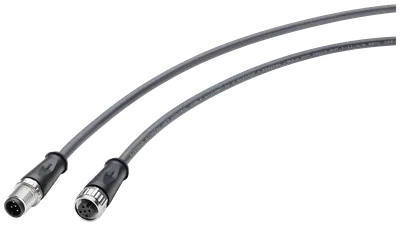

Siemens 6XV1801-2CN10
Control connecting cable M12-180/M12-180; 5-core; IO-Link port Class B; pre-assembled with M12 plug and M12 socket (A-coded); straight cable outlet; length 10 m.
product brand nameSIMATIC NET
cable designationLIHH11Y 5X1X0.25 SW
wire length10 m
operating voltage / RMS value300 V
continuous current / of the power lines2,5 A
number of electrical cores5
Ürün Hakkında
Control connecting cable M12-180/M12-180; 5-core; IO-Link port Class B; pre-assembled with M12 plug and M12 socket (A-coded); straight cable outlet; length 10 m.
Siemens 6XV1801-2CN10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for usePlug-in cable for connecting IO-Link components ve sensing mechanisms to IO modules, degree of protection IP 65/67
cable designationLIHH11Y 5X1X0.25 SW
wire length10 m
electrical data
operating voltage / RMS value300 V
conductor cross section / of the power line0,4 mm²
continuous current / of the power lines2,5 A
mechanical data
number of electrical cores5
type of electrical connectionM12-180
AWG number24
of inner conductor0,7 mm
of the wire insulation1,2 mm
of cable sheath5,3 mm
symmetrical tolerance of the outer diameter / of cable sheath0,3 mm
conductor class6
of the conductorCU, blank
of the wire insulationFRNC
of cable sheathPUR
product component / PE connectionYok
marking / of coresColor
of the power line insulationBrown / white / blue / black / gray
of cable sheathBlack
with single bend / minimum permissible21 mm
with multiple bends / minimum permissible42 mm
tensile load / maximum10 N
weight per length40 kg/km
plug
type of plug interlockscrewed
design of plug-in connectionM12-180
connector codingM12
connector coding / of the M12 circular connectorA coded
ambient conditions
during operation-15... +80 °C
during storage-25... +80 °C
during transport-25... +80 °C
during installation-15... +80 °C
fire behaviorFlame-resistant according to IEC 60332-1-2, UL 2556, Sec. 9,3 (FT1), CSA C22.2 Yok.2556, UL 1581, Sec. 1061 (cable flame)
class of burning behaviour / according to EN 13501-6Fca
to mineral oilConditional resistance
to greaseConditional resistance
to waterConditional resistance
radiological resistance / to UV radiationsunlight resistant acc. to UL 2556 sec. 4.2.8.5 (720h)
protection class IPIP65 / 67
product features, product functions, product components / general
halogen-freeVar
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; UL Style 20233 (80°C/300V) CSA C22.2 Yok. 210 I/II A/B FT1
certificate of suitabilityUL2238 E300110
EAC approvalVar
RoHS conformityVar
