Siemens 6XV1871-2S
Industrial Ethernet FC TP Festoon cable 2x2 (PROFINET Type B), TP installation cable for Festoon suspension, 4-core shielded Cat5e, sold by the meter, min. 5 million bending cycles, delivery unit max. 1000 m, minimum order quantity 20 m.
product brand nameSIMATIC NET
cable designationSF/UTP, 2YY (ST) CY 2x2x0,75/1,5 LI GN
wire lengthsold by the meter
at 10 MHz / maximum0,063 dB/m
at 100 MHz / maximum0,213 dB/m
at 1 MHz ... 100 MHz100 Ω
Ürün Hakkında
Industrial Ethernet FC TP Festoon cable 2x2 (PROFINET Type B), TP installation cable for Festoon suspension, 4-core shielded Cat5e, sold by the meter, min. 5 million bending cycles, delivery unit max. 1000 m, minimum order quantity 20 m.
Siemens 6XV1871-2S
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor continuous motion in a trailing cable, festoon mounting
cable designationSF/UTP, 2YY (ST) CY 2x2x0,75/1,5 LI GN
wire lengthsold by the meter
electrical data
at 10 MHz / maximum0,063 dB/m
at 100 MHz / maximum0,213 dB/m
at 1 MHz ... 100 MHz100 Ω
of the characteristic impedance at 1 MHz … 100 MHz5 %
at 1 MHz ... 100 MHz0,5 dB/m
transfer impedance per length / at 10 MHz100 mΩ/m
loop resistance per length / maximum120 mΩ/m
RMS value80 V
NVP value in percent66 %
mechanical data
number of electrical cores4

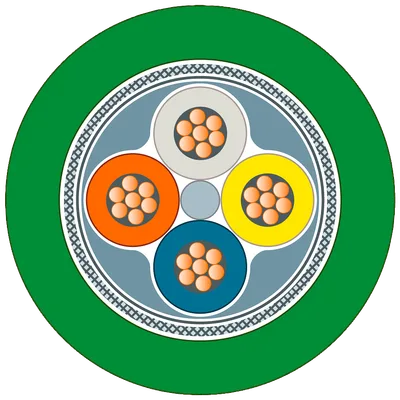

design of the shieldSF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires
type of electrical connection / FastConnectVar
of AWG22 insulated conductor0,75 mm
of inner conductor0,75 mm
of the wire insulation1,5 mm
of the inner sheath of the cable3,9 mm
of cable sheath6,5 mm
symmetrical tolerance of the outer diameter / of cable sheath0,2 mm
of the wire insulationpolyethylene (PE)
of the inner sheath of the cablePVC
of cable sheathPVC
of the insulation of data wireswhite/yellow/blue/orange
of cable sheathgreen
with single bend / minimum permissible30 mm
with multiple bends / minimum permissible70 mm
with continuous bending70 mm
number of bending cycles5000000; 5 million bending cycles a bending radius of 70 mm ve an acceleration of 4 m/s²
tensile load / maximum150 N
weight per length68 kg/km
ambient conditions
during operation-40... +75 °C
during storage-50... +75 °C
during transport-50... +75 °C
during installation-20... +60 °C
noteelectrical properties measured 20 °C
fire behaviorflame resistant according to UL 1685 (CSA FT 4)
class of burning behaviour / according to EN 13501-6Eca
to mineral oilconditional resistance
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeYok
PoE capabilityVar
PoE+ capabilityVar
silicon-freeVar
with 100BaseTX85 m
at AC / core-to-core2000 V
at AC / core shield2000 V
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; c(UL)us, CMG / PLTC / Sun Res / OIL RES
UL/ETL style / 600 V RatingVar
EAC approvalVar
CE markingVar
RoHS conformityVar
standard for structured cablingCat5e
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Aksesuarlar 20
Siemens 6XV1871-2S motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-1GA00 | Aksesuar | |
| 6GK1901-1GB01 | Aksesuar | |
| 6GK1901-0DB20-6AA0 | Aksesuar | |
| 6GK1901-0DM30-2AA5 | Aksesuar | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1BB10-2AB0 | Aksesuar | |
| 6GK1901-1BB10-2AE0 | Aksesuar | |
| 6GK1901-1BB10-6AA0 | Aksesuar | |
| 6GK1901-1BB12-2AB0 | Aksesuar | |
| 6GK1901-1BB12-2AE0 | Aksesuar | |
| 6GK1901-1BB20-2AA0 | Aksesuar | |
| 6GK1901-1BB20-2AB0 | Aksesuar | |
| 6GK1901-1BB20-2AE0 | Aksesuar | |
| 6GK1901-1BB20-6AA0 | Aksesuar | |
| 6GK1901-1BB21-6AA0 | Aksesuar | |
| 6GK1901-1BB30-0AA0 | Aksesuar | |
| 6GK1901-1BB30-0AB0 | Aksesuar | |
| 6GK1901-1BB30-0AE0 | Aksesuar | |
| 6GK1901-1FC00-0AA0 | Aksesuar · Cabling system | |
| 6GK1901-1BB50-0AA0 | Aksesuar |
