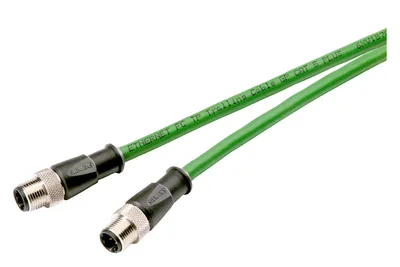

Siemens 6XV1870-8AE50
Industrial Ethernet connecting Cable M12-180/M12-180, pre-assembled IE FC Trailing cable GP, with 2 M12 plugs (D-coded) length 0.5 m.
product brand nameSIMATIC NET
wire length0,5 m
number of electrical connections2
at 10 MHz / maximum0,063 dB/m
at 100 MHz / maximum0,213 dB/m
at 1 MHz ... 100 MHz100 Ω
Ürün Hakkında
Industrial Ethernet connecting Cable M12-180/M12-180, pre-assembled IE FC Trailing cable GP, with 2 M12 plugs (D-coded) length 0.5 m.
Siemens 6XV1870-8AE50
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor connecting Industrial Ethernet stations (e.g. SIMATIC ET200 ve SCALANCE XP-200) in IP 65/67 degree of protection
cable designationSF/UTP, 2YY (ST) CY 2x2x0,75/1,5-100 LI GN
wire length0,5 m
electrical data
number of electrical connections2
at 10 MHz / maximum0,063 dB/m
at 100 MHz / maximum0,213 dB/m
at 1 MHz ... 100 MHz100 Ω
of the characteristic impedance at 1 MHz … 100 MHz5 %
at 1 MHz ... 100 MHz0,5 dB/m
transfer impedance per length / at 10 MHz20 mΩ/m
RMS value80 V
NVP value in percent66 %
mechanical data
number of electrical cores4
design of the shieldSF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires
of AWG22 insulated conductor0,75 mm
of inner conductor0,75 mm
of the wire insulation1,5 mm
of the inner sheath of the cable3,9 mm
of cable sheath6,5 mm
symmetrical tolerance of the outer diameter / of cable sheath0,2 mm
of the wire insulationpolyethylene (PE)
of the inner sheath of the cablePVC
of cable sheathPVC
of the insulation of data wireswhite/yellow/blue/orange
of cable sheathgreen
with single bend / minimum permissible32,5 mm
with multiple bends / minimum permissible49 mm
with continuous bending100 mm
number of bending cycles3000000; Drag chain suitable for 3 million bending cycles a bending radius of 100 mm, a speed of 4 m/s ve an acceleration of 4 m/s²
tensile load / maximum150 N
weight per length68 kg/km
plug
type of plug interlockscrewed
design of plug-in connectionM12-180
tightening torque / for M12 round connector / maximum0,6 N·m
connector codingM12
of the M12 circular connectorD-coded
ambient conditions
during operation0... 60 °C
during storage-25... +75 °C
during transport-25... +75 °C
during installation0... 60 °C
noteelectrical properties measured 20 °C
fire behaviorflame resistant according to UL 1685 (CSA FT 4)
to mineral oilconditional resistance
to greaseConditional resistance
radiological resistance / to UV radiationresistant
protection class IPIP65, IP67
product features, product functions, product components / general
halogen-freeYok
PoE capabilityVar
PoE+ capabilityVar
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; c(ETL)us, CMG FT4 / (ETL)us PLTC / Sun Res / OIL RES
UL/ETL style / 600 V RatingVar; cRUus AWM 21694 AWM I A/B 60°C 600V FT2
certificate of suitabilityUL 2238
EAC approvalVar
CE markingVar
RoHS conformityVar
standard for structured cablingCat5e
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Aksesuarlar 4
Siemens 6XV1870-8AE50 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-0DM20-2AA5 | Aksesuar | |
| 6GK1901-0DM30-2AA5 | Aksesuar | |
| 6GK1901-0DE20-6AA0 | Aksesuar | |
| 6GK1901-0DE21-6AA0 | Aksesuar |
