Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

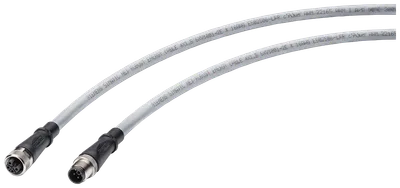

Siemens 6XV1801-6EE50
robust power connecting cable M12-180/M12-180; IP69; 4x1.5 sq. mm for power supply of end devices/network components; preassembled cable with M12 plug and M12 socket; L-coded; 4-pole; 0.5 m
product brand nameSIMATIC NET
cable designationLI9YY6Y 4X1X1.5 VZN GY
wire length0,5 m
insulation resistance coefficient20000 MΩ·m
operating voltage / RMS value300 V
number of electrical cores4
Ürün Hakkında
robust power connecting cable M12-180/M12-180; IP69; 4x1.5 sq. mm for power supply of end devices/network components; preassembled cable with M12 plug and M12 socket; L-coded; 4-pole; 0.5 m
Siemens 6XV1801-6EE50
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor connecting Industrial Ethernet stations with degree of protection IP65/67/69. Cable with FEP jacket (fluorinated plastic, perfluoroethylene propylene) for use in the food, beverage ve tobacco industry (IP69 resistant). Cable is water-repellent, weather-proof, resistant to microbes, ve extremely resistant to many cleaning agents ve disinfectants (such as hypochlorite, chlorine dioxide, peroxyacetic acid, ve quaternary ammonium cations).
cable designationLI9YY6Y 4X1X1.5 VZN GY
wire length0,5 m
electrical data
insulation resistance coefficient20000 MΩ·m
operating voltage / RMS value300 V
conductor cross section / of the power line1,5 mm²
continuous current / of the power lines15 A; 40°C according to DIN VDE 0891-1 (17 A 20°C according to DIN VDE 0891-1)
mechanical data
number of electrical cores4
of inner conductor1,5 mm
of the wire insulation2,4 mm
of cable sheath7,6 mm
symmetrical tolerance of the outer diameter / of cable sheath0,2 mm
conductor class5
of the conductorCU, tin-coated
of the wire insulationPP
of cable sheathPVC/FEP; FEP transparent
property of the cable sheath / oil-resistantVar
product component / PE connectionYok
marking / of coresColor
of the power line insulationbrown / blue, white / black
of cable sheathgray
with single bend / minimum permissible30 mm
with multiple bends / minimum permissible61 mm
with continuous bending100 mm
number of bending cycles500000; acceleration 4 m/s²
number of torsion cycles / with torsion by ± 180° on 1 m cable length1000000
tensile load / maximum150 N
weight per length107 kg/km
plug
type of plug interlockscrewed
design of plug-in connectionM12-180
connector codingM12
connector coding / of the M12 circular connectorL-coded
ambient conditions
during operation-40... +90 °C
during storage-40... +90 °C
during transport-40... +90 °C
during installation-40... +90 °C
fire behaviorFlame-resistant acc. to IEC 60332-1-2
to mineral oiloil resistant according to DIN EN 60811-404 (7x24h/90°C)
to greaseresistant
to waterresistant
radiological resistance / to UV radiationresistant according to UL 2556 Sec. 4.2.8.5
protection class IPIP67/IP69
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar
certificate of suitabilityCMG FT4 75°C veya (ETL)us PLTC-ER SUN RES OIL RES I veya E502506-LFR AWM 22165 AWM I A/B 90°C 300V FT2
EAC approvalVar
RoHS conformityVar
for hygienic designEHEDG (cable material)
