Siemens 6XV1870-2F
Industrial Ethernet TP Torsion kablo, 2x2 (PROFINET tip C), TP installation kablo, 4-core, shielded Cat5e, için use in highly flexible applications (torsion), sold by the meter, teslimat uzunluk max. 1000 m, minimum order quantity 20 m.
product brand nameSIMATIC NET
wire lengthsold by the meter
at 10 MHz / maximum0,081 dB/m
at 100 MHz / maximum0,41 dB/m
at 1 MHz ... 100 MHz100 Ω
at 1 MHz ... 100 MHz0,5 dB/m
Ürün Hakkında
Industrial Ethernet TP Torsion kablo, 2x2 (PROFINET tip C), TP installation kablo, 4-core, shielded Cat5e, için use in highly flexible applications (torsion), sold by the meter, teslimat uzunluk max. 1000 m, minimum order quantity 20 m.
Siemens 6XV1870-2F
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useContinuous motion control when using robots
cable designationSF/UTP, 02YS C11Y 1x4x0,75/1,5-100 LI VZN FRNC GN
wire lengthsold by the meter
electrical data
at 10 MHz / maximum0,081 dB/m
at 100 MHz / maximum0,41 dB/m
at 1 MHz ... 100 MHz100 Ω
of the characteristic impedance at 1 MHz … 100 MHz5 %
at 1 MHz ... 100 MHz0,5 dB/m
transfer impedance per length / at 10 MHz100 mΩ/m
loop resistance per length / maximum120 mΩ/m
RMS value80 V
NVP value in percent77 %
mechanical data
number of electrical cores4

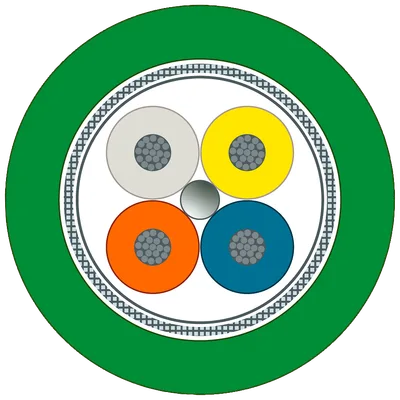

design of the shieldSF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires
type of electrical connection / FastConnectYok
of AWG22 insulated conductor0,76 mm
of inner conductor0,76 mm
of the wire insulation1,5 mm
of cable sheath6,5 mm
symmetrical tolerance of the outer diameter / of cable sheath0,2 mm
of the wire insulationpolyethylene (PE)
of cable sheathPUR (TPE-U)
of the insulation of data wireswhite/yellow/blue/orange
of cable sheathgreen
with single bend / minimum permissible32,5 mm
with multiple bends / minimum permissible65 mm
number of bending cyclesNot suitable for garland usage
number of torsion cycles / with torsion by ± 180° on 1 m cable length5000000
tensile load / maximum130 N
weight per length54 kg/km
ambient conditions
during operation-40... +80 °C
during storage-40... +80 °C
during transport-40... +80 °C
during installation-20... +60 °C
noteelectrical properties measured 20 °C
fire behaviorflame resistant according to IEC 60332-1-2
class of burning behaviour / according to EN 13501-6Eca
to mineral oiloil resistant according to IEC 60811-2-1 (7x24h/90°C)
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeVar
PoE capabilityVar
PoE+ capabilityVar
silicon-freeVar
with 100BaseTX75 m
at AC / core-to-core700 V
at AC / core shield700 V
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; UL Style 21161
UL/ETL style / 600 V RatingYok
EAC approvalVar
CE markingVar
RoHS conformityVar
standard for structured cablingCat5e
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
