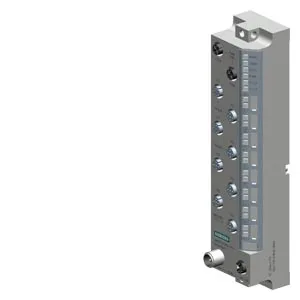

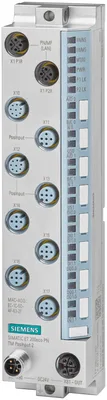

Siemens 6ES7147-6AB00-0BB0
ET 200eco PN TM PosInput 2, M12-L counting and position detection module for SSI absolute encoder, RS-422 incremental encoder, 24 V incremental encoder, 2 channels; 2 DI, 2 DQ per channel
Firmware sürümüV5.1.x
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Number of channels2
I&M dataVar; I&M0 to I&M3
Ürün Hakkında
ET 200eco PN TM PosInput 2, M12-L counting and position detection module for SSI absolute encoder, RS-422 incremental encoder, 24 V incremental encoder, 2 channels; 2 DI, 2 DQ per channel
Siemens 6ES7147-6AB00-0BB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Firmware sürümüV5.1.x
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Manufacturer ID according to ODVA (VendorID)04E3H
Device ID according to ODVA (Product code)0FAFH
Number of channels2
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeVar
IRTVar
Fast startupVar
Prioritized startupVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V18 veya üstü with HSP
PROFINET from GSD version/GSD revisionGSDML V2.4.x
Multi Fieldbus Configuration Tool (MFCT)V1.5 veya üstü
Besleme gerilimi
Nominal değer (DC)24 V
power supply according to NEC Class 2 requiredYok
Load voltage 1L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar; against destruction; encoder power supply outputs applied with reversed polarity, loads conduct
Load voltage 2L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar; against destruction
Giriş akımı
Akım tüketimi (nominal değer)100 mA; without load
from load voltage 1L+ (unswitched voltage)12 A; Maximum value
from load voltage 2L+, max.12 A; Maximum value
Encoder supply
Number of outputs4; 1 per encoder connection
24 V enkoder beslemesi
24 VVar; 1L+ (-0.8V)
Short-circuit protectionVar
Output current, max.300 mA; Per channel
Güç kaybı
Güç kaybı, tipik7,1 W
Address space per module
Inputs32 bayt
Outputs24 bayt; 8 bytes for Motion Control
Submodules
Number of configurable submodules, max.2
Dijital girişler
Dijital giriş sayısı4; 2 per channel
Digital inputs, parameterizableVar
Kaynak/çeken girişP-reading
Input characteristic curve in accordance with IEC 61131, type 3Var
Digital input functions, parameterizable
Gate start/stopVar; only for pulse ve incremental encoders
CaptureVar
SynchronizationVar; only for pulse ve incremental encoders
Freely usable digital inputVar
Giriş gerilimi
Type of input voltageDC
Nominal değer (DC)24 V
“0” sinyali için-5... +5 V
“1” sinyali için+11 to +30V
permissible voltage at input, min.-30 V; -5 V continuous, -30 V brief reverse polarity protection
permissible voltage at input, max.30 V
Giriş akımı
for signal "1", typ.2,5 mA
Standart girişler için
— ParametrelenebilirVar; yok / 0,05 / 0,1 / 0,4 / 0,8 / 1,6 / 3,2 / 12,8 / 20 ms
— “0”dan “1”e, min.6 µs; for parameterization "yok"
— at "1" to "0", min.6 µs; for parameterization "yok"
Teknolojik fonksiyonlar için
— ParametrelenebilirVar
Kablo uzunluğu
Ekranlı, maks.30 m
Ekransız, maks.30 m
Dijital çıkışlar
Type of digital outputTransistor
Dijital çıkış sayısı4; 2 per channel
Current-sourcingVar
Digital outputs, parameterizableVar
Short-circuit protectionVar; electronic/thermal
Response threshold, typ.1 A
Endüktif kapatma geriliminin sınırlandırılması2L+ (-39 V)
Controlling a digital inputVar
Digital output functions, parameterizable
Switching tripped by comparison valuesVar
Freely usable digital outputVar
Çıkışların anahtarlama kapasitesi
Omik yükte, maks.0,5 A; Per digital output
with inductive load, max.0,5 A
Load resistance range
lower limit48 Ω
upper limit12 kΩ
Çıkış gerilimi
Type of output voltageDC
“1” sinyali için, min.23,2 V; 2L+ (-0,8 V)
Çıkış akımı
“1” sinyali için nominal değer0,5 A
for signal "1" permissible range, max.0,6 A
for signal "1" minimum load current2 mA
“0” sinyali için artık akım, maks.0,5 mA
Omik yükte çıkış gecikmesi
“0”dan “1”e, maks.50 µs
“1”den “0”a, maks.50 µs
Parallel switching of two outputs
for upratingYok
Anahtarlama frekansı
Omik yükte, maks.10 kHz
with inductive load, max.0,5 Hz; According to IEC 60947-5-1, DC-13
Total current of the outputs
Current per module, max.2 A; Supply from 2L+
Kablo uzunluğu
Ekranlı, maks.30 m
Ekransız, maks.30 m
Encoder signals, incremental encoder (symmetrical)
Input voltageRS 422
Input frequency, max.1 MHz
Sayma frekansı, maks.4 MHz; with quadruple evaluation
Cable length, shielded, max.30 m
Signal filter, parameterizableVar
Incremental encoder with A/B tracks, 90° phase offsetVar
Incremental encoder with A/B tracks, 90° phase offset and zero trackVar
pulse encoderVar
Pulse encoder with directionVar
pulse encoder with one impulse signal per count directionVar
Encoder signals, incremental encoder (asymmetrical)
Input voltage24 V
Input frequency, max.200 kHz
Sayma frekansı, maks.800 kHz; with quadruple evaluation
Cable length, shielded, max.30 m
Signal filter, parameterizableVar
Incremental encoder with A/B tracks, 90° phase offsetVar
Incremental encoder with A/B tracks, 90° phase offset and zero trackVar
pulse encoderVar
pulse encoder with directionVar
pulse encoder with one impulse signal per count directionVar
Encoder signals, absolute encoder (SSI)
Input signalto RS-422
Telegram length, parameterizable10... 40 bit
Clock frequency, max.2 MHz; 125 kHz, 250 kHz, 500 kHz, 1 MHz, 1,5 MHz veya 2 MHz
Binary codeVar
Gray codeVar
Cable length, shielded, max.30 m; Up to 500 kHz
Parity bit, parameterizableVar
Monoflop time16, 32, 48, 64 µs & automatic
MultiturnVar
SingleturnVar
Arayüzler
Transmission procedure100BASE-TX
PROFINET arayüz sayısı1
1. Arayüz
Arayüz tipiPROFINET with 100 Mbit/s full duplex (100BASE-TX)
Arayüz tipleri
M12 portVar; 2x M12, 4-pin, D-coded
Port sayısı2
Dahili switchVar
Protokoller
PROFINET IO cihazıVar
Açık IE haberleşmesiVar
Servisler
— IRTVar; 500 µs to 4 ms an interval of 125 µs
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.2
M12 port
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
İletim hızı, maks.100 Mbit/s
Protokoller
PROFINET IO protokolünü desteklerVar
PROFIsafeYok
EtherNet/IPVar
Modbus TCPVar
Yedeklilik modu
PROFINET sistem yedekliliği (S2)Var
— on S7-1500R/HVar
— on S7-400HVar
PROFINET sistem yedekliliği (R1)Yok
H-Sync forwardingVar
Ortam yedekliliği
— MRPVar
— MRPDYok
Servisler
— CIP Implicit MessagingVar
— CIP Explicit MessagingVar
— CIP SafetyYok
— Paylaşımlı cihazVar; 2x EtherNet/IP Scanner
— Number of scanners with shared device, max.2
Updating times
— Requested Packet Interval (RPI)2 ms
Address area
— Address space per module, max.32 bayt
— LargeForwardOpen (Class3)Yok
Servisler
— read coils (code=1)Var
— read discrete inputs (code=2)Var
— Read Holding Registers (Code=3)Var
— write single coil (code=5)Var
— write multiple coils (code=15)Var
— Write Multiple Registers (Code=16)Var
— Parameter change by masterYok
— Modbus TCP Security ProtocolYok
Address space per station
— Address space per station, max.32 bayt
— Access-consistent address space2 bayt
Updating time
— I/O request interval2 ms
Connections
— number of connections per device12
Açık IE haberleşmesi
TCP/IPVar; (only EtherNet/IP veya Modbus TCP)
SNMPVar
LLDPVar
ARPVar
Isochronous mode
EquidistanceVar
shortest clock pulse500 µs
max. cycle4 ms
Interrupts/diagnostics/status information
Substitute values connectableVar
Alarms
Diagnostic alarmVar; Parameterizable
Maintenance interruptVar; Parameterizable
Hardware interruptYok
Diagnoses
Diagnostic information readableVar
Monitoring the supply voltageVar
— ParametrelenebilirVar
Wire breakVar
Short-circuitVar
Short-circuit encoder supplyVar
A/B transition error at incremental encoderVar
Telegram error at SSI encoderVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iVar; Yellow LED
NS LEDVar; green/red LED
MS LEDVar; green/red LED
IO LEDVar; red/green/yellow LEDs
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
For load voltage monitoringVar; green LED
Connection display LINK TX/RXVar; green LED, only link
Entegre fonksiyonlar
CounterVar
Sayıcı sayısı2
Sayma frekansı, maks.4 MHz; with quadruple evaluation
Fast modeYok
Counting functions
Can be used with TO High_Speed_CounterVar; only for pulse ve incremental encoders
Continuous countingVar
Counter response parameterizableVar
Hardware gate via digital inputVar
Software gateVar
Event-controlled stopVar
Synchronization via digital inputVar
Counting range, parameterizableVar
Comparator
— Number of comparators2; Per channel
— Direction dependencyVar
— Can be changed from user programVar
Position detection
Incremental acquisitionVar
Absolute acquisitionVar
Suitable for S7-1500 Motion ControlVar
Measuring functions
Measuring time, parameterizableVar
Dynamic measurement period adjustmentVar
Number of thresholds, parameterizable2
Measuring range
— Frequency measurement, min.0,04 Hz
— Frequency measurement, max.4 MHz
— Cycle duration measurement, min.0,25 µs
— Cycle duration measurement, max.25 s
Accuracy
— Frequency measurement100 ppm; depending on measuring interval ve signal evaluation
— Cycle duration measurement100 ppm; depending on measuring interval ve signal evaluation
— Velocity measurement100 ppm; depending on measuring interval ve signal evaluation
Potential separation
between the load voltagesVar
between Ethernet and electronicsVar
Potential separation channels
Kanallar arasıVar; DI channels are isolated from the DQ channels
tested with
24 V DC circuits707 V DC (type test)
Test voltage for interface, rms value [Vrms]1.500 V; According to IEEE 802,3
Koruma derecesi ve sınıfı
IP koruma sınıfıIP65/67/69K
Standartlar, onaylar, sertifikalar
Suitable for safety-related tripping of standard modulesVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]75 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]21,1 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]57,2 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-3.5 kg
Highest safety class achievable for safety-related tripping of standard modules
Performance level according to ISO 13849-1PL d
Category according to ISO 13849-1Cat. 3
SIL acc. to IEC 62061SIL 2
Security
signed firmware updateVar; V5.1.2 veya üstü
safely removing dataVar; V5.1.2 veya üstü
Çalışma ortam sıcaklığı
min.-40 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Ambient air temperature-barometric pressure-altitudeUp to maks. 5.000 m, installation height > 2.000 m additional restrictions
Connection method
Design of electrical connection4/5/8-pin M12 circular connectors
Design of electrical connection for the inputs and outputsM12, 5-pin, A-coded
Design of electrical connection for supply voltageM12, 4-pin, L-coded
Decentralized operation
to SIMATIC S7-300Var
to SIMATIC S7-400Var
to SIMATIC S7-1200Var
to SIMATIC S7-1500Var
to standard PROFIBUS masterYok
to standard PROFINET controllerVar
Ölçüler
Genişlik45 mm
Yükseklik200 mm
Derinlik48 mm
Ağırlık
Ağırlık, yaklaşık820 g
Aksesuarlar 97
Siemens 6ES7147-6AB00-0BB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7194-6GA00-0AA0 | Aksesuar · Mounting rail | |
| 6ES7194-6MA00-0AA0 | Aksesuar · Accessories | |
| 6ES7194-6KA00-0XA0 | Aksesuar · Cable | |
| 3RK1901-1KA00 | Aksesuar | |
| 3RK1901-1KA01 | Aksesuar | |
| 6ES7194-6KB01-0AA0 | Aksesuar · spare part | |
| 6ES7194-6KB00-0XA0 | Aksesuar · Cable | |
| 6ES7194-6KC00-0XA0 | Aksesuar · Cable | |
| 6GK1901-0DB20-6AA8 | Aksesuar | |
| 6GK1901-0DB10-6AA0 | Aksesuar | |
| 6GK1901-0DB10-6AA8 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1840-3AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2D | Aksesuar · Cables · network cable electrical | |
| 6XV1840-4AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2L | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2S | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH50 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-2HB30 | Aksesuar | |
| 3RK1902-2HB50 | Aksesuar | |
| 3RK1902-2HC10 | Aksesuar | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-4BA00-5AA0 | Aksesuar | |
| 3RK1902-4PB15-3AA0 | Aksesuar | |
| 6GT2891-4MN10 | Aksesuar · Cables · serial cable | |
| 3RK1902-4HB15-5AA0 | Aksesuar | |
| 3RK1902-4HB50-5AA0 | Aksesuar | |
| 3RK1902-4HC01-5AA0 | Aksesuar | |
| 6XV1801-2CE50 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH10 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH15 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH20 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH30 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH50 | Aksesuar · Cables · power cables | |
| 6XV1801-2CN10 | Aksesuar · Cables · power cables | |
| 6XV1801-2CN15 | Aksesuar · Cables · power cables | |
| 6GK1906-0EB00 | Aksesuar | |
| 6XV1801-2B | Aksesuar · Cables · power cables | |
| 6XV1801-6DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DE30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN15 | Aksesuar · Cables · power cables | |
| 6GK1907-0DC10-6AA3 | Aksesuar | |
| 6XV1801-6EE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6EN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6EN15 | Aksesuar · Cables · power cables | |
| 6ES7194-2BA00-0AA0 | Yedek parça · label |
İlgili Ürünler
Detayları Gör
Siemens
1FE2114-8CE..-2..2
MFR #1FE2114-8CE..-2..2
SKU #YLSUWT1ETKU9FMT
Detayları Gör
Siemens
1FE2114-8CE..-3..2
MFR #1FE2114-8CE..-3..2
SKU #YLS8AW0VFQV8
Detayları Gör
Siemens
1FE2114-8CJ..-1..1
MFR #1FE2114-8CJ..-1..1
SKU #YLSKSVUCBCB2EQI
Detayları Gör
Siemens
1FE2114-8CJ..-2..1
MFR #1FE2114-8CJ..-2..1
SKU #YLSFQDPJCT7TBJ
Detayları Gör
Siemens
1FE2114-8CJ..-3..1
MFR #1FE2114-8CJ..-3..1
SKU #YLS49QDSER2013
Detayları Gör
Siemens
1FE2116-8AE..-1..2
MFR #1FE2116-8AE..-1..2
SKU #YLSPXKOEOTFAT9H
Detayları Gör
Siemens
1FE2116-8AE..-2..2
MFR #1FE2116-8AE..-2..2
SKU #YLSG5MN6EV74Q0
Detayları Gör
Siemens
1FE2116-8AE..-3..2
MFR #1FE2116-8AE..-3..2
SKU #YLSXKJ14Y7QHGNO
Detayları Gör
Siemens
1FE2116-8AM..-1..1
MFR #1FE2116-8AM..-1..1
SKU #YLSBTAWLTWIHBF
Öne Çıkan Ürünler
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
İlgili Aramalar
Siemens 6ES7147-6AB00-0BB0 fiyatSiemens 6ES7147-6AB00-0BB0 teklif alSiemens 6ES7147-6AB00-0BB0 satın al6ES7147-6AB00-0BB0 fiyat6ES7147-6AB00-0BB0 stok durumuSiemens yedek parçaSiemens 6ES7147-6AB00-0BB0 muadilSiemens 6ES7147-6AB00-0BB0 teknik özellikler
