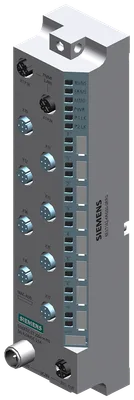

Siemens 6ES7142-6BG00-0BB0
SIMATIC ET 200eco PN, DQ 8x 24 V DC/0,5 A, M12-L, 8x M12, single ve double assignment, source çıkış (PNP,anahtarlama to P potential), substitute value çıkış, channel diagnostics için wire break ve short-circuit at the çıkış, shared cihaz ile 2 controllers, 0,25 ms isochronous mode, prioritized startup, MSO, MRP, S2 redundancy, I&M0...3, multi-fieldbus, PN IO, Ethernet IP, Modbus TCP, koruma sınıfı IP67 / IP69K
HW functional statusFS06
Firmware sürümüV5.1.x
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
I&M dataVar; I&M0 to I&M3
Ürün Hakkında
SIMATIC ET 200eco PN, DQ 8x 24 V DC/0,5 A, M12-L, 8x M12, single ve double assignment, source çıkış (PNP,anahtarlama to P potential), substitute value çıkış, channel diagnostics için wire break ve short-circuit at the çıkış, shared cihaz ile 2 controllers, 0,25 ms isochronous mode, prioritized startup, MSO, MRP, S2 redundancy, I&M0...3, multi-fieldbus, PN IO, Ethernet IP, Modbus TCP, koruma sınıfı IP67 / IP69K
Siemens 6ES7142-6BG00-0BB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
HW functional statusFS06
Firmware sürümüV5.1.x
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Manufacturer ID according to ODVA (VendorID)04E3H
Device ID according to ODVA (Product code)0FA6H
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeVar
IRTVar
Prioritized startupVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V17 veya üstü with HSP 0363
PROFINET from GSD version/GSD revisionGSDML V2.4.x
Multi Fieldbus Configuration Tool (MFCT)from V1.3 SP1
Operating mode
DQVar
MSOVar
Besleme gerilimi
power supply according to NEC Class 2 requiredYok
Load voltage 1L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Load voltage 2L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar; against destruction; load increasing
Giriş akımı
Akım tüketimi (nominal değer)65 mA; without load
from load voltage 1L+ (unswitched voltage)12 A; Maximum value
from load voltage 2L+, max.12 A; Maximum value
Güç kaybı
Güç kaybı, tipik7 W
Address space per module
Inputs1 bayt for QI information
Outputs1 bayt
Submodules
Number of configurable submodules, max.2
Dijital çıkışlar
Dijital çıkış sayısı8
Current-sourcingVar
output type acc. to IEC 61131, type 0.5Var
Short-circuit protectionVar; per channel, electronic
Response threshold, typ.1 A
Endüktif kapatma geriliminin sınırlandırılmasıTyp. 2L+ (-52 V)
Controlling a digital inputVar
Çıkışların anahtarlama kapasitesi
Omik yükte, maks.0,5 A
with inductive load, max.0,5 A
Lamba yükünde, maks.5 W
Load resistance range
lower limit48 Ω
upper limit4 kΩ
Çıkış gerilimi
“1” sinyali için, min.2L+ (-0,8 V)
Çıkış akımı
“1” sinyali için nominal değer0,5 A
for signal "1" permissible range, max.0,5 A
“0” sinyali için artık akım, maks.0,1 mA
Omik yükte çıkış gecikmesi
“0”dan “1”e, maks.50 µs; rated load
“1”den “0”a, maks.100 µs; rated load
Parallel switching of two outputs
for upratingYok
for redundant control of a loadVar
Anahtarlama frekansı
Omik yükte, maks.100 Hz
with inductive load, max.0,5 Hz
Lamba yükünde, maks.1 Hz
Total current of the outputs
Current per module, max.4 A
Kablo uzunluğu
Ekransız, maks.30 m
Arayüzler
Transmission procedure100BASE-TX
PROFINET arayüz sayısı1
1. Arayüz
Arayüz tipiPROFINET with 100 Mbit/s full duplex (100BASE-TX)
Arayüz tipleri
M12 portVar; 2x M12, 4-pin, D-coded
Port sayısı2
Dahili switchVar
Protokoller
PROFINET IO DeviceVar
Açık IE haberleşmesiVar
Servisler
— IRTVar; 250 µs to 4 ms in 125 µs frame
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.2
M12 port
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
İletim hızı, maks.100 Mbit/s
Protokoller
PROFINET IO protokolünü desteklerVar
PROFIsafeYok
EtherNet/IPVar
Modbus TCPVar
Yedeklilik modu
PROFINET sistem yedekliliği (S2)Var
— on S7-1500R/HVar
— on S7-400HVar
PROFINET sistem yedekliliği (R1)Yok
H-Sync forwardingVar
Ortam yedekliliği
— MRPVar
— MRPDYok
Servisler
— CIP Implicit MessagingVar
— CIP Explicit MessagingVar
— CIP SafetyYok
— Paylaşımlı cihazVar; 2x EtherNet/IP Scanner
— Number of scanners with shared device, max.2
Updating times
— Requested Packet Interval (RPI)2 ms
Yedeklilik modu
— DLR (Device Level Ring)Yok
Address area
— Address space per module, max.20 bayt
— LargeForwardOpen (Class3)Yok
Servisler
— read coils (code=1)Var
— read discrete inputs (code=2)Var
— Read Holding Registers (Code=3)Var
— write single coil (code=5)Var
— write multiple coils (code=15)Var
— Write Multiple Registers (Code=16)Var
— Parameter change by masterYok
— Modbus TCP Security ProtocolYok
Address space per station
— Address space per station, max.20 bayt
— Access-consistent address space2 bayt
Updating time
— I/O request interval2 ms
Connections
— number of connections per device12
Açık IE haberleşmesi
TCP/IPVar; (only EtherNet/IP veya Modbus TCP)
SNMPVar
LLDPVar
ARPVar
Isochronous mode
EquidistanceVar
shortest clock pulse250 µs
max. cycle4 ms
Jitter, max.10 µs
Interrupts/diagnostics/status information
Substitute values connectableVar
Alarms
Diagnostic alarmVar; Parameterizable
Maintenance interruptVar; Parameterizable
Diagnoses
Diagnostic information readableVar
Monitoring the supply voltageVar
— ParametrelenebilirVar
Wire breakVar
Short-circuitVar; Outputs to M; channel by channel
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iVar; Yellow LED
NS LEDVar; green/red LED
MS LEDVar; green/red LED
IO LEDVar; red/green/yellow LEDs
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
For load voltage monitoringVar; green LED
Connection display LINK TX/RXVar; green LED, only link
Potential separation
between the load voltagesVar
between Ethernet and electronicsVar
Potential separation channels
Kanallar arasıYok
between the channels and the power supply of the electronicsVar
tested with
24 V DC circuits707 V DC (type test)
Test voltage for interface, rms value [Vrms]1.500 V; According to IEEE 802,3
Koruma derecesi ve sınıfı
IP koruma sınıfıIP65/67/69K
Standartlar, onaylar, sertifikalar
Suitable for safety-related tripping of standard modulesVar; From FS02
Highest safety class achievable for safety-related tripping of standard modules
Performance level according to ISO 13849-1PL d
Category according to ISO 13849-1Cat. 3
SIL acc. to IEC 62061SIL 2
Use in hazardous areas
Explosion protection category for gasATEX, UKEX, IECEx, CCCEx for Zone 2
Explosion protection category for dustATEX, UKEX, IECEx, CCCEx for Zone 22
Security
signed firmware updateVar
securely removing dataVar
Çalışma ortam sıcaklığı
min.-40 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Ambient air temperature-barometric pressure-altitudeUp to maks. 5.000 m, installation height > 2.000 m additional restrictions
Connection method
Design of electrical connection4/5-pin M12 circular connectors
Design of electrical connection for the inputs and outputsM12, 5-pin, A-coded
Design of electrical connection for supply voltageM12, 4-pin, L-coded
Ölçüler
Genişlik45 mm
Yükseklik200 mm
Derinlik48 mm
Ağırlık
Ağırlık, yaklaşık780 g
Aksesuarlar 99
Siemens 6ES7142-6BG00-0BB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7194-6GA00-0AA0 | Aksesuar · Mounting rail | |
| 6ES7194-6MA00-0AA0 | Aksesuar · Accessories | |
| 6ES7194-6KA00-0XA0 | Aksesuar · Cable | |
| 6ES7194-1KA01-0XA0 | Aksesuar · Accessories | |
| 3RK1901-1KA00 | Aksesuar | |
| 3RK1901-1KA01 | Aksesuar | |
| 6GK1901-0DB20-6AA0 | Aksesuar | |
| 6GK1901-0DB20-6AA8 | Aksesuar | |
| 6GK1901-0DB10-6AA0 | Aksesuar | |
| 6GK1901-0DB10-6AA8 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1840-3AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2D | Aksesuar · Cables · network cable electrical | |
| 6XV1840-4AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2L | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2S | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH50 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-2HB30 | Aksesuar | |
| 3RK1902-2HB50 | Aksesuar | |
| 3RK1902-2HC10 | Aksesuar | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-4BA00-5AA0 | Aksesuar | |
| 3RK1902-4DA00-5AA0 | Aksesuar | |
| 6XV1801-2C | Aksesuar · Cables · power cables | |
| 3RK1902-4PB15-3AA0 | Aksesuar | |
| 6GT2891-4MH50 | Aksesuar · Cables · serial cable | |
| 6GT2891-4MN10 | Aksesuar · Cables · serial cable | |
| 3RK1902-4HB15-5AA0 | Aksesuar | |
| 3RK1902-4HB50-5AA0 | Aksesuar | |
| 3RK1902-4HC01-5AA0 | Aksesuar | |
| 6XV1801-2CE50 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH10 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH15 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH20 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH30 | Aksesuar · Cables · power cables | |
| 6XV1801-2CH50 | Aksesuar · Cables · power cables | |
| 6XV1801-2CN10 | Aksesuar · Cables · power cables | |
| 6XV1801-2CN15 | Aksesuar · Cables · power cables | |
| 6GK1906-0EB00 | Aksesuar | |
| 6XV1801-2B | Aksesuar · Cables · power cables | |
| 6XV1801-6DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DE30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN15 | Aksesuar · Cables · power cables | |
| 6GK1906-0EA00 | Aksesuar | |
| 6XV1801-6EE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6EH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6EN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6EN15 | Aksesuar · Cables · power cables | |
| 6ES7194-2BA00-0AA0 | Yedek parça · label |
İlgili Ürünler
Detayları Gör
Siemens
1FN3003-0PB03-0AA3
MFR #1FN3003-0PB03-0AA3
SKU #YLSPDCXX5LUPVBP
Detayları Gör
Siemens
1FN3003-0PB04-0BA3
MFR #1FN3003-0PB04-0BA3
SKU #YLSTLFTLVCKOIMT
Detayları Gör
Siemens
1FN3003-0PB05-0BA3
MFR #1FN3003-0PB05-0BA3
SKU #YLS6EWIJX1ZRGHO
Detayları Gör
Siemens
1FN3050-0TB00-1..0
MFR #1FN3050-0TB00-1..0
SKU #YLS5YVWHSMU6WB7
Detayları Gör
Siemens
1FN3050-2NE00-0EA3
MFR #1FN3050-2NE00-0EA3
SKU #YLSE7XSY2HLF5EC
Detayları Gör
Siemens
1FN3050-2NE00-0FA3
MFR #1FN3050-2NE00-0FA3
SKU #YLSMSUG5AP3INVD
Detayları Gör
Siemens
1FN3100-0TB00-1..0
MFR #1FN3100-0TB00-1..0
SKU #YLSTD7J4JZ8UCBX
Detayları Gör
Siemens
1FN3002-0TK03-1AF0
MFR #1FN3002-0TK03-1AF0
SKU #YLS7VTGYJAP381B
Detayları Gör
Siemens
1FN3050-1ND00-0HA3
MFR #1FN3050-1ND00-0HA3
SKU #YLSJTX7SVU4GFKR
Öne Çıkan Ürünler
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
İlgili Aramalar
Siemens 6ES7142-6BG00-0BB0 fiyatSiemens 6ES7142-6BG00-0BB0 teklif alSiemens 6ES7142-6BG00-0BB0 satın al6ES7142-6BG00-0BB0 fiyat6ES7142-6BG00-0BB0 stok durumuSiemens yedek parçaSiemens 6ES7142-6BG00-0BB0 muadilSiemens 6ES7142-6BG00-0BB0 teknik özellikler
