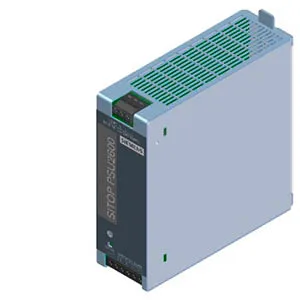

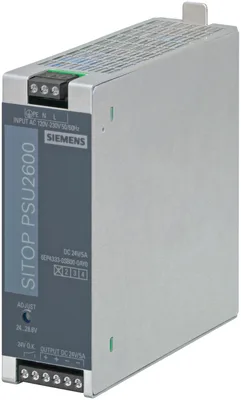

Siemens 6EP4333-0SB00-0AY0
SITOP PSU2600 24 V/5 A Stabilized güç kaynağı giriş: 230 V AC çıkış: 24 V DC/5 A
product brand nameSITOP
product type designationPSU2600
type of current supply24 V/5 A
type of the power supply network1-phase AC veya DC
phase number1
voltage curve at inputAC/DC
Ürün Hakkında
SITOP PSU2600 24 V/5 A Stabilized güç kaynağı giriş: 230 V AC çıkış: 24 V DC/5 A
Siemens 6EP4333-0SB00-0AY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSU2600
type of current supply24 V/5 A
input
type of the power supply network1-phase AC veya DC
phase number1
voltage curve at inputAC/DC
minimum rated value120 V
maximum rated value230 V
initial value85 V
full-scale value264 V
supply voltage at DC110... 220 V
input voltage at DC88... 265 V
at 50 Hz230 V
at 60 Hz120 V
line frequency50/60 Hz
line frequency47... 63 Hz
wide range inputVar
buffering time for rated value of the output current in the event of power failure minimum30 ms
operating condition of the mains bufferingVin = 230 V
at rated input voltage 120 V2,5 A
at rated input voltage 230 V1,4 A
current limitation of inrush current at 25 °C maximum36 A
fuse protection type3,15 A
fuse protection type in the feederYok required. Fuse protection starting from 6 A Char. C possible
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
output voltage at DC rated value24 V
at output 1 at DC rated value24 V
at output 1 at DC24 V
output voltage adjustableVar; via potentiometer
adjustable output voltage24... 28,8 V; maks. 120 W
relative overall tolerance of the voltage3 %
on slow fluctuation of input voltage0,1 %
on slow fluctuation of ohm loading0,2 %
maximum50 mV
maximum200 mV
display version for normal operationGreen LED for 24 V OK
type of signal at outputRelay contact (NO contact, rating 60 V DC/ 0,3 A) for "24 V OK"
behavior of the output voltage when switching onYok overshoot of Vout (soft start)
response delay maximum1 s
maximum500 ms
rated value5 A
rated range0... 5 A; +60 °C
supplied active power typical120 W
on short-circuiting during the start-up typical6 A
bridging of equipmentYok
efficiency
efficiency in percent89 %
at rated output voltage for rated value of the output current typical15 W
during no-load operation maximum1 W
closed-loop control
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,1 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical1 %
load step 50 to 100% typical0,2 ms
load step 100 to 50% typical0,2 ms
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical2 %
load step 10 to 90% typical0,2 ms
load step 90 to 10% typical0,2 ms
maximum10 ms
protection and monitoring
design of the overvoltage protection< 32 V
property of the output short-circuit proofVar
design of short-circuit protectionShutdown ve periodic restart attempts
typical6 A
typical6 A
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV
operating resource protection classClass I
maximum3,5 mA
typical1,1 mA
protection class IPIP20
EMC
for emitted interferenceEN 55022 Class B
for mains harmonics limitationEN 61000-3-2
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
EAC approvalVar
NEC Class 2Yok
BISVar; in preparation
CB-certificateVar
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalYok
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Lloyds Register of Shipping (LRS)Yok
ambient conditions
during operation0... 60 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

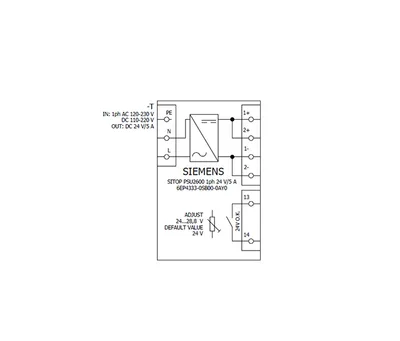

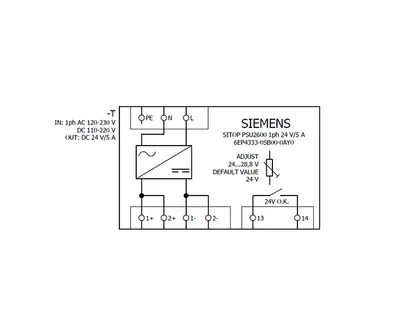

connection method
type of electrical connectionscrew terminal
at inputL1, N, PE: 1 screw terminal her biri for 0,2... 2,5 mm² single-core/finely stranded
at output+, -: 2 screw terminals her biri for 0,2... 2,5 mm²
for auxiliary contacts13, 14 (alarm signal): 1 screw terminal her biri for 0,05... 2,5 mm²
mechanical data

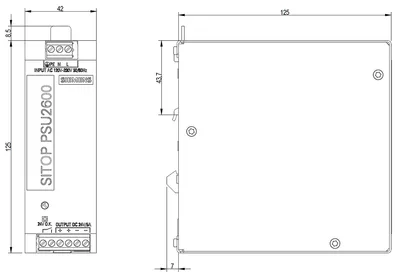

width × height × depth of the enclosure42 × 125 × 125 mm
installation width × mounting height42 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,6 kg
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Aksesuarlar 9
Siemens 6EP4333-0SB00-0AY0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6EP4134-0JA00-0AY0 | Aksesuar · Battery module | |
| 6EP4135-0GE00-0AY0 | Aksesuar · Battery module | |
| 6EP4137-0GE00-0AY0 | Aksesuar · Battery module | |
| 6EP4134-0HA00-0AY0 | Aksesuar · Capacitor module · #NO_DATA# | |
| 6EP4135-0HA00-0AY0 | Aksesuar · Capacitor module · #NO_DATA# | |
| 6EP4136-0HA00-0AY0 | Aksesuar · Capacitor module · #NO_DATA# | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 6EP4134-0JA00-0AY0-Z | Aksesuar | |
| 6EP4134-0GB00-0AY0 | Aksesuar · Battery module |
